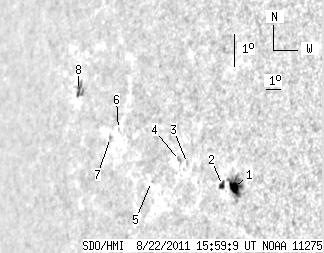

SDO HMI 2011-08-22 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.14 | 45.57 | 11.44 | 48.17 | 7.80 | 347.38 | -62.63 | 84.83 | 0.8820 | -313.4 | -186.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.93 | 24.17 | 5.54 | 22.51 | 7.26 | 351.51 | -58.49 | 85.74 | 0.8502 | -780.8 | -534.4 | |
| 3.14 | 4.22 | 3.00 | 4.02 | 7.26 | 350.86 | -59.15 | 85.70 | 0.8561 | -337.5 | -217.2 | |
| 0.00 | 1.71 | 0.00 | 1.74 | 7.69 | 348.58 | -61.43 | 85.03 | 0.8755 | -538.0 | -430.7 | |
| 0.00 | 2.52 | 0.00 | 2.61 | 7.73 | 348.05 | -61.96 | 84.95 | 0.8799 | -528.0 | -351.5 | |
| 0.00 | 1.08 | 0.00 | 1.18 | 6.91 | 346.37 | -63.64 | 85.75 | 0.8938 | -293.0 | -259.2 | |
| 0.00 | 0.72 | 0.00 | 0.87 | 8.20 | 343.58 | -66.43 | 84.10 | 0.9137 | 293.0 | 253.0 | |
| 0.00 | 1.89 | 0.00 | 2.33 | 7.89 | 343.05 | -66.95 | 84.39 | 0.9176 | 335.0 | 220.0 | |
| 2.07 | 9.26 | 2.90 | 12.91 | 8.99 | 339.92 | -70.09 | 82.97 | 0.9372 | 316.2 | 367.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
