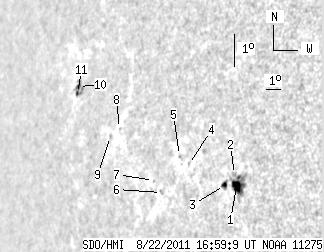

SDO HMI 2011-08-22 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.05 | 45.20 | 12.28 | 46.92 | 7.77 | 347.42 | -62.04 | 84.91 | 0.8772 | -286.0 | -182.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.74 | 22.82 | 6.20 | 20.91 | 7.26 | 351.55 | -57.90 | 85.79 | 0.8447 | -795.6 | -542.5 | |
| 0.00 | 1.53 | 0.00 | 1.41 | 7.61 | 351.36 | -58.09 | 85.36 | 0.8463 | -105.0 | -123.9 | |
| 2.70 | 4.31 | 2.53 | 4.04 | 7.22 | 350.86 | -58.60 | 85.78 | 0.8511 | -309.5 | -314.9 | |
| 0.00 | 1.17 | 0.00 | 1.17 | 7.63 | 348.56 | -60.89 | 85.15 | 0.8711 | -547.0 | -472.5 | |
| 0.00 | 1.08 | 0.00 | 1.10 | 7.84 | 347.93 | -61.52 | 84.86 | 0.8762 | -377.0 | -237.6 | |
| 0.00 | 1.89 | 0.00 | 1.99 | 6.61 | 347.05 | -62.41 | 86.18 | 0.8842 | -429.0 | -295.8 | |
| 0.00 | 0.72 | 0.00 | 0.77 | 6.91 | 346.44 | -63.02 | 85.79 | 0.8889 | -342.0 | -275.0 | |
| 0.00 | 0.90 | 0.00 | 1.06 | 8.20 | 343.65 | -65.81 | 84.14 | 0.9093 | 392.0 | 346.7 | |
| 0.00 | 1.44 | 0.00 | 1.74 | 7.89 | 343.06 | -66.40 | 84.44 | 0.9137 | 348.0 | 251.2 | |
| 1.53 | 9.34 | 2.08 | 12.73 | 9.08 | 339.97 | -69.49 | 82.91 | 0.9335 | 431.5 | 342.1 | |
| 1.08 | -10.00 | 1.47 | -10.00 | 8.87 | 339.97 | -69.48 | 83.14 | 0.9336 | 247.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
