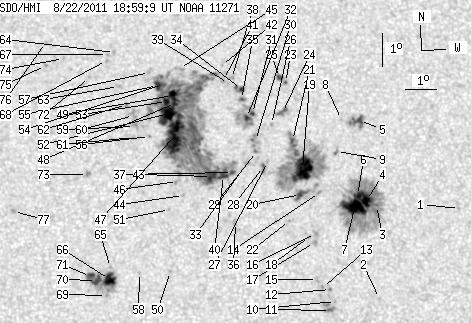

SDO HMI 2011-08-22 18:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 199.89 | 1021.57 | 103.12 | 527.54 | 17.63 | 60.60 | 12.25 | 313.42 | 0.2803 | -83.0 | -42.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 18:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.48 | 15.87 | 67.69 | 19.35 | 296.91 | 0.3589 | -637.0 | -465.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 13.22 | 64.84 | 16.49 | 292.44 | 0.3003 | -811.0 | -613.0 | |
| 0.99 | 173.47 | 0.52 | 90.48 | 16.06 | 64.96 | 16.61 | 300.73 | 0.3210 | -218.0 | -409.2 | |
| 8.08 | -3.00 | 4.22 | -3.00 | 16.22 | 64.65 | 16.30 | 301.63 | 0.3178 | -1168.8 | 999999 | |
| 4.67 | 14.55 | 2.46 | 7.65 | 18.69 | 64.64 | 16.29 | 308.08 | 0.3391 | 900.1 | 797.1 | |
| 5.12 | -3.00 | 2.67 | -3.00 | 16.39 | 64.36 | 16.02 | 302.49 | 0.3152 | -1080.2 | 999999 | |
| 22.82 | -3.00 | 11.89 | -3.00 | 16.02 | 64.23 | 15.89 | 301.66 | 0.3105 | -1377.9 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 18.74 | 64.05 | 15.70 | 309.17 | 0.3320 | 809.0 | 576.2 | |
| 0.00 | 2.34 | 0.00 | 1.22 | 17.76 | 63.79 | 15.44 | 307.11 | 0.3194 | -765.0 | -581.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 13.17 | 63.41 | 15.06 | 293.97 | 0.2782 | -747.0 | -649.6 | |
| 1.62 | 8.00 | 0.83 | 4.12 | 12.90 | 63.23 | 14.89 | 293.28 | 0.2738 | -1045.6 | -871.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 13.54 | 63.27 | 14.93 | 295.39 | 0.2784 | -1020.0 | -871.3 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 13.61 | 63.02 | 14.67 | 295.97 | 0.2750 | -980.0 | -781.2 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 16.52 | 63.13 | 14.78 | 304.83 | 0.2993 | -834.0 | -678.4 | |
| 0.00 | 2.16 | 0.00 | 1.11 | 13.86 | 62.87 | 14.53 | 297.01 | 0.2746 | -754.0 | -730.0 | |
| 0.00 | 2.78 | 0.00 | 1.44 | 15.26 | 62.90 | 14.56 | 301.48 | 0.2856 | -869.0 | -734.5 | |
| 0.00 | 2.43 | 0.00 | 1.25 | 14.99 | 62.85 | 14.51 | 300.71 | 0.2827 | -1069.0 | -856.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 15.18 | 62.70 | 14.36 | 301.54 | 0.2820 | -919.0 | -710.4 | |
| 33.06 | 160.71 | 17.16 | 83.43 | 17.27 | 62.63 | 14.28 | 307.82 | 0.2996 | -1270.6 | -463.2 | |
| 6.11 | 15.72 | 3.16 | 8.14 | 16.47 | 62.50 | 14.16 | 305.79 | 0.2904 | -1113.8 | -800.9 | |
| 1.89 | -19.00 | 0.98 | -19.00 | 18.14 | 62.37 | 14.03 | 310.64 | 0.3049 | -930.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 15.69 | 62.09 | 13.74 | 304.19 | 0.2777 | -855.0 | -663.1 | |
| 0.99 | 5.21 | 0.52 | 2.73 | 19.95 | 62.30 | 13.95 | 315.22 | 0.3231 | -901.9 | -838.1 | |
| 0.00 | 6.65 | 0.00 | 3.46 | 19.02 | 62.12 | 13.77 | 313.36 | 0.3109 | -1119.0 | -826.2 | |
| 3.14 | -23.00 | 1.64 | -23.00 | 20.11 | 62.11 | 13.77 | 315.95 | 0.3228 | -930.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 18.66 | 61.72 | 13.38 | 313.24 | 0.3022 | -1024.0 | -817.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 17.52 | 61.51 | 13.16 | 310.68 | 0.2875 | -828.0 | -671.0 | |
| 1.26 | 3.95 | 0.65 | 2.04 | 17.37 | 61.36 | 13.02 | 310.55 | 0.2842 | -951.2 | -955.0 | |
| 0.00 | 2.25 | 0.00 | 1.16 | 17.84 | 61.17 | 12.82 | 312.24 | 0.2866 | -1299.0 | -930.5 | |
| 0.00 | 7.01 | 0.00 | 3.63 | 18.18 | 61.16 | 12.82 | 313.17 | 0.2902 | -911.0 | -916.6 | |
| 1.62 | 32.79 | 0.84 | 16.99 | 19.01 | 61.13 | 12.78 | 315.38 | 0.2991 | -937.5 | -508.5 | |
| 3.23 | -31.00 | 1.68 | -31.00 | 18.89 | 60.92 | 12.57 | 315.53 | 0.2953 | -1184.5 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 17.47 | 60.82 | 12.47 | 312.01 | 0.2784 | -990.0 | -787.4 | |
| 1.98 | 6.11 | 1.03 | 3.17 | 19.77 | 60.83 | 12.48 | 317.85 | 0.3043 | -1046.6 | -869.5 | |
| 0.99 | 2.52 | 0.51 | 1.31 | 19.46 | 60.80 | 12.45 | 317.17 | 0.3004 | -924.4 | -701.1 | |
| 0.00 | 2.69 | 0.00 | 1.38 | 15.67 | 60.35 | 12.00 | 307.63 | 0.2539 | 740.0 | 602.8 | |
| 2.07 | 466.05 | 1.06 | 239.76 | 17.21 | 60.35 | 12.00 | 312.31 | 0.2697 | -938.0 | 265.9 | |
| 0.00 | 2.43 | 0.00 | 1.26 | 20.12 | 60.52 | 12.18 | 319.33 | 0.3052 | -773.0 | -668.4 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 19.96 | 60.41 | 12.07 | 319.23 | 0.3022 | -938.0 | -719.7 | |
| 6.20 | -37.00 | 3.18 | -37.00 | 17.12 | 60.05 | 11.70 | 312.75 | 0.2651 | -1053.7 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.21 | 20.09 | 60.26 | 11.91 | 319.87 | 0.3021 | -745.0 | -721.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 20.53 | 60.23 | 11.88 | 320.92 | 0.3071 | -460.0 | -395.1 | |
| 8.98 | -37.00 | 4.61 | -37.00 | 17.10 | 59.66 | 11.31 | 313.62 | 0.2601 | -780.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 16.54 | 58.72 | 10.38 | 314.31 | 0.2424 | 855.0 | 672.3 | |
| 0.00 | 3.50 | 0.00 | 1.81 | 20.47 | 58.84 | 10.49 | 324.12 | 0.2923 | -728.0 | -523.6 | |
| 0.00 | 2.96 | 0.00 | 1.51 | 16.97 | 58.55 | 10.21 | 316.08 | 0.2454 | 836.0 | 760.4 | |
| 36.38 | -37.00 | 18.67 | -37.00 | 18.39 | 58.54 | 10.19 | 320.03 | 0.2625 | 1303.6 | 999999 | |
| 1.62 | -37.00 | 0.83 | -37.00 | 19.38 | 58.60 | 10.25 | 322.30 | 0.2758 | 1123.2 | 999999 | |
| 5.57 | -37.00 | 2.87 | -37.00 | 19.63 | 58.55 | 10.20 | 323.01 | 0.2785 | 1227.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 14.22 | 58.19 | 9.85 | 307.75 | 0.2106 | -810.0 | -564.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 16.12 | 58.25 | 9.90 | 314.28 | 0.2319 | 960.0 | 761.5 | |
| 11.50 | -37.00 | 5.91 | -37.00 | 19.08 | 58.38 | 10.04 | 322.15 | 0.2696 | 1366.6 | 999999 | |
| 3.59 | -37.00 | 1.85 | -37.00 | 19.45 | 58.34 | 10.00 | 323.14 | 0.2740 | 1038.0 | 999999 | |
| 1.35 | -37.00 | 0.70 | -37.00 | 19.98 | 58.25 | 9.90 | 324.60 | 0.2801 | -190.5 | 999999 | |
| 5.39 | -37.00 | 2.78 | -37.00 | 19.95 | 58.08 | 9.73 | 324.98 | 0.2781 | 808.7 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 18.38 | 57.73 | 9.38 | 322.25 | 0.2538 | 1017.0 | 785.4 | |
| 0.00 | 0.63 | 0.00 | 0.32 | 20.36 | 57.84 | 9.50 | 326.49 | 0.2814 | 893.0 | 736.3 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 14.21 | 57.21 | 8.86 | 310.56 | 0.1975 | 809.0 | 713.9 | |
| 0.00 | 3.32 | 0.00 | 1.70 | 18.69 | 57.26 | 8.91 | 324.41 | 0.2533 | 683.0 | 845.8 | |
| 0.00 | 5.12 | 0.00 | 2.62 | 19.04 | 57.24 | 8.90 | 325.27 | 0.2578 | 771.0 | 789.1 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 18.35 | 57.21 | 8.86 | 323.73 | 0.2482 | 878.0 | 743.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 19.38 | 57.04 | 8.69 | 326.67 | 0.2605 | 891.0 | 814.0 | |
| 0.00 | 3.23 | 0.00 | 1.66 | 19.94 | 56.81 | 8.46 | 328.56 | 0.2663 | 975.0 | 610.1 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 21.01 | 56.73 | 8.39 | 330.86 | 0.2808 | 805.0 | 625.7 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 14.37 | 56.30 | 7.95 | 314.23 | 0.1879 | 775.0 | 524.5 | |
| 9.79 | 39.35 | 4.93 | 19.81 | 14.01 | 56.26 | 7.91 | 312.92 | 0.1831 | 1190.2 | 715.4 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 20.95 | 56.50 | 8.15 | 331.42 | 0.2781 | 807.0 | 612.1 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 20.76 | 56.46 | 8.11 | 331.20 | 0.2751 | 877.0 | 681.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 13.52 | 56.15 | 7.80 | 311.25 | 0.1763 | 469.0 | 382.6 | |
| 5.21 | -66.00 | 2.62 | -66.00 | 13.98 | 55.85 | 7.50 | 314.31 | 0.1778 | 1213.6 | 999999 | |
| 4.67 | -66.00 | 2.35 | -66.00 | 14.11 | 55.66 | 7.31 | 315.52 | 0.1770 | 1030.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 20.24 | 55.88 | 7.53 | 331.98 | 0.2628 | 810.0 | 615.1 | |
| 0.00 | 3.86 | 0.00 | 1.96 | 17.24 | 55.68 | 7.33 | 325.85 | 0.2181 | 1030.0 | 769.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 20.84 | 55.06 | 6.71 | 335.63 | 0.2658 | 832.0 | 671.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 20.63 | 54.46 | 6.11 | 337.22 | 0.2586 | 875.0 | 758.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 21.35 | 54.49 | 6.14 | 338.22 | 0.2699 | 726.0 | 596.4 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 16.13 | 53.29 | 4.94 | 332.67 | 0.1810 | 926.0 | 790.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
