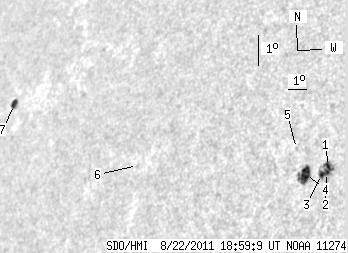

SDO HMI 2011-08-22 18:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.20 | 41.06 | 17.42 | 32.10 | 18.87 | 357.95 | -50.40 | 70.98 | 0.7672 | -463.5 | -400.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 18:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.25 | 15.63 | 1.61 | 11.21 | 19.01 | 2.38 | -45.97 | 70.25 | 0.7245 | -912.4 | -707.1 | |
| 1.62 | -1.00 | 1.16 | -1.00 | 18.82 | 2.36 | -45.99 | 70.52 | 0.7244 | -1014.1 | 999999 | |
| 2.43 | -1.00 | 1.74 | -1.00 | 18.74 | 2.15 | -46.19 | 70.67 | 0.7266 | -765.1 | 999999 | |
| 12.22 | 16.53 | 8.89 | 12.03 | 18.68 | 1.43 | -46.92 | 70.89 | 0.7346 | -725.1 | -468.8 | |
| 0.00 | 1.53 | 0.00 | 1.13 | 19.44 | 0.72 | -47.63 | 70.00 | 0.7437 | -559.0 | -464.5 | |
| 0.00 | 1.35 | 0.00 | 1.16 | 18.20 | 353.02 | -55.33 | 72.61 | 0.8208 | 508.0 | 398.9 | |
| 3.68 | 6.02 | 4.02 | 6.57 | 19.27 | 344.56 | -63.79 | 71.88 | 0.8930 | 366.3 | 151.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
