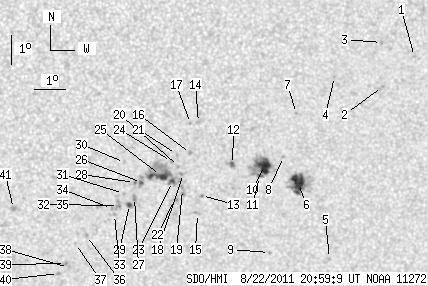

SDO HMI 2011-08-22 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.59 | 185.10 | 28.63 | 104.72 | -21.22 | 53.25 | 6.01 | 191.70 | 0.4851 | -93.0 | -215.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.45 | -17.16 | 59.66 | 12.42 | 206.86 | 0.4568 | 687.0 | 498.9 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -18.14 | 58.69 | 11.45 | 204.09 | 0.4639 | 689.0 | 619.4 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -16.67 | 58.56 | 11.32 | 205.27 | 0.4424 | 887.0 | 688.8 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -17.77 | 57.11 | 9.87 | 201.40 | 0.4491 | 722.0 | 545.3 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -24.02 | 57.37 | 10.13 | 197.39 | 0.5395 | 560.0 | 551.6 | |
| 16.53 | 37.01 | 9.42 | 21.10 | -21.37 | 56.15 | 8.91 | 196.95 | 0.4966 | 1021.0 | 467.5 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -18.98 | 55.95 | 8.70 | 198.17 | 0.4608 | 828.0 | 599.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -20.44 | 55.60 | 8.36 | 196.54 | 0.4805 | -539.0 | -325.0 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -23.76 | 55.33 | 8.09 | 194.19 | 0.5278 | 659.0 | 586.2 | |
| 13.92 | 34.85 | 7.87 | 19.69 | -20.73 | 54.99 | 7.75 | 195.23 | 0.4824 | 1040.2 | 566.3 | |
| 1.71 | -10.00 | 0.97 | -10.00 | -21.11 | 54.85 | 7.61 | 194.74 | 0.4873 | 662.9 | 999999 | |
| 2.07 | 3.77 | 1.16 | 2.12 | -20.68 | 53.95 | 6.71 | 193.28 | 0.4777 | 882.0 | 694.3 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -21.74 | 52.98 | 5.74 | 190.96 | 0.4903 | -540.0 | -514.9 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -19.24 | 52.79 | 5.55 | 191.70 | 0.4520 | -870.0 | -654.6 | |
| 0.00 | 2.43 | 0.00 | 1.38 | -22.36 | 52.87 | 5.63 | 190.51 | 0.4993 | -838.0 | -617.3 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -20.29 | 52.56 | 5.32 | 190.78 | 0.4673 | -768.0 | -671.7 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -19.27 | 52.53 | 5.29 | 191.15 | 0.4517 | -927.0 | -712.8 | |
| 0.00 | 2.34 | 0.00 | 1.32 | -20.97 | 52.36 | 5.12 | 190.10 | 0.4771 | -659.0 | -566.4 | |
| 0.00 | 4.04 | 0.00 | 2.29 | -21.52 | 52.35 | 5.11 | 189.86 | 0.4854 | -795.0 | -682.8 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -20.73 | 52.19 | 4.95 | 189.86 | 0.4730 | -609.0 | -558.1 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -20.32 | 52.11 | 4.87 | 189.87 | 0.4665 | -794.0 | -630.2 | |
| 0.00 | 2.96 | 0.00 | 1.68 | -21.86 | 52.10 | 4.86 | 189.27 | 0.4899 | -742.0 | -584.9 | |
| 1.98 | 49.59 | 1.11 | 27.89 | -21.24 | 52.01 | 4.77 | 189.32 | 0.4803 | -890.7 | -619.2 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -20.55 | 51.96 | 4.72 | 189.47 | 0.4697 | -935.0 | -795.3 | |
| 10.69 | -23.00 | 6.02 | -23.00 | -21.03 | 51.61 | 4.37 | 188.63 | 0.4761 | -1097.7 | 999999 | |
| 1.53 | -23.00 | 0.86 | -23.00 | -21.27 | 51.00 | 3.76 | 187.37 | 0.4784 | -960.4 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.53 | -21.78 | 50.78 | 3.54 | 186.81 | 0.4859 | -1052.0 | -860.3 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -21.26 | 50.77 | 3.53 | 186.93 | 0.4780 | -847.0 | -752.2 | |
| 2.16 | 3.23 | 1.22 | 1.84 | -22.02 | 50.63 | 3.39 | 186.45 | 0.4893 | -880.8 | -708.2 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -20.57 | 50.43 | 3.19 | 186.44 | 0.4668 | -768.0 | -708.7 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -21.64 | 50.42 | 3.18 | 186.15 | 0.4831 | -843.0 | -706.4 | |
| 0.00 | 4.58 | 0.00 | 2.60 | -22.05 | 50.27 | 3.03 | 185.76 | 0.4892 | -1056.0 | -863.6 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -22.37 | 50.14 | 2.90 | 185.46 | 0.4937 | -690.0 | -553.1 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -22.16 | 50.04 | 2.80 | 185.31 | 0.4904 | -894.0 | -733.7 | |
| 0.00 | 2.43 | 0.00 | 1.38 | -22.05 | 49.64 | 2.40 | 184.59 | 0.4883 | -821.0 | -746.9 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -23.10 | 49.23 | 1.99 | 183.66 | 0.5037 | -944.0 | -643.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -23.37 | 48.88 | 1.63 | 182.97 | 0.5076 | -726.0 | -527.5 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -24.22 | 48.65 | 1.41 | 182.49 | 0.5201 | -647.0 | -551.8 | |
| 0.00 | 2.16 | 0.00 | 1.25 | -24.08 | 48.55 | 1.31 | 182.32 | 0.5179 | -890.0 | -765.0 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -24.43 | 48.32 | 1.08 | 181.89 | 0.5231 | -739.0 | -539.9 | |
| 0.00 | 2.87 | 0.00 | 1.63 | -22.15 | 46.83 | -0.41 | 179.22 | 0.4883 | -806.0 | -732.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
