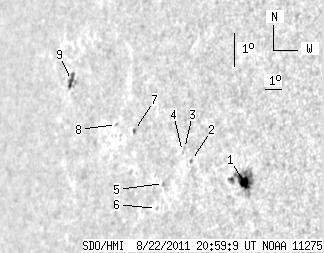

SDO HMI 2011-08-22 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.01 | 50.59 | 14.19 | 48.30 | 7.71 | 348.04 | -59.20 | 85.22 | 0.8532 | -237.5 | -299.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.35 | 33.42 | 7.25 | 28.96 | 7.23 | 351.61 | -55.63 | 86.01 | 0.8230 | -869.2 | -517.4 | |
| 0.00 | 1.26 | 0.00 | 1.18 | 7.57 | 348.59 | -58.65 | 85.39 | 0.8514 | -520.0 | -481.6 | |
| 0.00 | 1.17 | 0.00 | 1.11 | 7.88 | 348.10 | -59.14 | 84.98 | 0.8557 | -407.0 | -356.5 | |
| 0.00 | 0.63 | 0.00 | 0.60 | 7.78 | 348.00 | -59.24 | 85.10 | 0.8566 | -228.0 | -225.4 | |
| 0.00 | 1.44 | 0.00 | 1.41 | 6.70 | 347.07 | -60.17 | 86.27 | 0.8654 | -293.0 | -263.9 | |
| 0.00 | 1.08 | 0.00 | 1.07 | 5.91 | 346.79 | -60.45 | 87.16 | 0.8683 | -227.0 | -172.5 | |
| 0.54 | 1.89 | 0.56 | 1.98 | 8.10 | 344.88 | -62.36 | 84.52 | 0.8830 | 380.5 | 318.6 | |
| 0.00 | 0.45 | 0.00 | 0.49 | 8.15 | 343.64 | -63.60 | 84.37 | 0.8928 | 429.0 | 386.0 | |
| 5.12 | 9.25 | 6.38 | 11.50 | 9.10 | 339.97 | -67.27 | 83.07 | 0.9191 | 398.1 | 400.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
