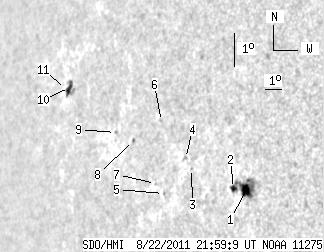

SDO HMI 2011-08-22 21:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.54 | 49.78 | 15.49 | 47.40 | 7.81 | 347.48 | -59.21 | 85.09 | 0.8530 | -200.9 | -293.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-22 21:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.47 | 31.26 | 5.53 | 26.73 | 7.20 | 351.65 | -55.04 | 86.09 | 0.8171 | -874.6 | -585.3 | |
| 3.14 | -1.00 | 2.73 | -1.00 | 7.20 | 351.00 | -55.69 | 86.05 | 0.8236 | -359.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 1.00 | 7.56 | 348.56 | -58.13 | 85.44 | 0.8466 | -618.0 | -486.9 | |
| 0.00 | 1.89 | 0.00 | 1.77 | 7.82 | 348.15 | -58.54 | 85.10 | 0.8502 | -448.0 | -362.5 | |
| 0.00 | 0.72 | 0.00 | 0.69 | 6.64 | 347.08 | -59.61 | 86.40 | 0.8605 | -362.0 | -309.2 | |
| 0.00 | 0.72 | 0.00 | 0.70 | 8.78 | 346.46 | -60.23 | 83.87 | 0.8648 | -310.0 | -299.1 | |
| 0.00 | 0.90 | 0.00 | 0.88 | 6.89 | 346.54 | -60.15 | 86.06 | 0.8651 | -398.0 | -323.7 | |
| 0.00 | 1.44 | 0.00 | 1.48 | 8.03 | 344.87 | -61.82 | 84.63 | 0.8786 | 481.0 | 399.8 | |
| 0.00 | 1.17 | 0.00 | 1.25 | 8.15 | 343.64 | -63.05 | 84.41 | 0.8885 | 440.0 | 341.5 | |
| 5.39 | 10.60 | 6.57 | 12.90 | 9.13 | 339.95 | -66.73 | 83.07 | 0.9154 | 393.2 | 399.6 | |
| 0.54 | -10.00 | 0.66 | -10.00 | 9.03 | 339.67 | -67.02 | 83.15 | 0.9174 | -104.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
