SDO HMI 2011-08-22 23:49:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.23 | 159.56 | 24.03 | 90.52 | -21.11 | 53.49 | 7.82 | 195.16 | 0.4903 | 16.2 | -126.5 | |
|
previous
or next observation for the same group /

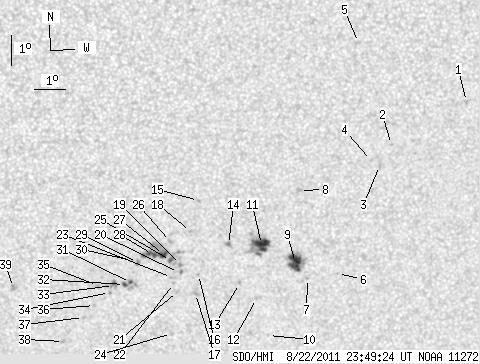

back to the solar disc SDO HMI 2011-08-22 23:49:24 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.01 | -16.13 | 61.34 | 15.67 | 213.77 | 0.4686 | 703.0 | 546.6 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -17.48 | 58.99 | 13.32 | 208.15 | 0.4677 | 797.0 | 651.7 | |
| 0.00 | 2.16 | 0.00 | 1.21 | -18.17 | 58.65 | 12.98 | 206.84 | 0.4746 | 720.0 | 510.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -17.99 | 58.38 | 12.70 | 206.52 | 0.4703 | 654.0 | 446.6 | |
| 0.00 | 2.07 | 0.00 | 1.12 | -14.09 | 57.71 | 12.04 | 209.56 | 0.4117 | 649.0 | 574.4 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -21.81 | 57.56 | 11.88 | 201.76 | 0.5178 | 533.0 | 422.4 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -21.96 | 56.57 | 10.90 | 200.00 | 0.5146 | 382.0 | 355.5 | |
| 0.00 | 2.88 | 0.00 | 1.61 | -18.94 | 56.09 | 10.42 | 201.47 | 0.4693 | 812.0 | 594.3 | |
| 15.09 | 27.67 | 8.65 | 15.85 | -21.40 | 56.13 | 10.45 | 199.65 | 0.5044 | 963.0 | 579.0 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -23.93 | 55.42 | 9.74 | 196.82 | 0.5368 | 746.0 | 520.0 | |
| 13.57 | 32.80 | 7.70 | 18.60 | -20.75 | 54.96 | 9.29 | 198.04 | 0.4895 | 1001.8 | 566.8 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -22.62 | 54.92 | 9.25 | 196.77 | 0.5161 | 504.0 | 300.9 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -22.08 | 54.32 | 8.65 | 196.05 | 0.5059 | 685.0 | 584.5 | |
| 0.00 | 3.41 | 0.00 | 1.93 | -20.73 | 53.88 | 8.21 | 196.06 | 0.4844 | 947.0 | 739.9 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -19.22 | 52.83 | 7.15 | 194.96 | 0.4576 | -843.0 | -737.0 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -21.75 | 52.95 | 7.28 | 193.78 | 0.4957 | -709.0 | -482.8 | |
| 0.00 | 2.34 | 0.00 | 1.34 | -22.41 | 52.89 | 7.21 | 193.33 | 0.5051 | -855.0 | -564.0 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -20.26 | 52.62 | 6.94 | 193.94 | 0.4725 | -729.0 | -576.4 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -21.39 | 52.34 | 6.67 | 192.84 | 0.4883 | -771.0 | -607.5 | |
| 0.00 | 2.34 | 0.00 | 1.33 | -21.67 | 52.29 | 6.61 | 192.61 | 0.4922 | -618.0 | -672.2 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -22.33 | 52.29 | 6.61 | 192.30 | 0.5020 | -708.0 | -568.1 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -22.05 | 52.14 | 6.47 | 192.17 | 0.4974 | -649.0 | -528.9 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -21.84 | 52.07 | 6.39 | 192.12 | 0.4940 | -704.0 | -634.1 | |
| 0.00 | 1.98 | 0.00 | 1.15 | -23.80 | 52.16 | 6.48 | 191.44 | 0.5231 | -525.0 | -364.8 | |
| 1.80 | 8.36 | 1.02 | 4.72 | -21.25 | 52.01 | 6.33 | 192.29 | 0.4851 | -873.2 | -687.3 | |
| 0.00 | 2.16 | 0.00 | 1.21 | -20.60 | 51.98 | 6.30 | 192.54 | 0.4752 | -799.0 | -638.8 | |
| 4.67 | 24.53 | 2.64 | 13.82 | -21.04 | 51.77 | 6.09 | 191.93 | 0.4812 | -1021.5 | -651.7 | |
| 3.86 | -27.00 | 2.18 | -27.00 | -21.03 | 51.41 | 5.74 | 191.25 | 0.4800 | -1126.5 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.32 | -21.30 | 50.93 | 5.26 | 190.22 | 0.4827 | -1025.0 | -860.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -21.23 | 50.76 | 5.09 | 189.94 | 0.4812 | -861.0 | -641.2 | |
| 1.35 | 8.72 | 0.77 | 4.96 | -21.99 | 50.73 | 5.05 | 189.58 | 0.4925 | -919.1 | -581.6 | |
| 1.89 | -31.00 | 1.07 | -31.00 | -22.06 | 50.53 | 4.86 | 189.19 | 0.4930 | -890.6 | 999999 | |
| 0.00 | 5.93 | 0.00 | 3.37 | -22.09 | 50.17 | 4.50 | 188.51 | 0.4927 | -1126.0 | -839.2 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -22.33 | 50.05 | 4.37 | 188.21 | 0.4960 | -627.0 | -555.2 | |
| 0.00 | 2.16 | 0.00 | 1.23 | -22.09 | 49.65 | 3.97 | 187.53 | 0.4915 | -824.0 | -721.2 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -22.78 | 49.57 | 3.89 | 187.19 | 0.5018 | -764.0 | -651.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -23.20 | 49.22 | 3.54 | 186.45 | 0.5075 | -705.0 | -592.8 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -24.04 | 48.57 | 2.90 | 185.12 | 0.5191 | -861.0 | -729.2 | |
| 0.00 | 3.50 | 0.00 | 1.99 | -22.14 | 46.90 | 1.22 | 182.32 | 0.4887 | -862.0 | -730.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
