SDO HMI 2011-08-23 00:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.51 | 136.47 | 20.80 | 77.57 | -21.20 | 53.16 | 8.12 | 195.63 | 0.4925 | -31.8 | -212.5 | |
|
previous
or next observation for the same group /

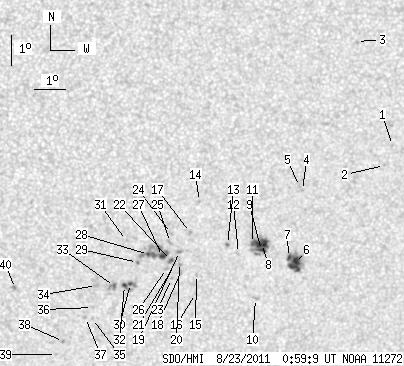

back to the solar disc SDO HMI 2011-08-23 00:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.30 | -17.50 | 59.04 | 14.01 | 209.33 | 0.4731 | 816.0 | 648.7 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -18.16 | 58.83 | 13.80 | 208.27 | 0.4803 | 801.0 | 640.9 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -14.04 | 57.64 | 12.61 | 210.77 | 0.4157 | 721.0 | 592.1 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -18.93 | 56.20 | 11.17 | 202.86 | 0.4735 | 742.0 | 556.9 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -18.79 | 56.09 | 11.06 | 202.78 | 0.4709 | 441.0 | 434.9 | |
| 11.68 | 24.89 | 6.71 | 14.29 | -21.42 | 56.15 | 11.12 | 200.77 | 0.5082 | 930.0 | 680.7 | |
| 2.34 | -6.00 | 1.34 | -6.00 | -21.20 | 55.90 | 10.87 | 200.51 | 0.5039 | 859.2 | 999999 | |
| 9.44 | 28.40 | 5.36 | 16.14 | -20.70 | 54.98 | 9.94 | 199.24 | 0.4920 | 1079.8 | 638.9 | |
| 2.79 | -8.00 | 1.59 | -8.00 | -20.94 | 54.99 | 9.96 | 199.10 | 0.4955 | 771.5 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.30 | -22.60 | 54.91 | 9.88 | 197.85 | 0.5187 | 539.0 | 345.3 | |
| 1.17 | -8.00 | 0.66 | -8.00 | -20.69 | 54.68 | 9.65 | 198.72 | 0.4904 | 921.3 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -21.03 | 54.24 | 9.21 | 197.70 | 0.4932 | 561.0 | 536.5 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -20.71 | 53.86 | 8.83 | 197.22 | 0.4868 | 890.0 | 751.5 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -19.23 | 52.87 | 7.83 | 196.29 | 0.4607 | -881.0 | -709.6 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -21.73 | 52.90 | 7.86 | 194.86 | 0.4976 | -480.0 | -434.5 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -22.38 | 52.90 | 7.87 | 194.51 | 0.5072 | -825.0 | -628.0 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -20.28 | 52.63 | 7.59 | 195.18 | 0.4752 | -798.0 | -507.4 | |
| 0.00 | 1.98 | 0.00 | 1.13 | -21.65 | 52.37 | 7.33 | 193.94 | 0.4945 | -679.0 | -597.3 | |
| 0.00 | 1.89 | 0.00 | 1.07 | -20.92 | 52.30 | 7.26 | 194.20 | 0.4835 | -755.0 | -699.4 | |
| 0.00 | 3.41 | 0.00 | 1.94 | -21.30 | 52.32 | 7.28 | 194.03 | 0.4892 | -638.0 | -598.7 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -21.37 | 52.16 | 7.12 | 193.70 | 0.4896 | -741.0 | -662.1 | |
| 0.72 | 2.52 | 0.41 | 1.43 | -21.23 | 52.05 | 7.02 | 193.57 | 0.4871 | -979.0 | -795.3 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -21.85 | 52.08 | 7.05 | 193.32 | 0.4964 | -849.0 | -701.5 | |
| 0.00 | 1.98 | 0.00 | 1.11 | -20.30 | 52.01 | 6.97 | 193.98 | 0.4732 | -734.0 | -475.0 | |
| 0.00 | 2.34 | 0.00 | 1.32 | -20.61 | 51.99 | 6.96 | 193.78 | 0.4777 | -758.0 | -627.3 | |
| 0.00 | 2.16 | 0.00 | 1.22 | -21.50 | 51.90 | 6.87 | 193.16 | 0.4907 | -664.0 | -506.9 | |
| 2.61 | 25.07 | 1.47 | 14.15 | -21.09 | 51.75 | 6.72 | 193.08 | 0.4840 | -1055.8 | -732.4 | |
| 1.71 | -27.00 | 0.96 | -27.00 | -21.01 | 51.29 | 6.25 | 192.25 | 0.4813 | -1127.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -21.28 | 50.94 | 5.91 | 191.47 | 0.4843 | -913.0 | -867.9 | |
| 1.53 | 8.99 | 0.87 | 5.12 | -22.00 | 50.74 | 5.71 | 190.79 | 0.4945 | -977.9 | -667.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -20.52 | 50.55 | 5.52 | 191.05 | 0.4716 | -793.0 | -577.0 | |
| 1.44 | -30.00 | 0.82 | -30.00 | -22.07 | 50.55 | 5.51 | 190.40 | 0.4949 | -818.9 | 999999 | |
| 1.08 | 4.76 | 0.61 | 2.71 | -22.10 | 50.22 | 5.18 | 189.79 | 0.4945 | -949.1 | -803.3 | |
| 0.00 | 2.61 | 0.00 | 1.48 | -22.06 | 49.63 | 4.59 | 188.70 | 0.4925 | -858.0 | -664.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -23.21 | 49.53 | 4.50 | 188.16 | 0.5095 | -571.0 | -428.2 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -22.83 | 49.52 | 4.48 | 188.26 | 0.5037 | -777.0 | -527.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -23.17 | 49.30 | 4.26 | 187.76 | 0.5085 | -833.0 | -692.2 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -24.01 | 48.60 | 3.56 | 186.29 | 0.5197 | -885.0 | -703.5 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -24.47 | 48.38 | 3.34 | 185.81 | 0.5262 | -731.0 | -619.6 | |
| 0.00 | 3.06 | 0.00 | 1.73 | -22.14 | 46.97 | 1.94 | 183.68 | 0.4894 | -864.0 | -642.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
