SDO HMI 2011-08-23 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.61 | 131.55 | 23.75 | 74.86 | -21.16 | 53.34 | 8.85 | 196.97 | 0.4955 | 39.3 | -214.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-23 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

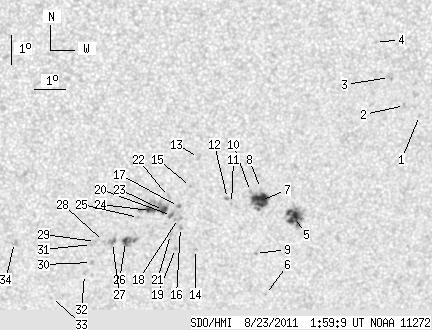

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.87 | -18.05 | 59.99 | 15.50 | 211.26 | 0.4918 | 672.0 | 477.1 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -17.70 | 59.46 | 14.98 | 210.78 | 0.4831 | 764.0 | 648.2 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -16.75 | 58.89 | 14.41 | 210.87 | 0.4663 | 826.0 | 663.6 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -15.58 | 58.35 | 13.86 | 211.27 | 0.4465 | 752.0 | 546.4 | |
| 14.20 | 26.42 | 8.17 | 15.20 | -21.39 | 56.13 | 11.65 | 201.69 | 0.5108 | 920.9 | 603.6 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -24.06 | 55.39 | 10.90 | 198.58 | 0.5439 | 612.0 | 443.6 | |
| 16.00 | 21.84 | 9.11 | 12.44 | -20.78 | 54.96 | 10.48 | 200.13 | 0.4959 | 947.4 | 672.1 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -20.37 | 54.93 | 10.45 | 200.39 | 0.4899 | 369.0 | 377.2 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -22.61 | 54.93 | 10.45 | 198.79 | 0.5215 | 619.0 | 526.4 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -20.46 | 54.61 | 10.12 | 199.74 | 0.4896 | 770.0 | 526.1 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -20.86 | 54.01 | 9.53 | 198.39 | 0.4923 | 744.0 | 582.9 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -20.69 | 53.87 | 9.38 | 198.25 | 0.4891 | 895.0 | 722.6 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -19.27 | 52.84 | 8.36 | 197.28 | 0.4636 | -713.0 | -656.6 | |
| 0.00 | 1.71 | 0.00 | 0.98 | -22.43 | 52.92 | 8.44 | 195.48 | 0.5101 | -781.0 | -608.1 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -20.25 | 52.63 | 8.15 | 196.24 | 0.4772 | -712.0 | -547.1 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -21.65 | 52.38 | 7.89 | 194.95 | 0.4967 | -737.0 | -605.6 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -20.93 | 52.28 | 7.79 | 195.17 | 0.4857 | -869.0 | -731.3 | |
| 0.00 | 3.33 | 0.00 | 1.89 | -21.34 | 52.30 | 7.81 | 194.98 | 0.4918 | -514.0 | -590.6 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -22.38 | 52.26 | 7.77 | 194.34 | 0.5069 | -795.0 | -674.5 | |
| 0.00 | 2.79 | 0.00 | 1.58 | -21.23 | 52.06 | 7.58 | 194.60 | 0.4893 | -1037.0 | -841.3 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -21.89 | 52.06 | 7.58 | 194.25 | 0.4990 | -685.0 | -508.9 | |
| 0.00 | 2.07 | 0.00 | 1.17 | -20.58 | 51.93 | 7.44 | 194.72 | 0.4792 | -926.0 | -669.9 | |
| 4.31 | 24.45 | 2.44 | 13.81 | -21.06 | 51.79 | 7.30 | 194.20 | 0.4857 | -989.2 | -624.7 | |
| 3.95 | -23.00 | 2.24 | -23.00 | -21.05 | 51.36 | 6.88 | 193.41 | 0.4841 | -1063.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -21.29 | 50.98 | 6.50 | 192.57 | 0.4863 | -1022.0 | -761.5 | |
| 3.15 | 9.98 | 1.79 | 5.69 | -22.11 | 50.59 | 6.11 | 191.48 | 0.4973 | -853.7 | -771.0 | |
| 0.00 | 4.76 | 0.00 | 2.71 | -22.14 | 50.17 | 5.68 | 190.68 | 0.4965 | -949.0 | -840.1 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -22.10 | 49.87 | 5.38 | 190.15 | 0.4951 | -698.0 | -646.5 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -22.10 | 49.61 | 5.12 | 189.67 | 0.4944 | -867.0 | -596.7 | |
| 0.00 | 1.89 | 0.00 | 1.08 | -22.83 | 49.50 | 5.01 | 189.22 | 0.5050 | -761.0 | -562.9 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -22.20 | 49.48 | 4.99 | 189.39 | 0.4956 | -691.0 | -563.6 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -23.25 | 49.28 | 4.80 | 188.69 | 0.5107 | -760.0 | -589.2 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -24.05 | 48.21 | 3.73 | 186.58 | 0.5205 | -546.0 | -447.9 | |
| 0.00 | 3.06 | 0.00 | 1.73 | -22.11 | 46.95 | 2.46 | 184.68 | 0.4895 | -720.0 | -650.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
