SDO HMI 2011-08-23 03:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.10 | 130.95 | 22.41 | 74.81 | -21.23 | 53.15 | 9.76 | 198.54 | 0.5010 | -57.4 | -248.2 | |
|
previous
or next observation for the same group /

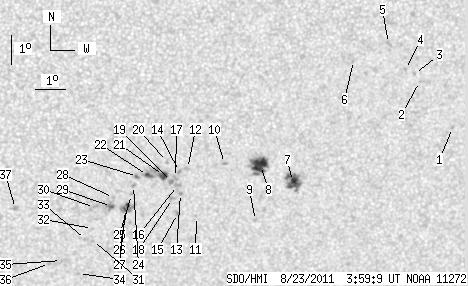

back to the solar disc SDO HMI 2011-08-23 03:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.84 | -19.68 | 61.30 | 17.92 | 213.17 | 0.5314 | 561.0 | 368.7 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -18.09 | 60.03 | 16.64 | 213.02 | 0.5014 | 514.0 | 471.9 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -17.81 | 59.83 | 16.44 | 213.03 | 0.4964 | 642.0 | 523.1 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -17.67 | 59.52 | 16.13 | 212.70 | 0.4920 | 822.0 | 618.3 | |
| 0.00 | 2.61 | 0.00 | 1.47 | -16.78 | 58.88 | 15.49 | 212.68 | 0.4755 | 923.0 | 660.4 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -17.31 | 57.77 | 14.39 | 210.20 | 0.4735 | 561.0 | 477.8 | |
| 13.75 | 19.51 | 7.95 | 11.27 | -21.35 | 56.10 | 12.71 | 203.48 | 0.5163 | 926.2 | 729.5 | |
| 13.66 | 24.45 | 7.82 | 13.98 | -20.77 | 54.99 | 11.60 | 202.09 | 0.5019 | 965.6 | 715.6 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -22.67 | 54.98 | 11.59 | 200.63 | 0.5281 | 623.0 | 431.4 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -20.67 | 53.79 | 10.40 | 200.08 | 0.4940 | 836.0 | 698.1 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -22.48 | 52.99 | 9.60 | 197.45 | 0.5159 | -778.0 | -566.2 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -20.82 | 52.58 | 9.19 | 197.81 | 0.4901 | -625.0 | -439.3 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -21.67 | 52.41 | 9.02 | 196.95 | 0.5017 | -722.0 | -600.3 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -20.91 | 52.33 | 8.94 | 197.28 | 0.4904 | -873.0 | -691.2 | |
| 0.00 | 2.52 | 0.00 | 1.45 | -22.37 | 52.35 | 8.96 | 196.43 | 0.5114 | -822.0 | -686.8 | |
| 0.00 | 2.79 | 0.00 | 1.59 | -21.40 | 52.29 | 8.90 | 196.91 | 0.4972 | -683.0 | -595.7 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -21.12 | 52.21 | 8.82 | 196.94 | 0.4928 | -880.0 | -682.0 | |
| 0.00 | 2.43 | 0.00 | 1.39 | -21.84 | 52.15 | 8.76 | 196.39 | 0.5030 | -836.0 | -659.3 | |
| 0.00 | 2.34 | 0.00 | 1.33 | -21.25 | 52.08 | 8.69 | 196.63 | 0.4942 | -1040.0 | -841.1 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -20.56 | 51.91 | 8.52 | 196.75 | 0.4834 | -713.0 | -539.8 | |
| 5.66 | 20.32 | 3.21 | 11.51 | -21.04 | 51.81 | 8.42 | 196.26 | 0.4899 | -934.4 | -602.9 | |
| 1.71 | -21.00 | 0.97 | -21.00 | -21.03 | 51.28 | 7.89 | 195.30 | 0.4876 | -1031.1 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -21.06 | 50.96 | 7.57 | 194.68 | 0.4868 | -1079.0 | -908.8 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -21.37 | 50.84 | 7.45 | 194.30 | 0.4909 | -881.0 | -697.1 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -21.68 | 50.79 | 7.40 | 194.04 | 0.4953 | -760.0 | -537.8 | |
| 1.62 | 11.69 | 0.92 | 6.68 | -22.06 | 50.68 | 7.29 | 193.65 | 0.5004 | -925.9 | -663.5 | |
| 1.80 | -26.00 | 1.03 | -26.00 | -22.20 | 50.62 | 7.23 | 193.47 | 0.5022 | -766.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -21.77 | 50.20 | 6.81 | 192.92 | 0.4946 | -793.0 | -651.1 | |
| 0.90 | 4.58 | 0.51 | 2.62 | -22.08 | 50.15 | 6.76 | 192.68 | 0.4990 | -1019.3 | -823.3 | |
| 0.00 | 3.15 | 0.00 | 1.79 | -22.11 | 49.59 | 6.20 | 191.65 | 0.4976 | -886.0 | -629.9 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -23.26 | 49.58 | 6.19 | 191.14 | 0.5146 | -616.0 | -528.7 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -22.84 | 49.56 | 6.17 | 191.28 | 0.5083 | -590.0 | -517.1 | |
| 0.00 | 1.98 | 0.00 | 1.14 | -23.22 | 49.35 | 5.96 | 190.75 | 0.5134 | -799.0 | -611.9 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -24.42 | 49.17 | 5.78 | 189.99 | 0.5305 | -616.0 | -521.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -23.96 | 48.58 | 5.19 | 189.14 | 0.5222 | -726.0 | -682.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -24.06 | 48.18 | 4.79 | 188.43 | 0.5228 | -796.0 | -632.1 | |
| 0.00 | 2.97 | 0.00 | 1.69 | -22.12 | 47.00 | 3.61 | 186.84 | 0.4914 | -730.0 | -657.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
