SDO HMI 2011-08-23 05:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.08 | 127.72 | 19.62 | 73.21 | -21.21 | 53.08 | 10.79 | 200.34 | 0.5055 | 3.7 | -287.7 | |
|
previous
or next observation for the same group /

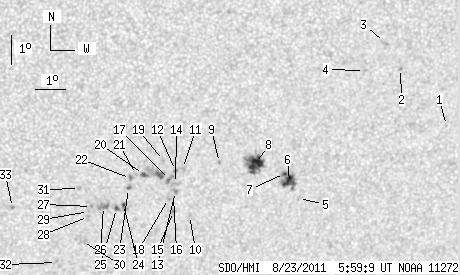

back to the solar disc SDO HMI 2011-08-23 05:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.42 | -19.67 | 61.26 | 18.97 | 214.70 | 0.5399 | 598.0 | 474.8 | |
| 0.00 | 1.44 | 0.00 | 0.82 | -17.68 | 59.49 | 17.20 | 214.37 | 0.5010 | 729.0 | 680.4 | |
| 0.00 | 2.70 | 0.00 | 1.53 | -16.79 | 58.88 | 16.58 | 214.46 | 0.4848 | 716.0 | 596.6 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -17.70 | 58.30 | 16.00 | 212.46 | 0.4914 | 595.0 | 559.1 | |
| 0.00 | 1.89 | 0.00 | 1.10 | -21.99 | 56.51 | 14.22 | 205.35 | 0.5341 | 331.0 | 246.0 | |
| 8.81 | 16.90 | 5.12 | 9.81 | -21.39 | 56.15 | 13.86 | 205.30 | 0.5239 | 927.4 | 752.0 | |
| 1.35 | -6.00 | 0.78 | -6.00 | -21.11 | 55.96 | 13.66 | 205.23 | 0.5189 | 1008.2 | 999999 | |
| 17.35 | 28.86 | 9.96 | 16.57 | -20.74 | 54.95 | 12.66 | 203.92 | 0.5076 | 936.0 | 587.4 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -20.67 | 53.76 | 11.46 | 201.93 | 0.4997 | 843.0 | 702.2 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -22.48 | 52.90 | 10.60 | 199.15 | 0.5205 | -733.0 | -536.5 | |
| 0.00 | 2.70 | 0.00 | 1.54 | -20.85 | 52.55 | 10.25 | 199.69 | 0.4957 | -489.0 | -381.9 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -20.91 | 52.32 | 10.03 | 199.24 | 0.4955 | -789.0 | -727.8 | |
| 0.00 | 2.88 | 0.00 | 1.65 | -21.63 | 52.37 | 10.08 | 198.82 | 0.5060 | -741.0 | -631.4 | |
| 0.00 | 3.78 | 0.00 | 2.16 | -21.36 | 52.35 | 10.06 | 198.98 | 0.5020 | -659.0 | -534.7 | |
| 0.00 | 1.71 | 0.00 | 0.99 | -22.33 | 52.35 | 10.06 | 198.33 | 0.5157 | -777.0 | -674.9 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -21.81 | 52.32 | 10.02 | 198.61 | 0.5082 | -584.0 | -430.7 | |
| 0.00 | 4.05 | 0.00 | 2.31 | -21.22 | 52.14 | 9.85 | 198.71 | 0.4989 | -883.0 | -761.4 | |
| 0.00 | 2.07 | 0.00 | 1.19 | -21.87 | 52.15 | 9.86 | 198.29 | 0.5084 | -693.0 | -569.0 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -20.56 | 51.90 | 9.61 | 198.74 | 0.4884 | -713.0 | -525.2 | |
| 2.07 | 16.99 | 1.18 | 9.66 | -21.02 | 51.27 | 8.98 | 197.29 | 0.4921 | -991.1 | -726.5 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -21.02 | 51.04 | 8.75 | 196.88 | 0.4911 | -826.0 | -636.8 | |
| 0.00 | 2.43 | 0.00 | 1.38 | -21.15 | 50.85 | 8.56 | 196.45 | 0.4922 | -1034.0 | -831.1 | |
| 1.17 | 2.61 | 0.67 | 1.49 | -21.50 | 50.81 | 8.51 | 196.16 | 0.4970 | -826.1 | -786.4 | |
| 1.62 | 4.68 | 0.93 | 2.68 | -22.05 | 50.68 | 8.38 | 195.60 | 0.5044 | -923.1 | -619.5 | |
| 1.71 | 2.43 | 0.98 | 1.39 | -22.18 | 50.45 | 8.16 | 195.13 | 0.5055 | -770.2 | -635.2 | |
| 0.00 | 7.82 | 0.00 | 4.48 | -22.11 | 50.02 | 7.72 | 194.40 | 0.5027 | -911.0 | -811.7 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -22.10 | 49.62 | 7.33 | 193.69 | 0.5012 | -834.0 | -661.5 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -22.45 | 49.54 | 7.25 | 193.37 | 0.5060 | -722.0 | -535.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -22.27 | 49.53 | 7.24 | 193.44 | 0.5034 | -685.0 | -572.0 | |
| 0.00 | 3.60 | 0.00 | 2.08 | -23.32 | 49.39 | 7.09 | 192.69 | 0.5182 | -601.0 | -571.9 | |
| 0.00 | 2.07 | 0.00 | 1.17 | -21.47 | 49.19 | 6.90 | 193.23 | 0.4904 | -782.0 | -635.3 | |
| 0.00 | 1.89 | 0.00 | 1.10 | -24.05 | 48.56 | 6.26 | 190.96 | 0.5263 | -833.0 | -688.0 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -22.10 | 47.02 | 4.73 | 188.94 | 0.4934 | -873.0 | -689.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
