SDO HMI 2011-08-23 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.87 | 33.89 | 9.69 | 27.35 | 7.65 | 348.77 | -52.43 | 85.77 | 0.7868 | -484.5 | -284.0 | |
|
previous
or next observation for the same group /

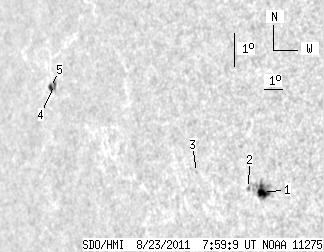

back to the solar disc SDO HMI 2011-08-23 07:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.99 | 24.72 | 6.79 | 18.68 | 7.14 | 351.80 | -49.40 | 86.59 | 0.7570 | -872.4 | -513.2 | |
| 0.00 | 1.71 | 0.00 | 1.31 | 7.19 | 351.13 | -50.07 | 86.46 | 0.7645 | -382.0 | -310.3 | |
| 0.00 | 0.81 | 0.00 | 0.65 | 7.44 | 348.53 | -52.67 | 85.97 | 0.7927 | -629.0 | -557.8 | |
| 0.72 | 6.65 | 0.72 | 6.71 | 9.28 | 340.07 | -61.12 | 83.25 | 0.8722 | 602.2 | 489.2 | |
| 2.16 | -4.00 | 2.18 | -4.00 | 9.16 | 339.85 | -61.35 | 83.37 | 0.8741 | 384.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
