groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11271 166.23 887.50 89.31 477.48 18.08 60.22 20.12 301.76 0.3867 -4.2 -31.7


previous   or   next   observation for the same group / back to the solar disc

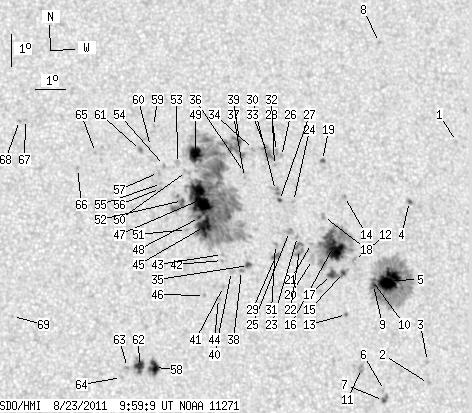

SDO HMI 2011-08-23 09:59:09 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.62 0.00 0.92 20.43 67.41 27.31 299.73 0.4971 -772.0 -583.6
2 0.00 1.26 0.00 0.69 13.06 65.32 25.22 285.80 0.4331 -663.0 -676.1
3 0.00 1.17 0.00 0.64 13.73 65.36 25.26 287.29 0.4359 -815.0 -658.9
4 1.08 2.52 0.60 1.40 18.66 65.41 25.31 297.82 0.4598 822.9 787.5
5 28.32 167.29 15.54 91.86 16.27 64.36 24.26 293.55 0.4320 -1252.2 -367.5
6 0.00 0.36 0.00 0.20 12.92 63.80 23.70 286.18 0.4096 -654.0 -711.0
7 1.35 4.05 0.73 2.19 12.62 63.74 23.63 285.49 0.4077 -954.2 -866.8
8 0.00 1.62 0.00 0.92 23.67 65.25 25.14 307.43 0.4921 -833.0 -610.6
9 1.71 -5.00 0.93 -5.00 16.17 63.79 23.69 293.75 0.4234 -1133.7 999999
10 0.54 -5.00 0.29 -5.00 16.30 63.78 23.67 294.04 0.4238 -831.2 999999
11 0.00 3.51 0.00 1.89 13.63 63.09 22.99 288.27 0.4014 -681.0 -813.4
12 0.00 3.33 0.00 1.81 16.94 63.24 23.14 295.90 0.4196 -672.0 -564.8
13 0.00 1.35 0.00 0.73 15.30 62.76 22.66 292.50 0.4039 -839.0 -727.6
14 0.00 1.80 0.00 0.99 18.92 63.17 23.06 300.28 0.4309 -849.0 -666.2
15 1.80 13.21 0.98 7.17 16.59 62.81 22.71 295.45 0.4115 -903.0 -836.5
16 34.97 98.61 19.01 53.61 17.40 62.57 22.47 297.50 0.4129 -1122.0 -398.3
17 4.94 -15.00 2.68 -15.00 16.54 62.40 22.30 295.71 0.4053 -1100.6 999999
18 0.00 2.79 0.00 1.52 18.34 62.35 22.25 299.79 0.4159 -832.0 -678.0
19 1.62 2.07 0.89 1.13 20.07 62.57 22.47 303.26 0.4310 -876.7 -773.4
20 0.00 4.85 0.00 2.62 17.03 61.81 21.71 297.36 0.3999 -531.0 -470.5
21 0.00 1.62 0.00 0.88 17.53 61.84 21.73 298.47 0.4034 -827.0 -671.4
22 0.00 10.25 0.00 5.53 17.36 61.40 21.30 298.51 0.3962 -688.0 -916.0
23 0.00 1.71 0.00 0.92 17.76 61.39 21.28 299.45 0.3987 -891.0 -673.7
24 0.00 1.35 0.00 0.73 18.85 61.39 21.29 301.88 0.4063 -993.0 -770.7
25 0.00 5.21 0.00 2.81 17.93 61.13 21.03 300.09 0.3963 -1040.0 -879.0
26 0.00 1.26 0.00 0.68 20.26 61.17 21.07 305.16 0.4142 -644.0 -533.4
27 1.35 1.62 0.73 0.87 18.90 60.91 20.81 302.51 0.4003 -905.0 -814.0
28 0.00 1.98 0.00 1.08 20.42 61.02 20.92 305.67 0.4136 -668.0 -647.0
29 1.17 4.31 0.63 2.31 17.18 60.57 20.46 298.93 0.3833 -1070.1 -857.5
30 0.00 4.94 0.00 2.67 19.21 60.82 20.72 303.31 0.4014 -588.0 -557.1
31 0.00 2.70 0.00 1.45 17.55 60.61 20.51 299.75 0.3864 -831.0 -712.8
32 0.00 1.35 0.00 0.73 19.99 60.89 20.79 304.91 0.4084 -991.0 -848.2
33 0.00 10.79 0.00 5.85 20.40 60.71 20.60 306.00 0.4094 -980.0 -838.2
34 0.00 1.71 0.00 0.92 20.52 60.24 20.14 306.80 0.4044 -787.0 -692.7
35 2.43 2.97 1.29 1.58 16.94 59.63 19.53 299.35 0.3684 -939.7 -917.0
36 0.00 1.08 0.00 0.58 19.81 59.83 19.73 305.80 0.3933 -650.0 -443.4
37 0.00 0.81 0.00 0.44 19.66 59.81 19.71 305.48 0.3917 -799.0 -645.6
38 0.00 1.62 0.00 0.86 16.79 59.38 19.28 299.28 0.3639 -958.0 -738.8
39 2.70 440.39 1.46 235.15 20.78 59.79 19.69 307.93 0.4010 -777.1 203.8
40 0.00 2.61 0.00 1.38 16.77 59.04 18.94 299.62 0.3590 -227.0 -220.1
41 0.00 1.44 0.00 0.76 16.32 58.73 18.62 298.83 0.3514 710.0 529.7
42 0.00 1.08 0.00 0.57 17.12 58.78 18.67 300.81 0.3578 668.0 502.0
43 0.00 1.26 0.00 0.67 17.31 58.79 18.69 301.25 0.3594 772.0 528.4
44 0.00 1.89 0.00 1.00 15.96 58.53 18.42 298.12 0.3460 805.0 760.9
45 16.00 -39.00 8.49 -39.00 18.19 58.28 18.18 304.07 0.3594 1296.5 999999
46 0.00 1.08 0.00 0.57 16.07 58.07 17.97 298.95 0.3402 960.0 763.3
47 33.62 -39.00 17.89 -39.00 19.03 58.24 18.14 306.12 0.3659 1319.8 999999
48 1.35 -39.00 0.72 -39.00 18.48 58.15 18.05 304.93 0.3599 1205.1 999999
49 14.02 -39.00 7.50 -39.00 20.43 58.24 18.14 309.28 0.3784 1027.8 999999
50 0.00 2.43 0.00 1.29 19.92 57.87 17.77 308.66 0.3690 235.0 503.6
51 0.00 1.53 0.00 0.81 18.12 57.67 17.57 304.73 0.3506 821.0 655.1
52 0.45 15.01 0.24 7.95 19.02 57.64 17.53 306.95 0.3579 1172.8 911.4
53 0.00 3.51 0.00 1.87 20.18 57.60 17.49 309.65 0.3680 714.0 592.8
54 0.00 1.44 0.00 0.76 20.13 57.15 17.05 310.21 0.3620 742.0 635.2
55 0.00 1.17 0.00 0.62 19.57 56.99 16.89 309.20 0.3547 947.0 778.6
56 0.00 1.53 0.00 0.81 19.42 56.94 16.84 308.92 0.3526 1009.0 803.0
57 0.00 1.80 0.00 0.95 19.92 56.93 16.82 310.09 0.3572 853.0 785.0
58 9.26 13.66 4.80 7.09 13.93 56.25 16.15 294.99 0.2992 1064.3 809.7
59 0.00 0.99 0.00 0.53 21.36 56.92 16.82 313.24 0.3715 586.0 545.3
60 0.00 0.54 0.00 0.29 20.74 56.75 16.64 312.19 0.3631 700.0 550.7
61 0.00 2.61 0.00 1.38 20.62 56.40 16.29 312.51 0.3577 971.0 807.8
62 7.55 13.21 3.91 6.84 13.97 55.77 15.67 295.75 0.2922 1136.4 731.1
63 0.00 2.07 0.00 1.07 13.95 55.38 15.27 296.21 0.2862 1023.0 762.8
64 0.00 1.26 0.00 0.65 13.66 55.16 15.06 295.52 0.2810 706.0 525.2
65 0.00 0.90 0.00 0.47 20.61 54.88 14.78 315.10 0.3397 983.0 761.6
66 0.00 1.62 0.00 0.85 20.13 54.23 14.13 315.24 0.3270 843.0 699.1
67 0.00 1.08 0.00 0.57 21.70 52.64 12.54 321.88 0.3282 669.0 562.3
68 0.00 1.80 0.00 0.94 21.68 52.44 12.34 322.26 0.3258 843.0 622.1
69 0.00 0.90 0.00 0.46 15.62 51.77 11.67 308.11 0.2487 769.0 584.5


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
