group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11271	166.93	898.39	89.92	484.79	18.04	60.18	20.63	301.08	0.3936	19.2	-40.8

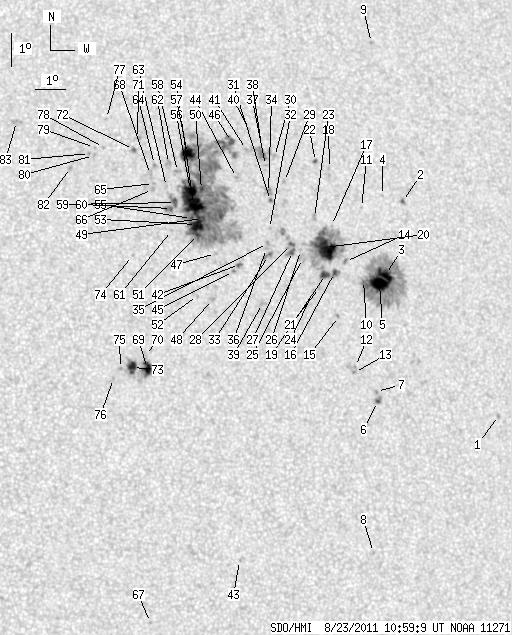

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-08-23 10:59:09 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	2.07	0.00	1.16	11.94	67.92	28.36	282.26	0.4776	-785.0	-562.4
2	1.44	1.71	0.81	0.96	18.66	65.46	25.91	297.36	0.4680	802.2	735.7
3	10.79	167.28	5.95	92.25	16.45	64.53	24.98	293.44	0.4432	-1084.8	-373.6
4	0.00	0.90	0.00	0.50	18.88	64.79	25.23	298.32	0.4601	514.0	373.6
5	16.63	-3.00	9.16	-3.00	16.18	64.28	24.73	293.04	0.4384	-1340.3	999999
6	1.71	3.87	0.93	2.11	12.59	63.79	24.24	285.14	0.4169	-982.2	-854.1
7	0.00	1.35	0.00	0.73	12.89	63.79	24.24	285.86	0.4178	-987.0	-817.9
8	0.00	0.90	0.00	0.49	8.01	63.29	23.74	274.09	0.4013	-662.0	-577.5
9	0.00	1.35	0.00	0.77	23.67	65.28	25.73	306.89	0.4991	-838.0	-631.7
10	0.81	-3.00	0.44	-3.00	16.30	63.74	24.19	293.67	0.4312	-825.7	999999
11	0.00	0.90	0.00	0.50	18.55	63.99	24.44	298.28	0.4473	652.0	458.2
12	0.00	0.72	0.00	0.39	13.69	63.16	23.61	288.07	0.4110	-819.0	-646.1
13	0.00	1.35	0.00	0.73	13.51	63.10	23.55	287.67	0.4095	-971.0	-849.5
14	0.00	2.25	0.00	1.23	16.91	63.20	23.65	295.43	0.4267	-793.0	-612.6
15	0.00	1.08	0.00	0.59	15.24	62.75	23.20	291.98	0.4116	-899.0	-790.8
16	2.52	4.85	1.37	2.65	16.59	62.78	23.23	295.05	0.4190	-838.5	-736.0
17	0.00	0.81	0.00	0.44	18.04	62.87	23.32	298.17	0.4287	-40.0	-146.6
18	0.00	1.17	0.00	0.65	19.80	63.06	23.51	301.69	0.4429	-668.0	-489.4
19	5.12	104.90	2.79	57.22	16.54	62.46	22.91	295.20	0.4142	-1090.0	-479.7
20	27.86	-19.00	15.20	-19.00	17.37	62.54	22.98	297.00	0.4200	-1185.2	999999
21	0.00	1.53	0.00	0.83	16.16	62.21	22.66	294.51	0.4084	-801.0	-520.8
22	1.35	1.53	0.74	0.84	20.04	62.61	23.06	302.61	0.4386	-883.8	-776.0
23	0.00	2.97	0.00	1.62	18.31	62.32	22.77	299.25	0.4228	-762.0	-620.8
24	0.00	1.08	0.00	0.58	16.07	62.00	22.44	294.49	0.4048	-873.0	-660.9
25	0.00	6.02	0.00	3.26	17.07	61.74	22.19	297.01	0.4069	-351.0	-466.7
26	0.00	1.53	0.00	0.83	17.32	61.70	22.15	297.61	0.4079	-857.0	-645.7
27	3.06	20.31	1.65	10.99	17.30	61.43	21.87	297.83	0.4039	-1051.2	-746.0
28	2.25	-27.00	1.22	-27.00	17.52	61.42	21.87	298.33	0.4052	-973.1	999999
29	0.00	1.80	0.00	0.98	19.47	61.44	21.89	302.60	0.4190	-828.0	-687.8
30	0.00	1.62	0.00	0.88	20.26	61.21	21.66	304.51	0.4219	-578.0	-490.1
31	0.00	1.35	0.00	0.73	18.90	60.88	21.33	301.97	0.4073	-1051.0	-970.9
32	0.00	0.99	0.00	0.53	18.04	60.73	21.18	300.20	0.3992	-694.0	-572.9
33	0.00	4.67	0.00	2.51	17.21	60.60	21.04	298.42	0.3917	-907.0	-872.3
34	0.00	5.21	0.00	2.83	19.15	60.85	21.29	302.55	0.4087	-813.0	-608.4
35	0.00	1.89	0.00	1.02	17.58	60.61	21.06	299.27	0.3943	-917.0	-724.9
36	0.00	1.44	0.00	0.77	17.43	60.56	21.00	298.97	0.3925	-298.0	-305.7
37	0.00	1.26	0.00	0.68	20.00	60.86	21.31	304.34	0.4153	-916.0	-733.9
38	0.00	12.85	0.00	7.00	20.40	60.81	21.26	305.25	0.4179	-938.0	-775.5
39	0.00	2.88	0.00	1.54	15.75	60.23	20.68	295.25	0.3773	646.0	462.5
40	0.00	1.17	0.00	0.64	21.14	60.47	20.92	307.16	0.4195	-663.0	-500.3
41	0.00	0.81	0.00	0.44	20.52	60.27	20.72	306.11	0.4119	-864.0	-694.0
42	1.53	2.25	0.82	1.20	16.98	59.59	20.03	298.90	0.3759	-900.9	-873.2
43	0.00	0.72	0.00	0.38	7.97	58.87	19.32	274.23	0.3300	-740.0	-604.0
44	0.00	1.35	0.00	0.73	19.66	59.81	20.26	304.83	0.3990	-768.0	-648.0
45	0.00	1.53	0.00	0.81	16.77	59.36	19.81	298.64	0.3713	-881.0	-776.5
46	3.06	432.79	1.66	231.81	20.79	59.79	20.24	307.25	0.4081	-835.8	204.4
47	0.00	0.72	0.00	0.38	17.35	58.82	19.27	300.66	0.3677	614.0	433.6
48	0.00	2.34	0.00	1.24	15.94	58.57	19.02	297.39	0.3544	781.0	702.4
49	0.99	-46.00	0.53	-46.00	18.44	58.50	18.95	303.67	0.3718	934.0	999999
50	1.53	-46.00	0.82	-46.00	19.34	58.58	19.02	305.65	0.3801	544.8	999999
51	1.35	-46.00	0.72	-46.00	17.95	58.28	18.73	302.79	0.3649	1151.5	999999
52	0.00	0.45	0.00	0.24	16.08	58.09	18.53	298.30	0.3484	842.0	711.2
53	13.03	-46.00	6.94	-46.00	18.26	58.28	18.73	303.53	0.3673	1302.2	999999
54	22.56	-46.00	12.03	-46.00	18.89	58.25	18.70	305.03	0.3720	1338.7	999999
55	0.99	-46.00	0.53	-46.00	18.46	58.13	18.58	304.17	0.3669	1268.8	999999
56	11.86	-46.00	6.34	-46.00	19.32	58.20	18.65	306.10	0.3750	1184.1	999999
57	12.85	-46.00	6.90	-46.00	20.47	58.24	18.69	308.60	0.3857	1026.4	999999
58	0.00	2.61	0.00	1.39	19.93	57.83	18.28	307.97	0.3756	526.0	459.6
59	4.13	14.56	2.20	7.74	18.97	57.65	18.10	306.03	0.3648	1071.5	820.2
60	1.71	-59.00	0.91	-59.00	18.79	57.50	17.94	305.82	0.3612	1054.6	999999
61	0.00	0.72	0.00	0.38	18.11	57.42	17.87	304.29	0.3545	751.0	558.8
62	0.00	3.33	0.00	1.78	20.19	57.56	18.00	308.93	0.3745	699.0	603.6
63	0.00	1.53	0.00	0.81	19.48	57.41	17.85	307.55	0.3661	784.0	570.0
64	0.00	1.17	0.00	0.62	20.17	57.08	17.53	309.59	0.3684	721.0	619.5
65	0.00	1.08	0.00	0.57	19.58	56.98	17.43	308.41	0.3616	931.0	794.1
66	0.00	2.43	0.00	1.29	19.40	56.92	17.37	308.07	0.3592	857.0	742.0
67	0.00	0.90	0.00	0.46	6.19	55.94	16.39	268.25	0.2819	-909.0	-712.5
68	0.00	4.49	0.00	2.39	19.87	56.91	17.36	309.16	0.3634	905.0	686.6
69	8.00	18.70	4.16	9.72	13.91	56.25	16.70	294.28	0.3074	1048.2	578.8
70	0.00	2.25	0.00	1.17	14.31	56.22	16.67	295.53	0.3093	520.0	442.2
71	0.00	2.79	0.00	1.49	21.00	56.60	17.05	312.13	0.3706	746.0	652.8
72	1.53	2.07	0.81	1.10	20.66	56.42	16.87	311.67	0.3651	865.0	733.5
73	8.27	12.04	4.29	6.25	13.95	55.77	16.22	295.00	0.3003	1121.2	703.8
74	0.00	0.54	0.00	0.28	17.38	56.05	16.50	304.41	0.3299	675.0	541.5
75	0.00	1.89	0.00	0.98	13.94	55.38	15.82	295.43	0.2943	1000.0	745.6
76	0.00	1.08	0.00	0.56	13.64	55.13	15.58	294.79	0.2887	755.0	615.9
77	0.00	1.08	0.00	0.57	21.66	55.62	16.07	315.09	0.3660	740.0	526.7
78	0.00	1.17	0.00	0.62	20.76	55.42	15.87	313.52	0.3541	788.0	556.1
79	0.00	1.26	0.00	0.67	20.77	55.12	15.57	314.05	0.3507	644.0	535.6
80	0.00	0.99	0.00	0.52	20.52	55.06	15.51	313.61	0.3473	789.0	673.7
81	0.00	1.26	0.00	0.66	20.59	54.93	15.38	313.98	0.3465	910.0	790.9
82	0.00	1.89	0.00	0.99	20.17	54.25	14.70	314.27	0.3341	843.0	675.5
83	0.00	4.04	0.00	2.12	21.66	52.59	13.04	320.74	0.3327	809.0	625.8

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
