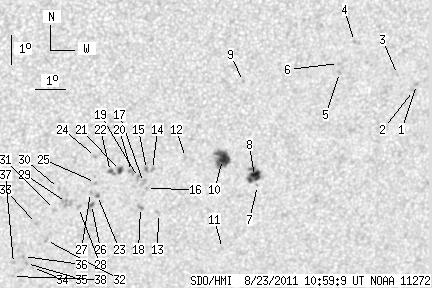

SDO HMI 2011-08-23 10:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.45 | 106.41 | 19.45 | 61.79 | -21.20 | 53.47 | 13.92 | 205.52 | 0.5242 | 36.9 | -181.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-23 10:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.06 | -18.44 | 61.24 | 21.69 | 219.79 | 0.5499 | 755.0 | 571.4 | |
| 0.00 | 2.25 | 0.00 | 1.33 | -18.64 | 61.16 | 21.61 | 219.45 | 0.5513 | 771.0 | 550.9 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -18.08 | 60.54 | 20.99 | 219.33 | 0.5394 | 769.0 | 600.3 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -16.91 | 58.95 | 19.39 | 218.59 | 0.5114 | 816.0 | 615.1 | |
| 0.00 | 1.71 | 0.00 | 0.99 | -17.92 | 58.55 | 19.00 | 216.77 | 0.5195 | 795.0 | 603.4 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -17.62 | 58.49 | 18.93 | 217.04 | 0.5154 | 671.0 | 481.6 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -21.66 | 56.21 | 16.66 | 209.32 | 0.5462 | 612.0 | 421.8 | |
| 9.17 | 15.73 | 5.39 | 9.25 | -21.35 | 56.07 | 16.52 | 209.42 | 0.5412 | 887.8 | 748.4 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -18.10 | 55.36 | 15.81 | 211.70 | 0.4948 | 731.0 | 500.9 | |
| 16.63 | 21.12 | 9.66 | 12.28 | -20.72 | 54.92 | 15.37 | 208.28 | 0.5251 | 923.1 | 628.5 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -23.83 | 55.27 | 15.72 | 206.02 | 0.5672 | 647.0 | 445.8 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -20.61 | 53.67 | 14.11 | 206.41 | 0.5151 | 656.0 | 542.0 | |
| 0.00 | 2.16 | 0.00 | 1.26 | -22.52 | 52.95 | 13.39 | 203.62 | 0.5360 | -689.0 | -549.7 | |
| 0.00 | 2.61 | 0.00 | 1.50 | -20.99 | 52.60 | 13.05 | 204.34 | 0.5134 | -705.0 | -500.8 | |
| 1.08 | 2.07 | 0.62 | 1.19 | -20.99 | 52.40 | 12.85 | 204.02 | 0.5121 | -754.0 | -519.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -21.64 | 52.46 | 12.91 | 203.57 | 0.5213 | -618.0 | -495.4 | |
| 0.00 | 3.51 | 0.00 | 2.03 | -21.43 | 52.34 | 12.79 | 203.55 | 0.5177 | -561.0 | -553.3 | |
| 0.00 | 2.70 | 0.00 | 1.57 | -22.30 | 52.32 | 12.77 | 202.81 | 0.5293 | -795.0 | -632.1 | |
| 0.00 | 2.34 | 0.00 | 1.35 | -21.25 | 52.16 | 12.60 | 203.39 | 0.5142 | -895.0 | -700.0 | |
| 0.00 | 2.79 | 0.00 | 1.60 | -21.04 | 51.91 | 12.35 | 203.15 | 0.5098 | -813.0 | -652.4 | |
| 2.61 | 3.24 | 1.50 | 1.86 | -21.00 | 51.54 | 11.98 | 202.57 | 0.5071 | -818.7 | -708.6 | |
| 1.62 | 3.78 | 0.93 | 2.17 | -21.02 | 51.21 | 11.65 | 201.99 | 0.5056 | -890.5 | -786.3 | |
| 1.62 | 1.62 | 0.93 | 0.93 | -21.84 | 50.84 | 11.29 | 200.75 | 0.5149 | -600.1 | 0.0 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -20.49 | 50.67 | 11.12 | 201.48 | 0.4952 | -760.0 | -641.6 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -21.39 | 50.74 | 11.18 | 200.91 | 0.5081 | -743.0 | -633.9 | |
| 0.72 | 3.33 | 0.42 | 1.93 | -22.15 | 50.66 | 11.11 | 200.23 | 0.5183 | -885.9 | -618.5 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -21.73 | 50.60 | 11.04 | 200.42 | 0.5121 | -659.0 | -480.4 | |
| 0.00 | 1.80 | 0.00 | 1.04 | -22.24 | 50.24 | 10.69 | 199.45 | 0.5174 | -832.0 | -660.5 | |
| 0.00 | 7.91 | 0.00 | 4.56 | -22.06 | 49.82 | 10.27 | 198.88 | 0.5128 | -953.0 | -709.9 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -21.57 | 49.52 | 9.97 | 198.69 | 0.5044 | -736.0 | -609.6 | |
| 0.00 | 1.89 | 0.00 | 1.09 | -22.29 | 49.44 | 9.89 | 198.07 | 0.5143 | -649.0 | -508.9 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -23.37 | 49.25 | 9.70 | 197.08 | 0.5288 | -649.0 | -649.4 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -22.77 | 48.88 | 9.32 | 196.81 | 0.5186 | -69.0 | -128.8 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -24.32 | 48.85 | 9.30 | 195.88 | 0.5404 | -587.0 | -497.2 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -24.17 | 48.64 | 9.09 | 195.61 | 0.5375 | -795.0 | -688.4 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -23.92 | 48.52 | 8.97 | 195.56 | 0.5335 | -832.0 | -672.3 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -24.16 | 48.20 | 8.65 | 194.90 | 0.5357 | -719.0 | -585.9 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -24.62 | 48.20 | 8.65 | 194.66 | 0.5422 | -626.0 | -478.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
