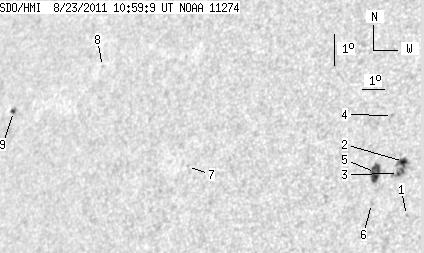

SDO HMI 2011-08-23 10:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.24 | 40.37 | 12.56 | 26.51 | 18.80 | 359.41 | -40.14 | 68.93 | 0.6522 | -490.0 | -445.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-23 10:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.50 | 17.35 | 2.84 | -36.71 | 70.40 | 0.6080 | -673.0 | -453.0 | |
| 3.51 | 17.89 | 2.21 | 11.27 | 19.00 | 2.31 | -37.24 | 67.95 | 0.6197 | -806.4 | -730.2 | |
| 1.26 | -2.00 | 0.79 | -2.00 | 18.61 | 2.21 | -37.35 | 68.58 | 0.6198 | -851.9 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.80 | 20.38 | 1.48 | -38.08 | 66.10 | 0.6346 | -613.0 | -525.8 | |
| 13.03 | 14.11 | 8.31 | 8.99 | 18.58 | 1.28 | -38.27 | 68.95 | 0.6313 | -727.3 | -654.5 | |
| 0.00 | 1.44 | 0.00 | 0.91 | 17.62 | 1.37 | -38.18 | 70.42 | 0.6276 | -663.0 | -559.9 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 18.13 | 353.27 | -46.29 | 71.54 | 0.7265 | 709.0 | 582.6 | |
| 0.00 | 0.81 | 0.00 | 0.65 | 20.82 | 347.99 | -51.57 | 68.91 | 0.7870 | 513.0 | 461.3 | |
| 1.44 | 3.24 | 1.25 | 2.81 | 19.02 | 344.01 | -55.54 | 71.65 | 0.8234 | 497.7 | 504.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
