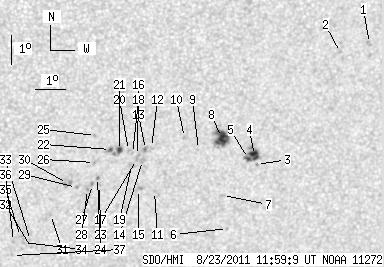

SDO HMI 2011-08-23 11:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.98 | 97.76 | 15.15 | 56.94 | -21.38 | 53.31 | 14.30 | 205.98 | 0.5282 | -78.4 | -146.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-23 11:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.61 | 0.00 | 1.52 | -17.69 | 59.57 | 20.56 | 219.23 | 0.5311 | 555.0 | 538.8 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -17.95 | 58.61 | 19.61 | 217.60 | 0.5253 | 707.0 | 584.1 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -21.65 | 56.20 | 17.20 | 210.11 | 0.5499 | 483.0 | 390.1 | |
| 5.48 | 15.46 | 3.23 | 9.12 | -21.34 | 56.10 | 17.09 | 210.27 | 0.5453 | 903.7 | 764.8 | |
| 1.71 | -4.00 | 1.01 | -4.00 | -21.43 | 55.90 | 16.90 | 209.89 | 0.5450 | 796.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -23.86 | 55.49 | 16.48 | 207.07 | 0.5724 | 528.0 | 429.5 | |
| 0.00 | 1.80 | 0.00 | 1.07 | -22.69 | 55.17 | 16.16 | 207.65 | 0.5556 | 546.0 | 336.5 | |
| 14.56 | 23.10 | 8.48 | 13.46 | -20.68 | 54.90 | 15.90 | 209.15 | 0.5283 | 935.3 | 598.7 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -21.06 | 54.17 | 15.16 | 207.65 | 0.5281 | 587.0 | 471.2 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -20.63 | 53.65 | 14.65 | 207.25 | 0.5190 | 773.0 | 544.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -22.47 | 52.83 | 13.83 | 204.34 | 0.5379 | -672.0 | -434.4 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -20.94 | 52.58 | 13.58 | 205.25 | 0.5160 | -641.0 | -545.3 | |
| 0.00 | 1.98 | 0.00 | 1.14 | -21.00 | 52.38 | 13.38 | 204.88 | 0.5156 | -924.0 | -710.0 | |
| 0.00 | 3.42 | 0.00 | 1.98 | -21.38 | 52.32 | 13.32 | 204.45 | 0.5202 | -672.0 | -565.5 | |
| 0.00 | 2.79 | 0.00 | 1.63 | -22.38 | 52.28 | 13.28 | 203.56 | 0.5334 | -503.0 | -548.8 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -21.20 | 52.14 | 13.13 | 204.30 | 0.5167 | -649.0 | -656.0 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -21.34 | 52.11 | 13.11 | 204.15 | 0.5184 | -739.0 | -666.7 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -21.13 | 51.96 | 12.96 | 204.08 | 0.5147 | -828.0 | -659.1 | |
| 0.00 | 2.70 | 0.00 | 1.56 | -21.54 | 51.97 | 12.96 | 203.74 | 0.5203 | -345.0 | -279.1 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -21.02 | 51.82 | 12.82 | 203.94 | 0.5123 | -752.0 | -518.3 | |
| 2.70 | 10.07 | 1.55 | 5.79 | -21.01 | 51.52 | 12.52 | 203.45 | 0.5104 | -834.8 | -653.6 | |
| 1.53 | -21.00 | 0.88 | -21.00 | -20.97 | 51.22 | 12.21 | 202.98 | 0.5080 | -870.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -22.21 | 50.95 | 11.95 | 201.57 | 0.5235 | -577.0 | -518.4 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -21.93 | 50.86 | 11.86 | 201.63 | 0.5192 | -694.0 | -678.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -20.48 | 50.68 | 11.68 | 202.47 | 0.4981 | -758.0 | -652.3 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -21.40 | 50.72 | 11.72 | 201.80 | 0.5112 | -755.0 | -621.3 | |
| 0.00 | 1.80 | 0.00 | 1.04 | -22.16 | 50.72 | 11.71 | 201.21 | 0.5217 | -1015.0 | -794.9 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -22.33 | 50.56 | 11.56 | 200.84 | 0.5232 | -671.0 | -596.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -22.26 | 50.19 | 11.19 | 200.28 | 0.5202 | -822.0 | -655.1 | |
| 0.00 | 5.66 | 0.00 | 3.27 | -22.11 | 49.88 | 10.87 | 199.86 | 0.5165 | -689.0 | -727.5 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -23.18 | 49.39 | 10.39 | 198.33 | 0.5291 | -754.0 | -635.4 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -24.33 | 48.84 | 9.84 | 196.74 | 0.5428 | -605.0 | -524.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -24.08 | 48.79 | 9.79 | 196.80 | 0.5391 | -714.0 | -601.1 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -24.15 | 48.56 | 9.56 | 196.39 | 0.5391 | -688.0 | -621.6 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -23.93 | 48.44 | 9.44 | 196.32 | 0.5355 | -717.0 | -584.7 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -24.10 | 48.22 | 9.22 | 195.86 | 0.5371 | -646.0 | -638.2 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -24.60 | 48.22 | 9.22 | 195.59 | 0.5441 | -642.0 | -481.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
