Sunspot Group 11271

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11271	168.16	873.46	91.18	475.13	18.07	60.30	21.85	299.93	0.4104	30.2	-25.6

previous or next observation for the same group / back to the solar disc

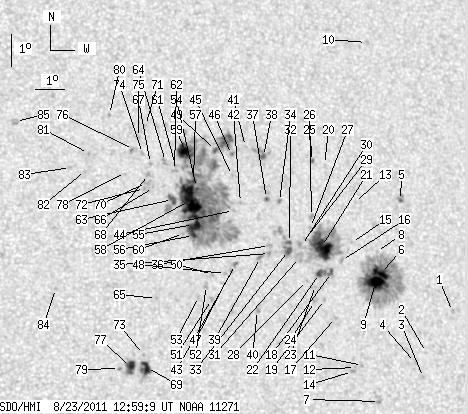

SDO HMI 2011-08-23 12:59:09 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.71	0.00	0.97	15.15	66.84	28.39	288.83	0.4868	-623.0	-581.9
2	0.00	1.17	0.00	0.65	13.95	65.75	27.30	286.85	0.4670	-667.0	-404.2
3	0.00	0.99	0.00	0.55	13.20	65.55	27.10	285.33	0.4618	-741.0	-668.6
4	0.00	1.89	0.00	1.05	13.67	65.33	26.88	286.42	0.4599	-820.0	-700.0
5	1.08	4.22	0.61	2.39	18.65	65.54	27.09	296.52	0.4841	842.1	645.5
6	7.91	176.39	4.40	98.15	16.45	64.48	26.02	292.77	0.4582	-1081.0	-362.6
7	0.00	1.98	0.00	1.09	12.55	63.95	25.50	284.52	0.4359	-976.0	-794.7
8	0.00	1.08	0.00	0.60	17.13	64.44	25.98	294.21	0.4609	82.0	68.1
9	15.10	-6.00	8.39	-6.00	16.18	64.26	25.81	292.34	0.4539	-1335.8	999999
10	0.00	2.07	0.00	1.19	23.64	65.28	26.83	305.86	0.5122	-716.0	-520.8
11	0.00	1.26	0.00	0.69	13.67	63.49	25.04	287.28	0.4325	-763.0	-565.9
12	0.00	0.99	0.00	0.54	13.62	63.24	24.79	287.29	0.4286	-712.0	-625.6
13	0.00	0.27	0.00	0.15	18.68	63.90	25.45	297.75	0.4618	495.0	383.0
14	0.00	2.07	0.00	1.13	13.51	63.13	24.68	287.08	0.4265	-916.0	-763.7
15	0.00	0.99	0.00	0.55	17.45	63.60	25.15	295.46	0.4509	-419.0	-327.9
16	0.00	1.98	0.00	1.09	16.92	63.18	24.72	294.63	0.4420	-460.0	-398.0
17	0.00	1.17	0.00	0.64	15.18	62.74	24.29	291.12	0.4273	-847.0	-679.2
18	2.25	12.49	1.23	6.85	16.56	62.78	24.33	294.16	0.4346	-828.1	-837.4
19	0.00	1.44	0.00	0.79	15.75	62.43	23.98	292.60	0.4254	-627.0	-602.2
20	0.00	0.90	0.00	0.50	19.90	63.03	24.58	300.92	0.4578	-572.0	-430.4
21	33.43	85.01	18.38	46.79	17.38	62.54	24.09	296.10	0.4356	-1115.3	-355.1
22	3.77	-18.00	2.07	-18.00	16.55	62.36	23.91	294.44	0.4285	-1062.9	999999
23	0.00	0.45	0.00	0.25	16.19	62.18	23.72	293.78	0.4240	-577.0	-653.8
24	0.00	1.53	0.00	0.83	15.70	62.08	23.63	292.75	0.4201	-906.0	-747.7
25	0.54	1.89	0.30	1.05	20.02	62.63	24.18	301.51	0.4532	-906.2	-720.9
26	0.00	2.79	0.00	1.53	18.32	62.33	23.88	298.28	0.4382	-773.0	-613.9
27	0.00	1.62	0.00	0.89	17.98	62.25	23.79	297.64	0.4350	-824.0	-596.9
28	0.00	1.17	0.00	0.64	16.36	61.92	23.47	294.34	0.4212	-842.0	-662.2
29	0.00	0.99	0.00	0.54	17.65	62.02	23.57	297.11	0.4299	-860.0	-749.0
30	0.00	4.76	0.00	2.61	17.44	61.86	23.41	296.80	0.4263	-744.0	-584.9
31	0.00	6.56	0.00	3.58	17.08	61.74	23.29	296.09	0.4225	-503.0	-478.4
32	1.89	21.66	1.03	11.81	17.55	61.46	23.01	297.38	0.4214	-928.7	-689.4
33	4.40	-32.00	2.40	-32.00	17.31	61.39	22.94	296.90	0.4190	-1039.6	999999
34	0.00	1.89	0.00	1.03	18.83	61.29	22.84	300.30	0.4272	-993.0	-876.9
35	0.00	2.52	0.00	1.36	17.25	60.73	22.28	297.34	0.4093	-1125.0	-875.7
36	0.00	2.70	0.00	1.46	17.49	60.76	22.31	297.86	0.4112	-784.0	-734.1
37	1.26	1.80	0.69	0.98	18.95	60.85	22.40	300.96	0.4221	-1036.2	-811.0
38	2.70	11.23	1.48	6.17	20.25	60.94	22.49	303.61	0.4327	-954.7	-749.3
39	0.00	3.23	0.00	1.75	17.14	60.41	21.95	297.38	0.4040	-946.0	-729.5
40	0.00	1.98	0.00	1.06	15.52	60.11	21.66	293.82	0.3904	623.0	488.0
41	0.00	0.72	0.00	0.39	20.59	60.36	21.91	304.91	0.4278	-683.0	-563.5
42	0.00	1.62	0.00	0.88	18.86	59.94	21.49	301.70	0.4092	-719.0	-470.5
43	0.00	2.52	0.00	1.35	16.96	59.53	21.08	297.79	0.3905	-938.0	-780.6
44	0.00	0.90	0.00	0.49	18.62	59.67	21.22	301.47	0.4038	-530.0	-441.5
45	0.00	1.08	0.00	0.59	19.71	59.78	21.33	303.71	0.4134	-756.0	-621.8
46	0.00	1.08	0.00	0.59	20.36	59.84	21.39	305.01	0.4192	-1033.0	-962.8
47	0.00	1.08	0.00	0.58	16.78	59.37	20.92	297.52	0.3872	-982.0	-813.7
48	0.00	0.72	0.00	0.39	16.70	59.16	20.71	297.53	0.3836	-707.0	-558.0
49	2.61	26.60	1.42	14.50	20.51	59.31	20.86	305.93	0.4135	-882.8	-721.0
50	0.00	1.17	0.00	0.62	16.68	58.72	20.27	297.95	0.3773	774.0	521.5
51	0.00	2.34	0.00	1.25	15.92	58.60	20.15	296.17	0.3707	710.0	650.4
52	0.00	3.41	0.00	1.82	16.35	58.48	20.03	297.38	0.3717	681.0	586.6
53	0.00	0.90	0.00	0.48	16.03	58.18	19.73	296.87	0.3653	778.0	585.1
54	0.72	393.05	0.39	211.67	19.39	58.50	20.05	304.48	0.3940	780.1	303.5
55	12.49	-54.00	6.69	-54.00	18.25	58.26	19.81	302.18	0.3818	1261.1	999999
56	2.16	-54.00	1.15	-54.00	17.91	58.22	19.77	301.43	0.3787	1010.0	999999
57	1.80	-54.00	0.97	-54.00	19.58	58.42	19.97	304.99	0.3945	562.5	999999
58	34.87	-54.00	18.72	-54.00	18.99	58.21	19.76	303.95	0.3870	1278.0	999999
59	18.69	-54.00	10.10	-54.00	20.52	58.27	19.82	307.21	0.4004	951.5	999999
60	0.00	1.08	0.00	0.58	17.98	57.89	19.44	301.99	0.3748	861.0	701.8
61	0.00	0.72	0.00	0.39	20.10	57.87	19.42	306.81	0.3917	797.0	645.4
62	0.00	2.16	0.00	1.16	19.94	57.82	19.37	306.55	0.3897	327.0	540.5
63	5.03	-54.00	2.69	-54.00	19.05	57.64	19.19	304.77	0.3798	1058.5	999999
64	0.00	3.59	0.00	1.93	20.23	57.55	19.10	307.53	0.3888	612.0	622.7
65	0.00	1.08	0.00	0.57	16.02	56.78	18.33	298.39	0.3450	825.0	666.2
66	0.00	0.90	0.00	0.48	19.44	57.04	18.59	306.45	0.3754	951.0	779.7
67	0.00	1.08	0.00	0.58	20.19	57.03	18.58	308.13	0.3818	738.0	628.4
68	0.00	2.97	0.00	1.59	19.85	56.92	18.47	307.54	0.3774	1021.0	741.0
69	6.29	14.65	3.29	7.66	13.92	56.26	17.81	293.13	0.3243	982.9	712.1
70	0.00	3.77	0.00	2.01	19.61	56.82	18.37	307.12	0.3740	823.0	730.3
71	0.00	1.17	0.00	0.63	21.38	57.01	18.56	310.69	0.3926	647.0	506.5
72	0.00	1.35	0.00	0.72	19.42	56.74	18.28	306.82	0.3712	984.0	765.9
73	0.00	0.90	0.00	0.47	14.32	56.20	17.75	294.36	0.3256	707.0	570.4
74	0.00	1.80	0.00	0.96	20.51	56.80	18.35	309.15	0.3818	844.0	549.0
75	0.00	1.89	0.00	1.01	21.02	56.73	18.27	310.33	0.3856	842.0	637.6
76	0.00	2.97	0.00	1.59	20.65	56.51	18.06	309.86	0.3795	877.0	701.2
77	9.17	13.21	4.78	6.89	13.94	55.74	17.29	293.74	0.3165	1082.7	755.2
78	0.00	0.54	0.00	0.29	19.94	56.15	17.70	308.82	0.3684	380.0	461.7
79	0.00	1.53	0.00	0.80	13.92	55.38	16.93	294.08	0.3109	895.0	728.9
80	0.00	1.08	0.00	0.58	21.77	55.83	17.38	313.23	0.3823	703.0	523.9
81	0.00	1.26	0.00	0.67	20.58	54.97	16.52	312.04	0.3600	938.0	749.4
82	0.00	0.90	0.00	0.48	20.05	54.81	16.36	311.12	0.3528	733.0	644.6
83	0.00	0.99	0.00	0.52	20.16	54.32	15.87	312.18	0.3479	867.0	668.7
84	0.00	1.44	0.00	0.75	16.44	53.48	15.03	304.13	0.3018	774.0	639.6
85	0.00	4.40	0.00	2.32	21.65	52.63	14.17	318.47	0.3448	708.0	682.7

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
