groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11271 157.80 883.12 86.00 481.93 18.14 60.21 22.31 299.61 0.4173 -12.8 -15.1


previous   or   next   observation for the same group / back to the solar disc

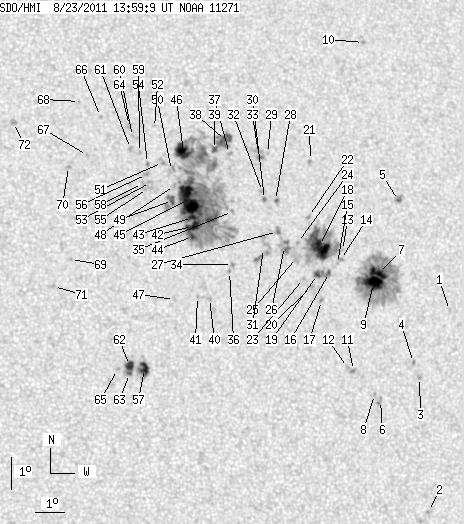

SDO HMI 2011-08-23 13:59:09 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.44 0.00 0.82 15.18 66.83 28.93 288.65 0.4947 -578.0 -547.6
2 0.00 1.98 0.00 1.10 9.12 65.39 27.49 276.41 0.4605 -809.0 -511.8
3 0.00 1.80 0.00 1.01 13.20 65.49 27.59 285.15 0.4691 -907.0 -630.3
4 0.00 1.98 0.00 1.11 13.67 65.34 27.44 286.19 0.4682 -795.0 -664.2
5 1.89 4.58 1.07 2.61 18.65 65.56 27.66 296.13 0.4919 824.7 672.4
6 0.00 2.96 0.00 1.64 12.58 64.06 26.16 284.33 0.4460 -817.0 -738.8
7 8.72 164.96 4.87 92.20 16.45 64.49 26.59 292.42 0.4663 -1065.2 -378.6
8 0.00 1.35 0.00 0.74 12.77 63.87 25.97 284.83 0.4437 -843.0 -608.3
9 16.98 -7.00 9.48 -7.00 16.15 64.27 26.37 291.94 0.4618 -1328.3 999999
10 0.00 1.71 0.00 0.99 23.64 65.29 27.39 305.39 0.5190 -804.0 -690.1
11 0.00 2.07 0.00 1.14 13.54 63.23 25.33 286.82 0.4364 -994.0 -854.7
12 0.00 1.98 0.00 1.09 13.64 63.04 25.14 287.15 0.4338 -856.0 -704.3
13 0.00 1.08 0.00 0.60 17.22 63.33 25.43 294.77 0.4536 80.0 60.4
14 0.00 1.62 0.00 0.90 16.95 63.22 25.32 294.28 0.4507 -601.0 -398.1
15 0.00 1.17 0.00 0.65 16.83 63.10 25.20 294.11 0.4484 -659.0 -442.2
16 1.44 10.42 0.79 5.74 16.57 62.78 24.89 293.77 0.4425 -766.7 -922.6
17 0.00 1.53 0.00 0.84 15.73 62.39 24.49 292.20 0.4328 -826.0 -708.6
18 31.27 87.33 17.27 48.24 17.41 62.56 24.66 295.74 0.4437 -1101.6 -464.7
19 3.14 -16.00 1.73 -16.00 16.53 62.36 24.46 293.98 0.4363 -1026.1 999999
20 0.00 1.89 0.00 1.03 16.17 62.11 24.21 293.38 0.4308 -885.0 -673.9
21 0.00 1.80 0.00 1.00 20.05 62.65 24.75 301.07 0.4610 -866.0 -670.0
22 0.00 2.07 0.00 1.14 18.32 62.30 24.40 297.86 0.4455 -738.0 -631.3
23 0.00 0.90 0.00 0.49 16.43 61.86 23.96 294.13 0.4286 -860.0 -614.9
24 0.00 1.44 0.00 0.79 17.54 61.81 23.91 296.60 0.4339 -867.0 -786.8
25 0.00 9.43 0.00 5.17 17.08 61.71 23.81 295.69 0.4300 -500.0 -431.2
26 0.00 15.90 0.00 8.70 17.44 61.34 23.44 296.76 0.4268 -768.0 -728.7
27 0.00 4.49 0.00 2.46 17.91 61.16 23.26 297.94 0.4272 -1009.0 -795.9
28 0.81 2.43 0.44 1.33 18.87 61.23 23.33 299.93 0.4342 -926.3 -803.4
29 0.00 1.26 0.00 0.69 20.34 61.18 23.28 303.00 0.4436 -683.0 -569.5
30 0.45 1.98 0.25 1.08 18.92 60.85 22.95 300.38 0.4294 -1090.8 -925.8
31 0.00 17.25 0.00 9.39 17.41 60.61 22.71 297.32 0.4164 -189.0 -651.4
32 0.00 2.88 0.00 1.58 19.17 60.82 22.92 300.94 0.4307 -522.0 -470.8
33 0.00 8.89 0.00 4.90 20.35 60.86 22.96 303.34 0.4396 -947.0 -814.1
34 0.00 2.79 0.00 1.50 16.97 59.49 21.59 297.33 0.3979 -935.0 -740.6
35 0.00 2.25 0.00 1.22 18.60 59.70 21.80 300.81 0.4115 -691.0 -510.2
36 0.00 1.44 0.00 0.77 16.76 59.36 21.46 296.95 0.3947 -940.0 -730.5
37 0.00 2.52 0.00 1.38 20.40 59.85 21.95 304.48 0.4268 -980.0 -788.9
38 12.31 26.15 6.74 14.31 20.81 59.78 21.88 305.40 0.4290 -873.7 -565.7
39 2.52 -38.00 1.37 -38.00 20.55 59.35 21.45 305.33 0.4215 -892.2 999999
40 0.00 1.89 0.00 1.01 15.96 58.60 20.70 295.75 0.3789 851.0 717.2
41 0.00 1.53 0.00 0.82 16.04 58.20 20.30 296.32 0.3736 671.0 507.5
42 8.18 407.45 4.39 220.24 18.19 58.28 20.38 301.41 0.3892 1291.2 312.0
43 2.52 -42.00 1.35 -42.00 18.47 58.31 20.41 302.00 0.3917 1267.2 999999
44 1.26 -42.00 0.68 -42.00 17.89 58.24 20.34 300.73 0.3865 1018.4 999999
45 29.65 -42.00 15.98 -42.00 19.03 58.25 20.35 303.34 0.3951 1303.5 999999
46 17.70 -42.00 9.59 -42.00 20.53 58.27 20.38 306.54 0.4076 966.2 999999
47 0.00 1.35 0.00 0.72 15.97 57.42 19.52 296.95 0.3620 773.0 533.0
48 0.00 1.89 0.00 1.02 19.49 57.83 19.93 304.84 0.3931 851.0 697.2
49 3.77 -42.00 2.03 -42.00 19.02 57.70 19.80 303.97 0.3878 1067.5 999999
50 0.00 5.21 0.00 2.81 19.95 57.78 19.88 305.92 0.3964 615.0 605.9
51 0.00 2.52 0.00 1.36 20.21 57.51 19.61 306.83 0.3951 781.0 644.5
52 0.00 0.45 0.00 0.24 21.32 57.38 19.48 309.30 0.4032 207.0 210.0
53 0.00 2.43 0.00 1.30 19.61 57.02 19.12 306.13 0.3837 662.0 631.7
54 0.00 1.62 0.00 0.87 20.20 56.99 19.09 307.47 0.3884 756.0 671.5
55 0.00 4.40 0.00 2.36 19.43 56.90 19.00 305.88 0.3805 811.0 758.9
56 0.00 1.80 0.00 0.96 19.86 56.92 19.02 306.83 0.3845 993.0 802.2
57 8.63 29.74 4.53 15.59 13.90 56.24 18.34 292.55 0.3321 1028.3 740.8
58 0.00 1.89 0.00 1.01 19.59 56.75 18.85 306.44 0.3799 732.0 743.5
59 0.00 1.62 0.00 0.87 20.56 56.77 18.87 308.53 0.3887 736.0 633.6
60 0.00 0.72 0.00 0.39 21.06 56.59 18.69 309.85 0.3912 737.0 623.9
61 0.00 2.70 0.00 1.45 20.69 56.48 18.58 309.22 0.3863 863.0 711.9
62 5.84 -57.00 3.06 -57.00 14.01 55.75 17.85 293.35 0.3254 1130.7 999999
63 0.72 -57.00 0.38 -57.00 13.77 55.73 17.83 292.66 0.3237 973.4 999999
64 0.00 2.52 0.00 1.35 21.41 56.53 18.63 310.65 0.3937 692.0 580.9
65 0.00 1.44 0.00 0.75 13.91 55.35 17.45 293.46 0.3187 863.0 679.2
66 0.00 1.35 0.00 0.72 21.73 55.58 17.68 312.68 0.3854 717.0 556.7
67 0.00 1.53 0.00 0.81 20.53 54.99 17.09 311.03 0.3664 819.0 665.1
68 0.00 1.35 0.00 0.72 22.22 54.92 17.02 314.69 0.3828 677.0 487.9
69 0.00 1.17 0.00 0.61 17.33 54.09 16.19 304.72 0.3253 632.0 556.5
70 0.00 1.35 0.00 0.71 20.20 54.31 16.41 311.39 0.3550 862.0 708.1
71 0.00 1.71 0.00 0.89 16.51 53.46 15.56 303.49 0.3098 969.0 678.2
72 0.00 3.77 0.00 2.00 21.63 52.61 14.71 317.42 0.3505 1010.0 732.4


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
