SDO HMI 2011-08-23 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.49 | 84.95 | 12.03 | 49.76 | -21.14 | 53.68 | 15.78 | 208.47 | 0.5360 | -21.9 | -134.5 | |
|
previous
or next observation for the same group /

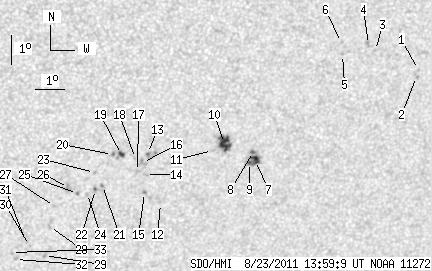

back to the solar disc SDO HMI 2011-08-23 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.65 | -18.49 | 61.29 | 23.39 | 221.85 | 0.5664 | 651.0 | 524.4 | |
| 0.00 | 2.25 | 0.00 | 1.35 | -18.73 | 61.25 | 23.35 | 221.52 | 0.5685 | 685.0 | 618.5 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -17.78 | 59.70 | 21.80 | 220.76 | 0.5438 | 638.0 | 527.6 | |
| 0.00 | 3.77 | 0.00 | 2.22 | -17.57 | 59.44 | 21.54 | 220.69 | 0.5389 | 648.0 | 616.4 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -17.86 | 58.59 | 20.69 | 219.19 | 0.5341 | 730.0 | 604.0 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -17.46 | 58.50 | 20.60 | 219.58 | 0.5289 | 712.0 | 574.7 | |
| 4.94 | 9.52 | 2.93 | 5.65 | -21.34 | 56.05 | 18.15 | 211.77 | 0.5532 | 874.4 | 778.1 | |
| 0.00 | 2.16 | 0.00 | 1.28 | -21.03 | 55.94 | 18.04 | 211.94 | 0.5486 | 969.0 | 852.3 | |
| 0.81 | -7.00 | 0.48 | -7.00 | -21.40 | 55.85 | 17.95 | 211.43 | 0.5524 | 866.8 | 999999 | |
| 12.13 | 19.32 | 7.11 | 11.32 | -20.71 | 54.92 | 17.02 | 210.79 | 0.5369 | 942.1 | 624.1 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -20.94 | 54.54 | 16.64 | 210.00 | 0.5369 | 307.0 | 258.5 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -22.71 | 52.97 | 15.07 | 206.03 | 0.5488 | -567.0 | -518.3 | |
| 0.36 | 5.30 | 0.21 | 3.08 | -20.96 | 52.35 | 14.45 | 206.63 | 0.5219 | -819.0 | -549.8 | |
| 0.00 | 2.16 | 0.00 | 1.26 | -21.69 | 52.36 | 14.46 | 205.99 | 0.5315 | -677.0 | -551.0 | |
| 0.00 | 1.80 | 0.00 | 1.06 | -22.31 | 52.39 | 14.49 | 205.49 | 0.5399 | -802.0 | -583.8 | |
| 0.00 | 4.13 | 0.00 | 2.40 | -21.27 | 52.21 | 14.31 | 206.13 | 0.5250 | -790.0 | -620.1 | |
| 0.00 | 2.79 | 0.00 | 1.62 | -21.57 | 52.07 | 14.17 | 205.65 | 0.5282 | -672.0 | -395.9 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -21.12 | 51.96 | 14.06 | 205.87 | 0.5215 | -789.0 | -663.7 | |
| 2.25 | 4.31 | 1.30 | 2.49 | -20.97 | 51.48 | 13.58 | 205.23 | 0.5164 | -863.6 | -756.7 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -20.96 | 51.18 | 13.28 | 204.75 | 0.5144 | -944.0 | -825.8 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -22.02 | 50.94 | 13.04 | 203.48 | 0.5272 | -841.0 | -680.3 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -22.16 | 50.72 | 12.82 | 203.01 | 0.5277 | -885.0 | -721.3 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -21.56 | 50.63 | 12.73 | 203.35 | 0.5192 | -776.0 | -655.5 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -22.29 | 50.46 | 12.56 | 202.50 | 0.5280 | -582.0 | -485.9 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -22.28 | 50.13 | 12.23 | 201.96 | 0.5260 | -733.0 | -609.3 | |
| 0.00 | 3.95 | 0.00 | 2.29 | -22.06 | 49.81 | 11.91 | 201.61 | 0.5213 | -939.0 | -770.4 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -22.71 | 49.39 | 11.49 | 200.45 | 0.5280 | -716.0 | -556.2 | |
| 0.00 | 2.16 | 0.00 | 1.26 | -23.41 | 49.28 | 11.38 | 199.79 | 0.5371 | -724.0 | -525.5 | |
| 0.00 | 1.89 | 0.00 | 1.12 | -24.43 | 49.21 | 11.31 | 198.99 | 0.5507 | -607.0 | -568.5 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -24.06 | 48.67 | 10.77 | 198.38 | 0.5432 | -679.0 | -649.9 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -23.95 | 48.56 | 10.66 | 198.27 | 0.5411 | -898.0 | -767.2 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -24.55 | 48.23 | 10.33 | 197.39 | 0.5480 | -627.0 | -509.6 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -24.30 | 48.08 | 10.18 | 197.30 | 0.5438 | -442.0 | -432.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
