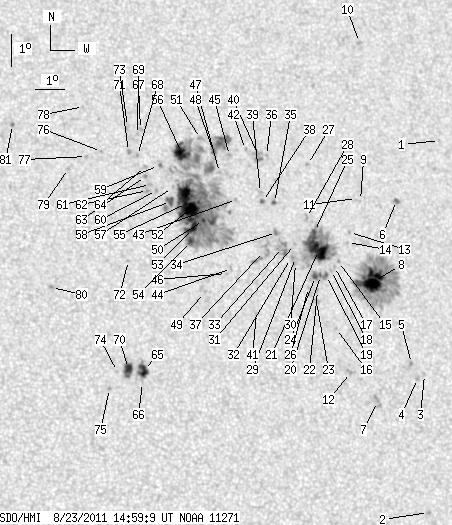

SDO HMI 2011-08-23 14:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 152.48 | 845.17 | 83.24 | 463.60 | 18.04 | 60.39 | 23.05 | 298.71 | 0.4267 | 86.5 | -82.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-23 14:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.53 | 20.48 | 67.54 | 30.19 | 297.87 | 0.5350 | -702.0 | -488.5 | |
| 0.00 | 1.98 | 0.00 | 1.11 | 9.15 | 65.46 | 28.11 | 276.41 | 0.4700 | -774.0 | -612.5 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 13.34 | 65.77 | 28.42 | 285.14 | 0.4817 | -624.0 | -490.6 | |
| 0.00 | 2.43 | 0.00 | 1.37 | 13.23 | 65.51 | 28.16 | 285.01 | 0.4776 | -868.0 | -617.6 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 13.70 | 65.35 | 28.01 | 286.03 | 0.4766 | -872.0 | -746.1 | |
| 0.81 | 2.61 | 0.46 | 1.49 | 18.71 | 65.60 | 28.25 | 295.86 | 0.5002 | 863.2 | 736.3 | |
| 0.00 | 6.02 | 0.00 | 3.34 | 12.61 | 64.03 | 26.68 | 284.21 | 0.4539 | -927.0 | -710.2 | |
| 25.96 | 170.50 | 14.57 | 95.77 | 16.27 | 64.37 | 27.02 | 291.80 | 0.4716 | -1246.8 | -352.0 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 18.78 | 64.31 | 26.96 | 296.85 | 0.4831 | 663.0 | 519.6 | |
| 0.00 | 1.89 | 0.00 | 1.10 | 23.70 | 65.27 | 27.92 | 305.07 | 0.5259 | -796.0 | -677.1 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 18.85 | 64.18 | 26.83 | 297.08 | 0.4817 | 487.0 | 598.0 | |
| 0.00 | 3.41 | 0.00 | 1.89 | 13.54 | 63.20 | 25.85 | 286.59 | 0.4442 | -959.0 | -785.2 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 17.82 | 63.76 | 26.41 | 295.33 | 0.4704 | -700.0 | -540.9 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 17.52 | 63.64 | 26.29 | 294.79 | 0.4671 | -647.0 | -467.9 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 16.95 | 63.23 | 25.88 | 293.90 | 0.4586 | -521.0 | -387.7 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 14.90 | 62.88 | 25.53 | 289.76 | 0.4444 | -734.0 | -556.2 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 16.80 | 63.07 | 25.72 | 293.70 | 0.4556 | -637.0 | -500.1 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 16.69 | 62.95 | 25.60 | 293.54 | 0.4533 | -699.0 | -508.5 | |
| 0.99 | 13.74 | 0.55 | 7.60 | 16.54 | 62.75 | 25.40 | 293.36 | 0.4498 | -872.8 | -718.3 | |
| 1.08 | -19.00 | 0.60 | -19.00 | 16.55 | 62.54 | 25.19 | 293.52 | 0.4469 | -989.4 | 999999 | |
| 22.82 | 85.43 | 12.65 | 47.40 | 17.32 | 62.58 | 25.24 | 295.12 | 0.4514 | -1179.7 | -501.3 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 16.10 | 62.37 | 25.03 | 292.66 | 0.4423 | -837.0 | -665.1 | |
| 0.00 | 3.41 | 0.00 | 1.88 | 15.76 | 62.30 | 24.95 | 291.98 | 0.4396 | -669.0 | -677.4 | |
| 2.61 | -19.00 | 1.44 | -19.00 | 16.53 | 62.36 | 25.02 | 293.60 | 0.4442 | -1061.8 | 999999 | |
| 0.54 | -21.00 | 0.30 | -21.00 | 17.91 | 62.53 | 25.18 | 296.39 | 0.4539 | -773.5 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 16.21 | 62.08 | 24.73 | 293.09 | 0.4385 | -814.0 | -683.1 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 19.99 | 62.62 | 25.27 | 300.50 | 0.4675 | -907.0 | -661.4 | |
| 0.00 | 2.87 | 0.00 | 1.60 | 18.36 | 62.32 | 24.97 | 297.47 | 0.4534 | -644.0 | -566.5 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 17.15 | 61.75 | 24.40 | 295.36 | 0.4387 | -492.0 | -520.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 16.96 | 61.73 | 24.38 | 294.98 | 0.4374 | -364.0 | -343.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 17.55 | 61.77 | 24.43 | 296.20 | 0.4413 | -919.0 | -804.8 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 17.12 | 61.57 | 24.23 | 295.45 | 0.4361 | -271.0 | -290.9 | |
| 0.00 | 13.12 | 0.00 | 7.21 | 17.48 | 61.35 | 24.00 | 296.38 | 0.4348 | -683.0 | -712.2 | |
| 0.00 | 3.23 | 0.00 | 1.78 | 17.95 | 61.20 | 23.86 | 297.51 | 0.4356 | -1048.0 | -873.4 | |
| 1.53 | 1.98 | 0.84 | 1.09 | 18.88 | 61.27 | 23.92 | 299.40 | 0.4423 | -865.5 | -791.4 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 20.34 | 61.22 | 23.87 | 302.43 | 0.4515 | -769.0 | -621.9 | |
| 0.00 | 15.18 | 0.00 | 8.30 | 17.38 | 60.67 | 23.33 | 296.73 | 0.4249 | -291.0 | -696.0 | |
| 0.63 | 1.71 | 0.35 | 0.94 | 18.93 | 60.86 | 23.51 | 299.88 | 0.4370 | -1101.0 | -919.2 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 19.21 | 60.83 | 23.48 | 300.49 | 0.4385 | -545.0 | -503.6 | |
| 0.00 | 9.70 | 0.00 | 5.37 | 20.36 | 60.94 | 23.59 | 302.72 | 0.4479 | -926.0 | -790.4 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 15.50 | 60.19 | 22.85 | 292.83 | 0.4077 | 769.0 | 582.1 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 20.56 | 60.52 | 23.17 | 303.55 | 0.4438 | -800.0 | -594.7 | |
| 0.00 | 1.89 | 0.00 | 1.03 | 19.03 | 59.97 | 22.62 | 300.93 | 0.4256 | -631.0 | -519.2 | |
| 0.00 | 1.89 | 0.00 | 1.02 | 16.91 | 59.51 | 22.16 | 296.67 | 0.4056 | -839.0 | -688.8 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 20.40 | 59.93 | 22.58 | 303.82 | 0.4350 | -876.0 | -755.1 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 16.77 | 59.32 | 21.97 | 296.50 | 0.4021 | -867.0 | -698.0 | |
| 0.00 | 1.98 | 0.00 | 1.08 | 19.89 | 59.50 | 22.15 | 303.21 | 0.4256 | -540.0 | -369.2 | |
| 2.43 | 104.39 | 1.33 | 57.00 | 20.55 | 59.39 | 22.04 | 304.69 | 0.4292 | -851.6 | -60.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 16.22 | 58.51 | 21.16 | 295.94 | 0.3871 | 491.0 | 480.3 | |
| 1.35 | 308.66 | 0.73 | 167.20 | 18.43 | 58.74 | 21.40 | 300.85 | 0.4049 | 708.3 | 301.3 | |
| 0.00 | 2.96 | 0.00 | 1.62 | 20.98 | 59.00 | 21.65 | 305.97 | 0.4275 | 221.0 | 119.6 | |
| 1.89 | -50.00 | 1.02 | -50.00 | 18.99 | 58.65 | 21.30 | 302.19 | 0.4076 | 874.7 | 999999 | |
| 7.64 | -50.00 | 4.12 | -50.00 | 18.20 | 58.34 | 20.99 | 300.75 | 0.3977 | 1304.1 | 999999 | |
| 4.67 | -50.00 | 2.52 | -50.00 | 17.80 | 58.22 | 20.87 | 299.97 | 0.3932 | 868.1 | 999999 | |
| 41.95 | -50.00 | 22.68 | -50.00 | 18.98 | 58.23 | 20.89 | 302.61 | 0.4019 | 1248.2 | 999999 | |
| 16.26 | -48.00 | 8.85 | -48.00 | 20.57 | 58.28 | 20.93 | 305.96 | 0.4150 | 977.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 19.49 | 57.82 | 20.47 | 304.21 | 0.4004 | 759.0 | 657.8 | |
| 5.12 | -50.00 | 2.76 | -50.00 | 19.06 | 57.70 | 20.35 | 303.41 | 0.3954 | 1040.2 | 999999 | |
| 0.36 | 3.05 | 0.19 | 1.65 | 20.20 | 57.43 | 20.09 | 306.19 | 0.4011 | 599.2 | 589.1 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 19.42 | 57.26 | 19.92 | 304.72 | 0.3925 | 912.0 | 700.6 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 19.62 | 57.08 | 19.74 | 305.36 | 0.3917 | 822.0 | 698.6 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 19.43 | 56.96 | 19.61 | 305.12 | 0.3886 | 981.0 | 779.1 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 19.87 | 56.94 | 19.60 | 306.10 | 0.3920 | 952.0 | 832.6 | |
| 0.00 | 2.25 | 0.00 | 1.21 | 20.18 | 56.98 | 19.64 | 306.72 | 0.3952 | 779.0 | 567.6 | |
| 6.83 | 10.51 | 3.60 | 5.53 | 13.91 | 56.24 | 18.90 | 292.05 | 0.3406 | 1055.2 | 859.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 13.55 | 56.18 | 18.83 | 291.08 | 0.3378 | 325.0 | 309.1 | |
| 0.00 | 2.07 | 0.00 | 1.12 | 21.34 | 56.97 | 19.62 | 309.17 | 0.4052 | 498.0 | 561.1 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 20.53 | 56.76 | 19.41 | 307.77 | 0.3953 | 869.0 | 674.5 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 21.19 | 56.84 | 19.50 | 309.02 | 0.4023 | 731.0 | 625.3 | |
| 7.01 | 10.42 | 3.68 | 5.47 | 13.99 | 55.76 | 18.41 | 292.74 | 0.3337 | 1121.5 | 940.2 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 20.67 | 56.47 | 19.12 | 308.44 | 0.3929 | 833.0 | 768.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 17.30 | 56.07 | 18.72 | 301.19 | 0.3598 | 802.0 | 607.5 | |
| 0.00 | 2.34 | 0.00 | 1.26 | 21.45 | 56.54 | 19.19 | 309.97 | 0.4009 | 613.0 | 540.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 13.92 | 55.39 | 18.04 | 292.87 | 0.3277 | 854.0 | 618.2 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 13.41 | 55.08 | 17.74 | 291.68 | 0.3203 | 981.0 | 812.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 20.70 | 55.55 | 18.20 | 309.78 | 0.3818 | 796.0 | 555.3 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 20.57 | 55.02 | 17.67 | 310.24 | 0.3739 | 911.0 | 723.5 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 22.13 | 55.11 | 17.76 | 313.37 | 0.3905 | 676.0 | 590.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 20.21 | 54.37 | 17.02 | 310.45 | 0.3625 | 803.0 | 665.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 16.56 | 53.44 | 16.09 | 302.80 | 0.3175 | 888.0 | 769.7 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 21.65 | 52.63 | 15.29 | 316.41 | 0.3570 | 941.0 | 801.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
