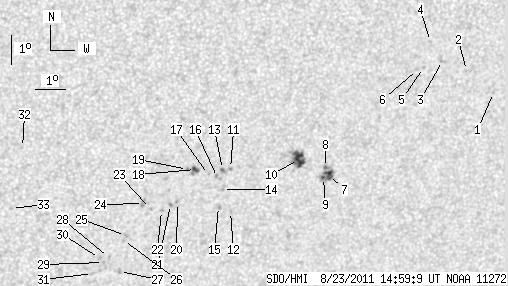

SDO HMI 2011-08-23 14:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.44 | 84.58 | 14.39 | 49.67 | -21.22 | 53.59 | 16.24 | 209.07 | 0.5405 | -70.6 | -96.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-23 14:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.38 | -18.76 | 61.37 | 24.02 | 222.27 | 0.5752 | 606.0 | 564.7 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -17.97 | 60.31 | 22.96 | 221.99 | 0.5569 | 529.0 | 398.1 | |
| 0.00 | 3.50 | 0.00 | 2.07 | -17.59 | 59.43 | 22.09 | 221.36 | 0.5445 | 580.0 | 590.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -16.94 | 58.94 | 21.59 | 221.57 | 0.5327 | 727.0 | 607.3 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -17.79 | 58.81 | 21.46 | 220.30 | 0.5407 | 615.0 | 508.2 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -17.85 | 58.61 | 21.26 | 219.97 | 0.5395 | 645.0 | 492.8 | |
| 5.30 | 15.99 | 3.16 | 9.51 | -21.32 | 56.01 | 18.66 | 212.50 | 0.5570 | 873.3 | 683.0 | |
| 1.35 | -7.00 | 0.80 | -7.00 | -21.04 | 55.87 | 18.52 | 212.60 | 0.5525 | 890.4 | 999999 | |
| 1.08 | -7.00 | 0.64 | -7.00 | -21.39 | 55.85 | 18.50 | 212.21 | 0.5564 | 826.8 | 999999 | |
| 13.03 | 21.20 | 7.66 | 12.46 | -20.73 | 54.91 | 17.56 | 211.56 | 0.5413 | 882.8 | 616.1 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -20.95 | 52.63 | 15.29 | 207.94 | 0.5275 | -743.0 | -581.4 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -22.44 | 52.80 | 15.45 | 206.82 | 0.5478 | -616.0 | -452.3 | |
| 0.54 | 2.16 | 0.31 | 1.25 | -20.98 | 52.37 | 15.02 | 207.51 | 0.5260 | -823.0 | -686.5 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -21.67 | 52.44 | 15.09 | 206.98 | 0.5355 | -701.0 | -597.1 | |
| 0.00 | 1.98 | 0.00 | 1.16 | -22.26 | 52.37 | 15.02 | 206.35 | 0.5426 | -356.0 | -400.7 | |
| 0.00 | 2.78 | 0.00 | 1.62 | -21.25 | 52.23 | 14.88 | 207.04 | 0.5286 | -697.0 | -641.0 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -21.14 | 51.91 | 14.57 | 206.65 | 0.5250 | -649.0 | -604.0 | |
| 3.14 | 5.12 | 1.82 | 2.97 | -20.95 | 51.46 | 14.11 | 206.10 | 0.5196 | -853.3 | -705.4 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -20.94 | 51.19 | 13.84 | 205.68 | 0.5177 | -1006.0 | -834.0 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -22.07 | 50.96 | 13.62 | 204.34 | 0.5313 | -725.0 | -695.0 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -22.13 | 50.73 | 13.39 | 203.93 | 0.5308 | -925.0 | -767.1 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -22.33 | 50.45 | 13.10 | 203.32 | 0.5318 | -712.0 | -588.9 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -22.25 | 50.07 | 12.73 | 202.78 | 0.5285 | -676.0 | -640.0 | |
| 0.00 | 3.50 | 0.00 | 2.04 | -22.07 | 49.82 | 12.47 | 202.52 | 0.5246 | -906.0 | -759.4 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -23.17 | 49.32 | 11.97 | 200.88 | 0.5369 | -636.0 | -472.4 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -23.35 | 49.27 | 11.92 | 200.68 | 0.5390 | -675.0 | -547.8 | |
| 0.00 | 2.43 | 0.00 | 1.44 | -24.44 | 49.23 | 11.89 | 199.87 | 0.5537 | -641.0 | -569.9 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -23.94 | 48.81 | 11.46 | 199.56 | 0.5447 | -597.0 | -531.7 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -24.11 | 48.66 | 11.31 | 199.20 | 0.5464 | -721.0 | -539.0 | |
| 0.00 | 1.89 | 0.00 | 1.11 | -23.96 | 48.51 | 11.16 | 199.07 | 0.5437 | -877.0 | -669.6 | |
| 0.00 | 2.07 | 0.00 | 1.22 | -24.49 | 48.32 | 10.97 | 198.43 | 0.5500 | -654.0 | -497.0 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -20.05 | 45.68 | 8.33 | 196.72 | 0.4750 | -742.0 | -624.0 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -22.14 | 45.44 | 8.09 | 195.03 | 0.5045 | -571.0 | -478.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
