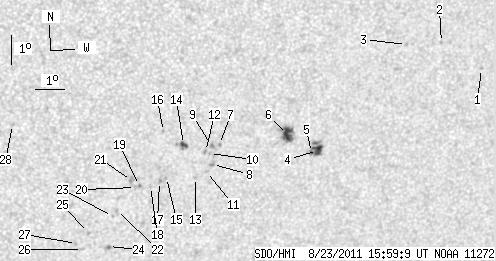

SDO HMI 2011-08-23 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.54 | 77.92 | 13.91 | 45.90 | -21.39 | 53.31 | 16.52 | 209.29 | 0.5440 | -111.0 | -150.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-23 15:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.98 | -18.78 | 61.35 | 24.55 | 222.85 | 0.5806 | 640.0 | 518.9 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -17.83 | 59.81 | 23.02 | 222.22 | 0.5561 | 667.0 | 501.0 | |
| 0.00 | 1.62 | 0.00 | 0.95 | -17.84 | 58.61 | 21.81 | 220.69 | 0.5446 | 706.0 | 551.6 | |
| 7.19 | 15.99 | 4.29 | 9.54 | -21.31 | 56.01 | 19.22 | 213.26 | 0.5612 | 855.5 | 698.3 | |
| 1.26 | -4.00 | 0.75 | -4.00 | -21.37 | 55.81 | 19.02 | 212.93 | 0.5603 | 813.0 | 999999 | |
| 11.68 | 19.58 | 6.89 | 11.55 | -20.72 | 54.90 | 18.11 | 212.35 | 0.5454 | 923.5 | 602.5 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -20.97 | 52.63 | 15.83 | 208.76 | 0.5316 | -704.0 | -574.1 | |
| 0.00 | 2.87 | 0.00 | 1.69 | -21.65 | 52.46 | 15.67 | 207.87 | 0.5392 | -684.0 | -571.7 | |
| 0.00 | 2.16 | 0.00 | 1.26 | -21.00 | 52.36 | 15.56 | 208.33 | 0.5300 | -905.0 | -676.0 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -21.27 | 52.32 | 15.53 | 208.01 | 0.5333 | -674.0 | -520.1 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -21.89 | 52.29 | 15.49 | 207.38 | 0.5410 | -537.0 | -418.8 | |
| 0.00 | 1.89 | 0.00 | 1.10 | -21.20 | 52.18 | 15.38 | 207.86 | 0.5313 | -846.0 | -630.4 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -22.08 | 51.94 | 15.14 | 206.68 | 0.5412 | -686.0 | -517.9 | |
| 3.05 | 4.31 | 1.77 | 2.50 | -20.93 | 51.41 | 14.62 | 206.92 | 0.5227 | -844.6 | -728.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -22.05 | 50.95 | 14.16 | 205.20 | 0.5344 | -809.0 | -708.6 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -20.46 | 50.70 | 13.90 | 206.21 | 0.5117 | -782.0 | -566.7 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -22.18 | 50.73 | 13.93 | 204.75 | 0.5348 | -895.0 | -734.9 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -22.35 | 50.44 | 13.65 | 204.16 | 0.5352 | -741.0 | -537.1 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -22.30 | 50.07 | 13.27 | 203.61 | 0.5324 | -689.0 | -637.7 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -22.37 | 49.94 | 13.14 | 203.36 | 0.5325 | -582.0 | -459.6 | |
| 0.00 | 3.14 | 0.00 | 1.83 | -22.12 | 49.78 | 12.99 | 203.30 | 0.5282 | -910.0 | -778.8 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -23.15 | 49.37 | 12.58 | 201.86 | 0.5399 | -716.0 | -616.4 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -23.36 | 49.26 | 12.46 | 201.52 | 0.5421 | -675.0 | -509.8 | |
| 0.36 | 2.69 | 0.21 | 1.60 | -24.42 | 49.23 | 12.43 | 200.72 | 0.5562 | -697.0 | -565.4 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -23.90 | 48.50 | 11.70 | 199.95 | 0.5455 | -776.0 | -657.6 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -24.50 | 48.35 | 11.55 | 199.32 | 0.5529 | -623.0 | -409.4 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -24.28 | 48.12 | 11.33 | 199.12 | 0.5489 | -547.0 | -474.6 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -20.09 | 45.69 | 8.89 | 197.75 | 0.4782 | -743.0 | -579.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
