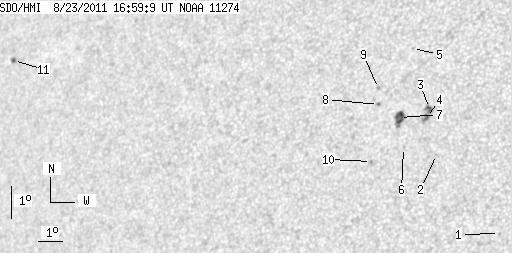

SDO HMI 2011-08-23 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.10 | 32.62 | 8.88 | 20.40 | 18.57 | 359.74 | -36.50 | 68.11 | 0.6063 | -657.7 | -527.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-23 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.62 | 15.24 | 5.67 | -30.58 | 71.92 | 0.5183 | -699.0 | -566.8 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 17.51 | 2.90 | -33.34 | 68.92 | 0.5639 | -583.0 | -442.3 | |
| 2.60 | 10.78 | 1.58 | 6.52 | 18.91 | 2.32 | -33.92 | 66.79 | 0.5766 | -873.1 | -754.4 | |
| 2.25 | -3.00 | 1.36 | -3.00 | 18.62 | 2.27 | -33.97 | 67.29 | 0.5762 | -926.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 20.71 | 1.21 | -35.03 | 64.32 | 0.5980 | -626.0 | -462.6 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 17.64 | 1.60 | -34.64 | 69.20 | 0.5816 | -763.0 | -580.6 | |
| 7.81 | 11.05 | 4.78 | 6.76 | 18.55 | 1.24 | -35.00 | 67.83 | 0.5894 | -792.5 | -629.9 | |
| 0.00 | 1.53 | 0.00 | 0.95 | 18.90 | 0.33 | -35.91 | 67.62 | 0.6024 | -731.0 | -627.0 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 19.39 | 0.20 | -36.04 | 66.88 | 0.6056 | -617.0 | -505.9 | |
| 0.00 | 1.17 | 0.00 | 0.72 | 17.13 | 0.47 | -35.77 | 70.45 | 0.5950 | -695.0 | -542.2 | |
| 1.44 | 2.78 | 1.16 | 2.25 | 18.94 | 343.91 | -52.33 | 71.40 | 0.7923 | 601.2 | 467.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
