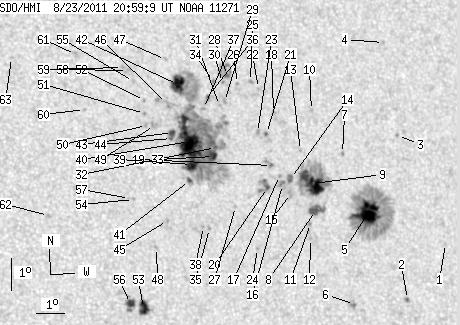

SDO HMI 2011-08-23 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 181.50 | 769.72 | 101.83 | 433.16 | 18.02 | 60.45 | 26.42 | 295.92 | 0.4726 | 40.9 | -41.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-23 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.64 | 15.23 | 67.04 | 33.01 | 287.16 | 0.5523 | -489.0 | -368.2 | |
| 1.17 | 2.24 | 0.68 | 1.30 | 13.61 | 65.37 | 31.34 | 284.70 | 0.5247 | -814.5 | -724.4 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 18.64 | 65.90 | 31.87 | 293.68 | 0.5484 | 838.0 | 686.9 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 21.55 | 66.03 | 32.00 | 298.59 | 0.5635 | -705.0 | -487.2 | |
| 30.44 | 169.89 | 17.61 | 98.41 | 16.32 | 64.34 | 30.31 | 290.19 | 0.5181 | -1198.0 | -311.5 | |
| 1.17 | 5.48 | 0.67 | 3.12 | 13.57 | 63.44 | 29.42 | 285.23 | 0.4968 | -935.9 | -701.5 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 18.21 | 63.76 | 29.73 | 294.01 | 0.5178 | -751.0 | -603.5 | |
| 10.78 | 16.16 | 6.13 | 9.20 | 16.52 | 62.48 | 28.46 | 291.47 | 0.4929 | -914.4 | -647.5 | |
| 31.43 | 82.88 | 17.92 | 47.29 | 17.35 | 62.51 | 28.49 | 293.08 | 0.4968 | -1071.0 | -355.5 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 19.60 | 62.89 | 28.86 | 297.09 | 0.5128 | -776.0 | -576.7 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 16.13 | 62.24 | 28.21 | 290.83 | 0.4879 | -892.0 | -836.1 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 15.67 | 62.17 | 28.14 | 289.95 | 0.4851 | -875.0 | -767.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 18.39 | 62.26 | 28.23 | 295.22 | 0.4982 | -731.0 | -605.8 | |
| 0.00 | 4.58 | 0.00 | 2.59 | 17.55 | 61.75 | 27.73 | 293.91 | 0.4872 | -1028.0 | -956.1 | |
| 0.00 | 4.58 | 0.00 | 2.59 | 17.09 | 61.68 | 27.65 | 293.05 | 0.4840 | -411.0 | -413.9 | |
| 0.00 | 5.30 | 0.00 | 2.99 | 17.38 | 61.44 | 27.41 | 293.77 | 0.4820 | -825.0 | -716.6 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 17.66 | 61.38 | 27.35 | 294.36 | 0.4825 | -923.0 | -841.7 | |
| 0.00 | 2.24 | 0.00 | 1.28 | 19.61 | 61.50 | 27.48 | 298.05 | 0.4944 | -739.0 | -647.2 | |
| 1.26 | 4.49 | 0.71 | 2.53 | 17.98 | 61.14 | 27.12 | 295.15 | 0.4809 | -963.3 | -735.2 | |
| 1.17 | 11.58 | 0.66 | 6.50 | 17.32 | 60.89 | 26.86 | 293.98 | 0.4741 | -1028.9 | -775.6 | |
| 1.17 | 1.53 | 0.66 | 0.86 | 18.98 | 61.13 | 27.11 | 297.09 | 0.4860 | -880.5 | -892.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 20.39 | 61.10 | 27.08 | 299.79 | 0.4936 | -845.0 | -754.9 | |
| 0.00 | 2.33 | 0.00 | 1.32 | 19.03 | 60.82 | 26.79 | 297.41 | 0.4820 | -974.0 | -837.7 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 15.47 | 60.27 | 26.24 | 290.53 | 0.4569 | 695.0 | 474.5 | |
| 0.00 | 2.16 | 0.00 | 1.22 | 20.62 | 60.86 | 26.83 | 300.41 | 0.4918 | -821.0 | -665.8 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 20.58 | 60.38 | 26.35 | 300.72 | 0.4853 | -882.0 | -709.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 16.79 | 59.68 | 25.65 | 293.69 | 0.4544 | 767.0 | 499.5 | |
| 2.33 | 13.20 | 1.32 | 7.46 | 20.85 | 60.07 | 26.04 | 301.47 | 0.4830 | -957.1 | -674.6 | |
| 0.00 | 2.16 | 0.00 | 1.21 | 20.05 | 59.81 | 25.79 | 300.15 | 0.4745 | -946.0 | -761.7 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 20.64 | 59.85 | 25.82 | 301.26 | 0.4788 | -924.0 | -858.0 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 19.93 | 59.61 | 25.59 | 300.09 | 0.4711 | -622.0 | -550.1 | |
| 1.62 | 347.60 | 0.90 | 193.02 | 18.64 | 59.26 | 25.23 | 297.81 | 0.4585 | 514.4 | 231.0 | |
| 4.22 | -32.00 | 2.35 | -32.00 | 18.37 | 59.14 | 25.12 | 297.34 | 0.4553 | -367.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 20.69 | 59.53 | 25.51 | 301.61 | 0.4750 | -940.0 | -811.9 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 16.16 | 58.68 | 24.66 | 293.01 | 0.4371 | 630.0 | 520.1 | |
| 1.17 | 4.58 | 0.65 | 2.56 | 20.23 | 59.24 | 25.21 | 300.99 | 0.4681 | -728.8 | 15.2 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 19.87 | 59.03 | 25.00 | 300.44 | 0.4630 | -47.0 | -52.0 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 16.24 | 58.48 | 24.46 | 293.30 | 0.4346 | 756.0 | 640.6 | |
| 9.07 | -32.00 | 5.01 | -32.00 | 18.16 | 58.34 | 24.31 | 297.54 | 0.4430 | 1187.1 | 999999 | |
| 46.60 | -32.00 | 25.79 | -32.00 | 18.87 | 58.37 | 24.35 | 298.99 | 0.4479 | 1165.5 | 999999 | |
| 1.62 | -32.00 | 0.89 | -32.00 | 17.67 | 58.20 | 24.17 | 296.62 | 0.4382 | 874.2 | 999999 | |
| 17.42 | -32.00 | 9.70 | -32.00 | 20.66 | 58.24 | 24.21 | 302.70 | 0.4579 | 979.1 | 999999 | |
| 3.23 | -32.00 | 1.78 | -32.00 | 19.18 | 57.82 | 23.80 | 300.10 | 0.4424 | 1013.5 | 999999 | |
| 0.27 | -32.00 | 0.15 | -32.00 | 18.99 | 57.76 | 23.73 | 299.78 | 0.4403 | 1104.7 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 16.48 | 57.27 | 23.25 | 294.74 | 0.4185 | 730.0 | 659.7 | |
| 0.00 | 11.58 | 0.00 | 6.41 | 20.08 | 57.76 | 23.73 | 302.01 | 0.4476 | 457.0 | 525.6 | |
| 0.00 | 1.89 | 0.00 | 1.05 | 21.45 | 57.95 | 23.92 | 304.52 | 0.4600 | 658.0 | 519.2 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 15.67 | 56.80 | 22.77 | 293.25 | 0.4073 | -816.0 | -628.9 | |
| 0.00 | 4.22 | 0.00 | 2.32 | 19.42 | 57.23 | 23.20 | 301.15 | 0.4360 | 825.0 | 698.3 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 19.44 | 56.95 | 22.93 | 301.45 | 0.4324 | 893.0 | 751.0 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 19.81 | 56.94 | 22.91 | 302.24 | 0.4349 | 996.0 | 838.5 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 20.21 | 57.00 | 22.98 | 303.00 | 0.4386 | 756.0 | 623.6 | |
| 10.42 | 12.30 | 5.60 | 6.61 | 13.83 | 56.15 | 22.13 | 289.27 | 0.3891 | 1012.7 | 474.2 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 17.17 | 56.19 | 22.17 | 297.23 | 0.4071 | 712.0 | 647.1 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 20.82 | 56.71 | 22.69 | 304.52 | 0.4393 | 735.0 | 558.1 | |
| 4.94 | 10.42 | 2.65 | 5.58 | 14.00 | 55.73 | 21.71 | 289.98 | 0.3835 | 1115.5 | 808.1 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 17.21 | 56.06 | 22.03 | 297.43 | 0.4055 | 754.0 | 613.9 | |
| 0.00 | 2.69 | 0.00 | 1.48 | 21.17 | 56.56 | 22.53 | 305.38 | 0.4401 | 785.0 | 652.5 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 21.27 | 56.40 | 22.37 | 305.75 | 0.4388 | 834.0 | 670.6 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 20.02 | 54.89 | 20.86 | 304.87 | 0.4095 | 914.0 | 733.0 | |
| 0.00 | 2.78 | 0.00 | 1.52 | 21.75 | 54.82 | 20.80 | 308.48 | 0.4231 | 496.0 | 562.9 | |
| 0.00 | 2.16 | 0.00 | 1.15 | 16.80 | 53.27 | 19.24 | 299.30 | 0.3633 | 1002.0 | 696.2 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 21.74 | 52.60 | 18.58 | 311.37 | 0.3960 | 870.0 | 706.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
