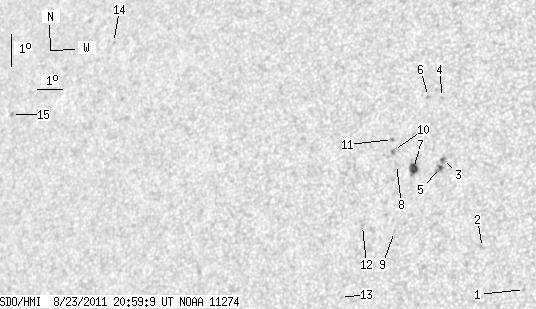

SDO HMI 2011-08-23 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.89 | 32.88 | 5.30 | 19.94 | 18.49 | 0.13 | -33.89 | 67.32 | 0.5728 | -610.2 | -501.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-23 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.66 | 15.06 | 5.94 | -28.09 | 71.25 | 0.4821 | -709.0 | -635.4 | |
| 0.00 | 2.33 | 0.00 | 1.34 | 16.26 | 4.24 | -29.79 | 69.69 | 0.5105 | -735.0 | -559.5 | |
| 0.63 | 7.81 | 0.37 | 4.62 | 18.87 | 2.26 | -31.76 | 65.87 | 0.5479 | -912.6 | -775.2 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 20.78 | 1.83 | -32.19 | 62.81 | 0.5622 | -735.0 | -608.6 | |
| 1.62 | -3.00 | 0.96 | -3.00 | 18.62 | 2.24 | -31.78 | 66.32 | 0.5472 | -938.1 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 20.78 | 1.29 | -32.73 | 63.10 | 0.5690 | -656.0 | -558.9 | |
| 6.64 | 8.44 | 3.97 | 5.04 | 18.52 | 1.24 | -32.79 | 66.96 | 0.5601 | -856.4 | -662.5 | |
| 0.00 | 1.35 | 0.00 | 0.81 | 18.60 | 0.57 | -33.46 | 67.12 | 0.5693 | -656.0 | -529.1 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 16.55 | 0.92 | -33.10 | 70.53 | 0.5574 | -656.0 | -571.5 | |
| 0.00 | 2.96 | 0.00 | 1.79 | 19.03 | 0.36 | -33.67 | 66.50 | 0.5737 | -809.0 | -729.2 | |
| 0.00 | 1.35 | 0.00 | 0.82 | 19.36 | 0.24 | -33.78 | 65.99 | 0.5765 | -764.0 | -588.8 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 16.65 | 359.68 | -34.34 | 70.80 | 0.5745 | -671.0 | -518.2 | |
| 0.00 | 0.63 | 0.00 | 0.38 | 14.40 | 359.27 | -34.75 | 74.79 | 0.5743 | -587.0 | -500.9 | |
| 0.00 | 0.81 | 0.00 | 0.59 | 21.48 | 347.74 | -46.29 | 67.02 | 0.7329 | 579.0 | 527.1 | |
| 0.00 | 1.62 | 0.00 | 1.25 | 18.86 | 343.85 | -50.18 | 71.22 | 0.7699 | 782.0 | 553.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
