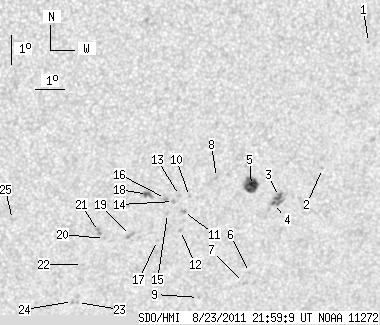

SDO HMI 2011-08-23 21:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.90 | 64.87 | 13.80 | 38.99 | -21.37 | 53.39 | 19.91 | 214.05 | 0.5689 | 63.9 | -106.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-23 21:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.59 | -16.11 | 58.24 | 24.76 | 226.52 | 0.5567 | 744.0 | 655.3 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -20.27 | 57.24 | 23.77 | 220.14 | 0.5886 | 637.0 | 462.2 | |
| 3.32 | 12.21 | 2.03 | 7.46 | -21.15 | 55.83 | 22.36 | 217.46 | 0.5856 | 952.6 | 690.5 | |
| 1.26 | -3.00 | 0.77 | -3.00 | -21.38 | 55.70 | 22.22 | 217.03 | 0.5869 | 726.5 | 999999 | |
| 15.27 | 18.14 | 9.20 | 10.93 | -20.72 | 54.82 | 21.35 | 216.67 | 0.5723 | 873.2 | 709.9 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -23.76 | 55.25 | 21.77 | 214.00 | 0.6094 | 761.0 | 645.8 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -24.11 | 55.09 | 21.62 | 213.47 | 0.6120 | 468.0 | 429.0 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -20.39 | 53.56 | 20.09 | 215.40 | 0.5579 | 542.0 | 537.3 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -24.57 | 53.57 | 20.10 | 211.17 | 0.6060 | 649.0 | 533.2 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -21.01 | 52.72 | 19.24 | 213.60 | 0.5581 | -648.0 | -538.7 | |
| 0.00 | 2.42 | 0.00 | 1.45 | -21.52 | 52.58 | 19.11 | 212.88 | 0.5630 | -850.0 | -658.1 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -22.17 | 52.57 | 19.09 | 212.20 | 0.5707 | -698.0 | -542.7 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -20.96 | 52.37 | 18.89 | 213.18 | 0.5547 | -732.0 | -538.9 | |
| 0.00 | 1.98 | 0.00 | 1.18 | -21.15 | 52.19 | 18.71 | 212.72 | 0.5557 | -871.0 | -646.1 | |
| 0.00 | 1.62 | 0.00 | 0.96 | -21.56 | 52.04 | 18.56 | 212.09 | 0.5593 | -712.0 | -443.5 | |
| 0.00 | 2.07 | 0.00 | 1.22 | -21.04 | 51.90 | 18.42 | 212.44 | 0.5520 | -618.0 | -484.1 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -22.49 | 51.82 | 18.34 | 210.87 | 0.5688 | -572.0 | -404.2 | |
| 3.05 | 4.40 | 1.80 | 2.60 | -20.88 | 51.26 | 17.79 | 211.71 | 0.5452 | -850.9 | -725.2 | |
| 0.00 | 3.59 | 0.00 | 2.14 | -22.27 | 50.86 | 17.38 | 209.75 | 0.5593 | -830.0 | -631.1 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -22.34 | 49.97 | 16.50 | 208.43 | 0.5539 | -787.0 | -684.5 | |
| 0.00 | 3.05 | 0.00 | 1.81 | -22.09 | 49.74 | 16.27 | 208.32 | 0.5492 | -959.0 | -809.5 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -23.23 | 49.33 | 15.86 | 206.71 | 0.5608 | -380.0 | -367.2 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -24.57 | 49.33 | 15.85 | 205.57 | 0.5777 | -551.0 | -452.2 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -24.53 | 49.15 | 15.67 | 205.36 | 0.5761 | -647.0 | -493.9 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -21.58 | 46.78 | 13.30 | 204.25 | 0.5232 | -718.0 | -530.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
