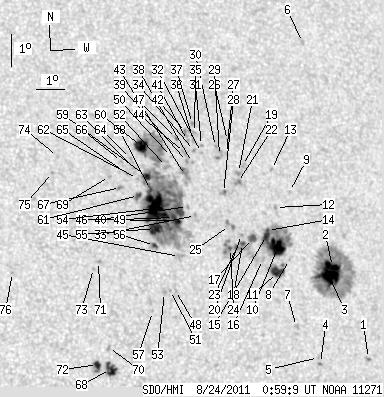

SDO HMI 2011-08-24 00:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 163.86 | 717.74 | 93.57 | 412.22 | 17.93 | 60.62 | 28.80 | 294.18 | 0.5044 | -14.9 | -112.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-24 00:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 1.23 | 13.67 | 65.36 | 33.54 | 284.21 | 0.5559 | -845.0 | -683.4 | |
| 7.64 | 164.56 | 4.53 | 97.53 | 16.56 | 64.51 | 32.69 | 289.62 | 0.5518 | -979.8 | -314.6 | |
| 20.30 | -2.00 | 12.01 | -2.00 | 16.26 | 64.35 | 32.52 | 289.16 | 0.5485 | -1111.6 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 13.64 | 63.57 | 31.75 | 284.61 | 0.5305 | -916.0 | -799.4 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 13.82 | 63.52 | 31.70 | 284.97 | 0.5303 | -726.0 | -534.4 | |
| 0.00 | 1.98 | 0.00 | 1.21 | 23.56 | 65.02 | 33.20 | 301.13 | 0.5886 | -460.0 | -446.8 | |
| 0.00 | 2.07 | 0.00 | 1.20 | 14.81 | 62.87 | 31.05 | 287.04 | 0.5236 | -827.0 | -577.3 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 16.87 | 62.97 | 31.15 | 290.83 | 0.5316 | -407.0 | -333.3 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 18.96 | 63.38 | 31.56 | 294.38 | 0.5455 | 662.0 | 532.5 | |
| 17.43 | 66.56 | 10.15 | 38.80 | 17.27 | 62.60 | 30.77 | 291.72 | 0.5280 | -1022.9 | -417.6 | |
| 9.16 | 15.18 | 5.32 | 8.81 | 16.50 | 62.46 | 30.64 | 290.37 | 0.5232 | -931.6 | -783.5 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 18.50 | 62.76 | 30.94 | 293.88 | 0.5353 | -722.0 | -519.3 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 19.68 | 62.86 | 31.03 | 295.92 | 0.5418 | -846.0 | -627.7 | |
| 1.35 | -10.00 | 0.78 | -10.00 | 17.81 | 62.33 | 30.51 | 292.85 | 0.5265 | -707.1 | 999999 | |
| 3.77 | -10.00 | 2.19 | -10.00 | 17.66 | 62.26 | 30.44 | 292.60 | 0.5250 | -933.9 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.30 | 16.93 | 61.98 | 30.16 | 291.39 | 0.5182 | -721.0 | -617.4 | |
| 5.21 | 33.06 | 3.01 | 19.01 | 17.60 | 61.73 | 29.91 | 292.76 | 0.5175 | -987.3 | -633.5 | |
| 2.16 | -17.00 | 1.24 | -17.00 | 17.47 | 61.34 | 29.52 | 292.71 | 0.5116 | -923.0 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 19.87 | 61.81 | 29.99 | 296.86 | 0.5290 | -724.0 | -579.9 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 17.75 | 61.36 | 29.54 | 293.23 | 0.5130 | -888.0 | -774.2 | |
| 0.00 | 2.43 | 0.00 | 1.41 | 19.66 | 61.62 | 29.80 | 296.60 | 0.5254 | -833.0 | -722.8 | |
| 0.00 | 3.59 | 0.00 | 2.09 | 19.35 | 61.52 | 29.70 | 296.10 | 0.5226 | -842.0 | -818.5 | |
| 1.71 | -17.00 | 0.98 | -17.00 | 17.36 | 61.11 | 29.28 | 292.63 | 0.5078 | -823.5 | 999999 | |
| 1.26 | -17.00 | 0.72 | -17.00 | 17.34 | 60.88 | 29.06 | 292.71 | 0.5047 | -1012.6 | 999999 | |
| 0.00 | 5.03 | 0.00 | 2.89 | 18.05 | 60.97 | 29.15 | 294.01 | 0.5090 | -546.0 | -767.8 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 20.67 | 61.42 | 29.60 | 298.53 | 0.5281 | -604.0 | -559.9 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 20.27 | 61.30 | 29.48 | 297.90 | 0.5244 | -742.0 | -657.3 | |
| 0.00 | 3.14 | 0.00 | 1.81 | 19.07 | 60.95 | 29.13 | 295.94 | 0.5136 | -949.0 | -783.5 | |
| 0.00 | 4.31 | 0.00 | 2.50 | 20.23 | 61.03 | 29.21 | 297.99 | 0.5206 | -518.0 | -721.1 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 20.51 | 60.94 | 29.12 | 298.56 | 0.5210 | -561.0 | -492.6 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 20.57 | 60.44 | 28.61 | 299.01 | 0.5147 | -739.0 | -624.0 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 20.36 | 60.39 | 28.57 | 298.64 | 0.5129 | -862.0 | -705.6 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 18.42 | 59.80 | 27.98 | 295.42 | 0.4949 | -742.0 | -525.7 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 20.43 | 60.15 | 28.33 | 298.95 | 0.5102 | -842.0 | -680.8 | |
| 0.00 | 1.62 | 0.00 | 0.93 | 20.99 | 60.26 | 28.44 | 299.88 | 0.5149 | -662.0 | -580.2 | |
| 0.00 | 2.07 | 0.00 | 1.19 | 20.74 | 60.18 | 28.35 | 299.50 | 0.5123 | -759.0 | -571.5 | |
| 0.00 | 1.71 | 0.00 | 0.99 | 21.27 | 60.25 | 28.43 | 300.40 | 0.5163 | -542.0 | -368.9 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 20.06 | 60.00 | 28.18 | 298.38 | 0.5062 | -795.0 | -657.1 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 20.11 | 59.83 | 28.01 | 298.57 | 0.5041 | -820.0 | -643.0 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 18.72 | 59.57 | 27.75 | 296.13 | 0.4931 | 110.0 | -27.4 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 20.76 | 59.96 | 28.14 | 299.67 | 0.5095 | -920.0 | -753.8 | |
| 0.00 | 3.86 | 0.00 | 2.22 | 21.01 | 59.97 | 28.15 | 300.12 | 0.5112 | -540.0 | -604.6 | |
| 0.00 | 12.40 | 0.00 | 7.08 | 19.68 | 59.67 | 27.85 | 297.88 | 0.4996 | -177.0 | -351.3 | |
| 0.00 | 2.52 | 0.00 | 1.44 | 20.39 | 59.77 | 27.95 | 299.14 | 0.5050 | -783.0 | -681.1 | |
| 0.00 | 5.21 | 0.00 | 2.94 | 17.19 | 59.02 | 27.20 | 293.50 | 0.4781 | 159.0 | -1.6 | |
| 3.32 | 301.10 | 1.88 | 170.22 | 18.30 | 59.13 | 27.31 | 295.62 | 0.4851 | -431.9 | 202.4 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 20.84 | 59.57 | 27.75 | 300.11 | 0.5050 | -763.0 | -636.9 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 16.16 | 58.72 | 26.90 | 291.58 | 0.4692 | 498.0 | 484.6 | |
| 1.53 | -46.00 | 0.86 | -46.00 | 18.40 | 59.01 | 27.19 | 295.90 | 0.4839 | 69.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 20.29 | 59.28 | 27.46 | 299.31 | 0.4979 | -684.0 | -576.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 16.17 | 58.55 | 26.72 | 291.70 | 0.4667 | 754.0 | 625.2 | |
| 0.00 | 3.41 | 0.00 | 1.94 | 19.99 | 59.04 | 27.22 | 298.92 | 0.4930 | -63.0 | -74.7 | |
| 0.00 | 2.07 | 0.00 | 1.15 | 16.12 | 58.33 | 26.50 | 291.72 | 0.4634 | 776.0 | 672.3 | |
| 40.06 | -46.00 | 22.56 | -46.00 | 18.72 | 58.41 | 26.59 | 296.92 | 0.4774 | 1045.7 | 999999 | |
| 11.95 | -46.00 | 6.71 | -46.00 | 18.10 | 58.31 | 26.49 | 295.77 | 0.4727 | 1099.5 | 999999 | |
| 1.71 | 3.95 | 0.96 | 2.21 | 17.58 | 58.19 | 26.37 | 294.80 | 0.4684 | 869.4 | 583.4 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 15.56 | 57.83 | 26.00 | 290.84 | 0.4538 | 686.0 | 551.0 | |
| 1.71 | -46.00 | 0.96 | -46.00 | 19.31 | 58.34 | 26.52 | 298.13 | 0.4797 | 861.4 | 999999 | |
| 3.77 | -46.00 | 2.13 | -46.00 | 19.72 | 58.27 | 26.45 | 298.98 | 0.4812 | 891.2 | 999999 | |
| 12.13 | -46.00 | 6.87 | -46.00 | 20.66 | 58.26 | 26.44 | 300.77 | 0.4868 | 951.4 | 999999 | |
| 3.68 | 4.58 | 2.07 | 2.57 | 19.15 | 57.88 | 26.06 | 298.16 | 0.4726 | 957.1 | 631.9 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 19.68 | 57.93 | 26.11 | 299.15 | 0.4765 | 733.0 | 608.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 20.02 | 57.85 | 26.03 | 299.88 | 0.4775 | 825.0 | 696.8 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 20.31 | 57.80 | 25.97 | 300.47 | 0.4785 | 624.0 | 500.9 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 19.85 | 57.57 | 25.75 | 299.77 | 0.4727 | 832.0 | 701.4 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 20.23 | 57.46 | 25.64 | 300.60 | 0.4736 | 710.0 | 627.2 | |
| 0.00 | 2.96 | 0.00 | 1.66 | 19.43 | 57.28 | 25.46 | 299.17 | 0.4663 | 970.0 | 798.3 | |
| 10.06 | 12.94 | 5.49 | 7.07 | 13.87 | 56.16 | 24.34 | 288.01 | 0.4225 | 928.3 | 507.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 19.79 | 56.95 | 25.13 | 300.16 | 0.4641 | 918.0 | 759.5 | |
| 0.00 | 1.98 | 0.00 | 1.08 | 14.54 | 56.17 | 24.35 | 289.55 | 0.4252 | 733.0 | 620.3 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 17.19 | 56.16 | 24.34 | 295.42 | 0.4378 | 755.0 | 600.5 | |
| 3.95 | 7.37 | 2.15 | 4.01 | 14.04 | 55.73 | 23.91 | 288.65 | 0.4168 | 991.3 | 854.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 16.98 | 55.96 | 24.14 | 295.13 | 0.4338 | 798.0 | 626.0 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 20.50 | 55.23 | 23.41 | 303.12 | 0.4461 | 762.0 | 601.1 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 20.01 | 54.97 | 23.15 | 302.38 | 0.4393 | 889.0 | 692.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 16.98 | 53.18 | 21.35 | 297.51 | 0.3943 | 815.0 | 579.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
