SDO HMI 2011-08-24 00:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.43 | 62.03 | 10.62 | 37.73 | -21.17 | 53.56 | 21.74 | 216.54 | 0.5825 | 1.2 | -66.9 | |
|
previous
or next observation for the same group /

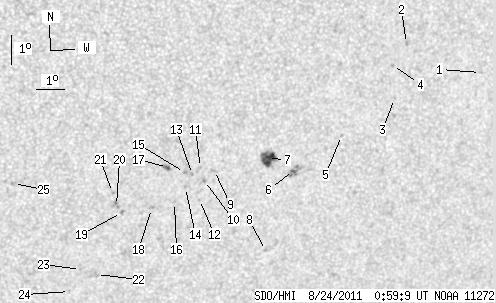

back to the solar disc SDO HMI 2011-08-24 00:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.57 | -18.25 | 61.98 | 30.16 | 229.27 | 0.6319 | 682.0 | 557.2 | |
| 0.00 | 1.53 | 0.00 | 0.94 | -17.10 | 59.09 | 27.27 | 227.92 | 0.5922 | 751.0 | 606.9 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -18.93 | 58.97 | 27.14 | 225.47 | 0.6076 | 634.0 | 410.7 | |
| 0.00 | 1.53 | 0.00 | 0.94 | -17.81 | 58.70 | 26.88 | 226.60 | 0.5947 | 696.0 | 583.4 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -20.08 | 57.26 | 25.44 | 222.25 | 0.6023 | 539.0 | 489.3 | |
| 1.44 | 9.34 | 0.89 | 5.78 | -21.19 | 55.74 | 23.92 | 219.26 | 0.5997 | 936.2 | 704.4 | |
| 14.10 | 17.88 | 8.61 | 10.91 | -20.73 | 54.75 | 22.92 | 218.60 | 0.5861 | 843.6 | 596.0 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -23.95 | 55.24 | 23.42 | 215.73 | 0.6244 | 682.0 | 591.9 | |
| 0.00 | 2.52 | 0.00 | 1.52 | -21.05 | 52.94 | 21.12 | 216.01 | 0.5741 | -485.0 | -409.7 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -21.38 | 52.64 | 20.82 | 215.27 | 0.5753 | -716.0 | -608.6 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -20.92 | 52.43 | 20.61 | 215.50 | 0.5684 | -663.0 | -484.3 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -22.03 | 52.56 | 20.74 | 214.48 | 0.5821 | -518.0 | -480.4 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -21.15 | 52.19 | 20.37 | 214.93 | 0.5690 | -851.0 | -701.0 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -21.59 | 52.01 | 20.19 | 214.23 | 0.5726 | -758.0 | -579.8 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -21.07 | 51.90 | 20.08 | 214.64 | 0.5657 | -703.0 | -566.3 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -22.10 | 51.70 | 19.88 | 213.31 | 0.5760 | -709.0 | -586.7 | |
| 1.89 | 3.95 | 1.12 | 2.36 | -20.87 | 51.29 | 19.46 | 214.03 | 0.5584 | -855.0 | -795.1 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -22.27 | 50.93 | 19.11 | 212.11 | 0.5721 | -736.0 | -670.7 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -22.37 | 49.90 | 18.08 | 210.62 | 0.5656 | -721.0 | -580.1 | |
| 0.00 | 3.23 | 0.00 | 1.93 | -22.12 | 49.70 | 17.88 | 210.58 | 0.5610 | -832.0 | -776.5 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -21.66 | 49.50 | 17.68 | 210.76 | 0.5540 | -794.0 | -717.7 | |
| 0.00 | 2.52 | 0.00 | 1.54 | -24.52 | 49.34 | 17.51 | 207.87 | 0.5878 | -554.0 | -447.3 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -24.32 | 48.75 | 16.93 | 207.26 | 0.5815 | -707.0 | -501.3 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -25.09 | 48.47 | 16.65 | 206.23 | 0.5893 | -574.0 | -458.5 | |
| 0.00 | 1.98 | 0.00 | 1.15 | -21.22 | 46.10 | 14.27 | 206.09 | 0.5247 | -763.0 | -644.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
