SDO HMI 2011-08-24 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.82 | 59.61 | 9.09 | 36.28 | -21.24 | 53.16 | 21.89 | 216.64 | 0.5843 | 35.0 | -121.9 | |
|
previous
or next observation for the same group /

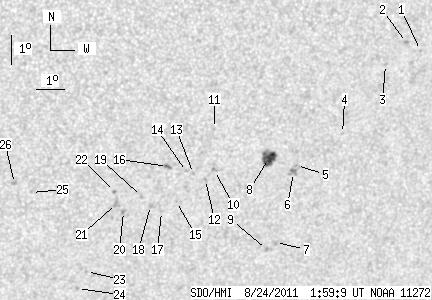

back to the solar disc SDO HMI 2011-08-24 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.56 | -17.40 | 59.63 | 28.36 | 228.63 | 0.6062 | 717.0 | 626.2 | |
| 0.00 | 2.07 | 0.00 | 1.27 | -17.10 | 59.08 | 27.80 | 228.46 | 0.5978 | 775.0 | 614.4 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -17.79 | 58.44 | 27.16 | 226.92 | 0.5974 | 684.0 | 532.1 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -20.04 | 57.28 | 26.01 | 222.91 | 0.6073 | 534.0 | 432.8 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -21.05 | 55.81 | 24.54 | 220.12 | 0.6038 | 853.0 | 658.6 | |
| 0.00 | 4.31 | 0.00 | 2.68 | -21.29 | 55.75 | 24.48 | 219.77 | 0.6056 | 953.0 | 801.2 | |
| 0.00 | 1.89 | 0.00 | 1.20 | -23.71 | 55.56 | 24.28 | 216.94 | 0.6289 | 606.0 | 508.6 | |
| 14.82 | 17.70 | 9.09 | 10.85 | -20.76 | 54.77 | 23.49 | 219.25 | 0.5914 | 814.8 | 753.8 | |
| 0.00 | 1.44 | 0.00 | 0.91 | -23.94 | 55.27 | 24.00 | 216.38 | 0.6290 | 765.0 | 620.3 | |
| 0.00 | 2.07 | 0.00 | 1.25 | -21.08 | 52.92 | 21.65 | 216.65 | 0.5788 | -534.0 | -429.9 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -19.63 | 52.70 | 21.43 | 218.01 | 0.5611 | -619.0 | -537.2 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -21.37 | 52.65 | 21.38 | 215.99 | 0.5798 | -773.0 | -582.1 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -21.14 | 52.19 | 20.92 | 215.66 | 0.5735 | -775.0 | -606.7 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -21.06 | 51.94 | 20.67 | 215.42 | 0.5705 | -792.0 | -602.4 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -22.09 | 51.74 | 20.47 | 214.08 | 0.5806 | -659.0 | -532.6 | |
| 0.00 | 2.87 | 0.00 | 1.72 | -20.86 | 51.25 | 19.98 | 214.74 | 0.5625 | -950.0 | -811.0 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -22.41 | 51.27 | 20.00 | 213.13 | 0.5806 | -515.0 | -462.1 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -22.19 | 50.85 | 19.58 | 212.82 | 0.5747 | -483.0 | -462.8 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -21.86 | 50.49 | 19.22 | 212.67 | 0.5681 | -659.0 | -564.4 | |
| 0.00 | 2.25 | 0.00 | 1.35 | -22.36 | 49.94 | 18.67 | 211.43 | 0.5698 | -787.0 | -600.3 | |
| 0.00 | 4.49 | 0.00 | 2.69 | -22.07 | 49.66 | 18.39 | 211.33 | 0.5642 | -966.0 | -712.8 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -21.65 | 49.53 | 18.26 | 211.58 | 0.5582 | -824.0 | -724.1 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -24.42 | 48.95 | 17.67 | 208.17 | 0.5877 | -591.0 | -495.8 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -25.02 | 48.72 | 17.45 | 207.36 | 0.5935 | -577.0 | -492.7 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -21.57 | 46.69 | 15.42 | 207.54 | 0.5369 | -823.0 | -560.8 | |
| 0.00 | 2.43 | 0.00 | 1.41 | -21.24 | 46.09 | 14.81 | 206.91 | 0.5285 | -774.0 | -624.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
