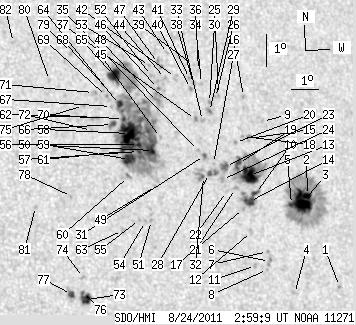

SDO HMI 2011-08-24 02:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 146.39 | 712.19 | 84.83 | 413.48 | 17.94 | 60.65 | 29.92 | 293.57 | 0.5199 | -131.5 | -59.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-24 02:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.97 | 13.70 | 65.32 | 34.60 | 284.00 | 0.5707 | -815.0 | -626.8 | |
| 3.77 | 162.27 | 2.27 | 97.36 | 16.55 | 64.63 | 33.91 | 289.15 | 0.5682 | -951.9 | -285.5 | |
| 22.28 | -2.00 | 13.35 | -2.00 | 16.35 | 64.40 | 33.68 | 288.88 | 0.5645 | -1117.2 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.59 | 13.60 | 63.61 | 32.89 | 284.22 | 0.5466 | -838.0 | -628.7 | |
| 2.88 | -2.00 | 1.71 | -2.00 | 16.31 | 63.98 | 33.25 | 288.97 | 0.5586 | -1147.3 | 999999 | |
| 0.00 | 3.23 | 0.00 | 1.90 | 14.63 | 62.85 | 32.13 | 286.33 | 0.5383 | -728.0 | -647.2 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 14.94 | 62.83 | 32.11 | 286.90 | 0.5388 | -589.0 | -547.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 14.39 | 62.74 | 32.02 | 285.92 | 0.5361 | -775.0 | -624.0 | |
| 0.00 | 1.89 | 0.00 | 1.13 | 18.93 | 63.41 | 32.69 | 293.75 | 0.5603 | 642.0 | 476.0 | |
| 3.14 | 16.26 | 1.85 | 9.55 | 16.73 | 62.70 | 31.98 | 290.21 | 0.5426 | -594.6 | -785.0 | |
| 0.00 | 2.25 | 0.00 | 1.31 | 14.54 | 62.32 | 31.60 | 286.33 | 0.5306 | -799.0 | -602.8 | |
| 0.00 | 2.25 | 0.00 | 1.31 | 15.58 | 62.35 | 31.62 | 288.26 | 0.5339 | -600.0 | -548.5 | |
| 19.77 | 72.42 | 11.64 | 42.68 | 17.30 | 62.59 | 31.86 | 291.27 | 0.5430 | -982.3 | -352.0 | |
| 7.82 | -10.00 | 4.59 | -10.00 | 16.50 | 62.44 | 31.71 | 289.90 | 0.5381 | -934.2 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.70 | 18.44 | 62.78 | 32.05 | 293.20 | 0.5499 | -616.0 | -512.2 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 19.74 | 62.87 | 32.15 | 295.42 | 0.5567 | -720.0 | -589.6 | |
| 0.00 | 1.71 | 0.00 | 1.00 | 16.30 | 62.18 | 31.45 | 289.65 | 0.5338 | -958.0 | -802.3 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 18.51 | 62.57 | 31.84 | 293.44 | 0.5474 | -695.0 | -600.5 | |
| 5.93 | -13.00 | 3.48 | -13.00 | 17.69 | 62.25 | 31.53 | 292.13 | 0.5399 | -922.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 18.34 | 62.27 | 31.55 | 293.29 | 0.5427 | -839.0 | -683.9 | |
| 0.00 | 2.34 | 0.00 | 1.37 | 16.93 | 61.99 | 31.27 | 290.87 | 0.5335 | -833.0 | -722.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 16.86 | 61.65 | 30.92 | 290.90 | 0.5285 | -681.0 | -587.6 | |
| 5.39 | 7.37 | 3.15 | 4.31 | 17.63 | 61.75 | 31.03 | 292.25 | 0.5329 | -944.6 | -820.1 | |
| 0.00 | 2.52 | 0.00 | 1.47 | 17.24 | 61.57 | 30.85 | 291.62 | 0.5288 | -455.0 | -449.0 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 19.86 | 61.95 | 31.23 | 296.12 | 0.5452 | -704.0 | -687.3 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 19.77 | 61.82 | 31.10 | 296.05 | 0.5430 | -695.0 | -598.6 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 17.75 | 61.33 | 30.61 | 292.67 | 0.5276 | -908.0 | -730.0 | |
| 2.25 | 6.38 | 1.30 | 3.71 | 17.45 | 61.13 | 30.40 | 292.23 | 0.5236 | -885.3 | -854.9 | |
| 1.35 | 2.70 | 0.79 | 1.58 | 19.36 | 61.50 | 30.78 | 295.48 | 0.5369 | -901.9 | -802.9 | |
| 0.00 | 1.62 | 0.00 | 0.95 | 19.63 | 61.56 | 30.84 | 295.94 | 0.5390 | -824.0 | -743.6 | |
| 1.89 | 2.43 | 1.10 | 1.41 | 18.01 | 61.05 | 30.33 | 293.30 | 0.5249 | -866.9 | -787.8 | |
| 1.17 | 9.07 | 0.68 | 5.25 | 17.37 | 60.89 | 30.17 | 292.20 | 0.5201 | -919.3 | -665.9 | |
| 0.00 | 2.16 | 0.00 | 1.26 | 19.09 | 61.19 | 30.46 | 295.19 | 0.5315 | -910.0 | -726.4 | |
| 0.00 | 1.71 | 0.00 | 1.00 | 20.24 | 61.39 | 30.67 | 297.10 | 0.5397 | -668.0 | -558.4 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 18.18 | 60.86 | 30.14 | 293.71 | 0.5230 | -737.0 | -656.1 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 20.65 | 61.37 | 30.65 | 297.83 | 0.5415 | -740.0 | -576.8 | |
| 0.00 | 2.16 | 0.00 | 1.26 | 19.14 | 60.94 | 30.21 | 295.41 | 0.5284 | -956.0 | -846.0 | |
| 0.00 | 1.98 | 0.00 | 1.16 | 20.26 | 61.10 | 30.37 | 297.31 | 0.5359 | -768.0 | -643.6 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 20.81 | 61.22 | 30.50 | 298.21 | 0.5404 | -558.0 | -469.5 | |
| 0.00 | 1.89 | 0.00 | 1.10 | 20.11 | 60.95 | 30.23 | 297.13 | 0.5333 | -871.0 | -690.9 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 20.42 | 60.98 | 30.26 | 297.67 | 0.5353 | -772.0 | -656.6 | |
| 0.00 | 2.70 | 0.00 | 1.57 | 20.48 | 60.47 | 29.75 | 298.09 | 0.5290 | -548.0 | -601.9 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 21.24 | 60.34 | 29.61 | 299.52 | 0.5314 | -543.0 | -429.1 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 20.47 | 60.10 | 29.37 | 298.31 | 0.5240 | -798.0 | -699.4 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 18.66 | 59.55 | 28.83 | 295.34 | 0.5075 | -148.0 | -128.1 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 20.18 | 59.78 | 29.05 | 297.99 | 0.5182 | -923.0 | -751.7 | |
| 0.00 | 4.04 | 0.00 | 2.35 | 20.95 | 59.94 | 29.21 | 299.27 | 0.5246 | -704.0 | -652.6 | |
| 0.00 | 12.76 | 0.00 | 7.36 | 19.78 | 59.66 | 28.93 | 297.34 | 0.5146 | -118.0 | -344.5 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 17.16 | 59.11 | 28.38 | 292.74 | 0.4945 | -113.0 | -33.5 | |
| 1.53 | 246.54 | 0.87 | 140.57 | 18.27 | 59.23 | 28.50 | 294.81 | 0.5012 | -640.0 | 279.5 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 16.13 | 58.80 | 28.07 | 290.88 | 0.4858 | 678.0 | 535.4 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 20.59 | 59.60 | 28.88 | 298.86 | 0.5183 | -926.0 | -745.4 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 20.91 | 59.59 | 28.87 | 299.43 | 0.5199 | -766.0 | -584.4 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 16.11 | 58.58 | 27.86 | 290.95 | 0.4826 | 722.0 | 626.3 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 16.19 | 58.38 | 27.65 | 291.21 | 0.4800 | 749.0 | 628.8 | |
| 2.07 | -50.00 | 1.18 | -50.00 | 18.49 | 58.72 | 28.00 | 295.53 | 0.4953 | 618.5 | 999999 | |
| 1.80 | -50.00 | 1.02 | -50.00 | 18.27 | 58.68 | 27.96 | 295.14 | 0.4938 | 662.9 | 999999 | |
| 20.67 | -50.00 | 11.76 | -50.00 | 18.85 | 58.46 | 27.73 | 296.38 | 0.4936 | 1105.9 | 999999 | |
| 9.52 | -50.00 | 5.40 | -50.00 | 18.04 | 58.32 | 27.59 | 294.93 | 0.4876 | 1095.7 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.02 | 17.52 | 58.19 | 27.47 | 293.98 | 0.4834 | 904.0 | 781.8 | |
| 0.54 | -50.00 | 0.31 | -50.00 | 18.30 | 58.15 | 27.42 | 295.54 | 0.4866 | 1061.0 | 999999 | |
| 1.71 | -50.00 | 0.97 | -50.00 | 19.32 | 58.33 | 27.60 | 297.37 | 0.4944 | 832.4 | 999999 | |
| 0.00 | 2.79 | 0.00 | 1.56 | 15.88 | 57.73 | 27.00 | 290.94 | 0.4695 | 791.0 | 574.5 | |
| 3.77 | -50.00 | 2.15 | -50.00 | 19.76 | 58.26 | 27.54 | 298.25 | 0.4960 | 909.1 | 999999 | |
| 13.12 | 57.86 | 7.50 | 33.18 | 20.67 | 58.26 | 27.53 | 299.94 | 0.5011 | 915.2 | 4.0 | |
| 2.97 | 4.58 | 1.68 | 2.60 | 19.16 | 57.90 | 27.18 | 297.36 | 0.4877 | 942.7 | 757.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 19.71 | 57.96 | 27.24 | 298.37 | 0.4917 | 993.0 | 716.6 | |
| 0.00 | 1.53 | 0.00 | 0.87 | 20.12 | 58.04 | 27.32 | 299.08 | 0.4950 | 435.0 | 383.8 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 20.03 | 57.84 | 27.12 | 299.06 | 0.4919 | 683.0 | 616.1 | |
| 0.00 | 2.61 | 0.00 | 1.47 | 19.40 | 57.33 | 26.61 | 298.24 | 0.4815 | 913.0 | 789.7 | |
| 0.00 | 2.97 | 0.00 | 1.68 | 20.18 | 57.40 | 26.68 | 299.68 | 0.4870 | 711.0 | 626.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 19.01 | 57.12 | 26.39 | 297.63 | 0.4763 | 670.0 | 628.6 | |
| 7.28 | 10.96 | 4.01 | 6.04 | 13.84 | 56.20 | 25.47 | 287.36 | 0.4394 | 944.9 | 777.9 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 14.52 | 56.18 | 25.45 | 288.87 | 0.4415 | 707.0 | 565.5 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 19.80 | 56.97 | 26.25 | 299.28 | 0.4789 | 918.0 | 756.9 | |
| 0.27 | -73.00 | 0.15 | -73.00 | 14.06 | 56.09 | 25.36 | 287.91 | 0.4385 | 877.0 | 999999 | |
| 3.50 | 6.29 | 1.92 | 3.45 | 14.02 | 55.70 | 24.98 | 288.01 | 0.4326 | 1018.5 | 727.7 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 17.02 | 56.09 | 25.37 | 294.31 | 0.4514 | 759.0 | 583.7 | |
| 0.00 | 2.43 | 0.00 | 1.37 | 21.47 | 56.84 | 26.12 | 302.53 | 0.4879 | 639.0 | 543.1 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 20.63 | 55.90 | 25.17 | 301.76 | 0.4701 | 678.0 | 557.2 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 16.77 | 54.80 | 24.08 | 294.71 | 0.4318 | 685.0 | 617.7 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 21.88 | 54.83 | 24.11 | 305.12 | 0.4653 | 812.0 | 612.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
