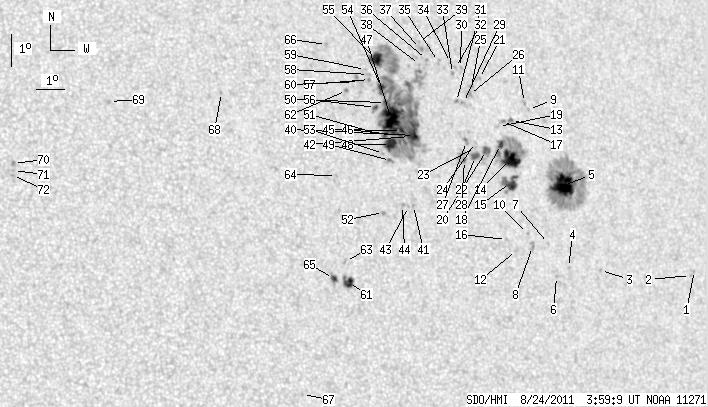

SDO HMI 2011-08-24 03:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 159.06 | 702.33 | 92.54 | 409.50 | 17.88 | 60.49 | 30.31 | 293.30 | 0.5248 | -57.9 | -67.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-24 03:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.51 | 13.43 | 68.94 | 38.77 | 282.78 | 0.6267 | -659.0 | -558.9 | |
| 0.00 | 0.99 | 0.00 | 0.63 | 13.29 | 68.75 | 38.58 | 282.58 | 0.6241 | -493.0 | -435.0 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 13.69 | 65.31 | 35.14 | 283.87 | 0.5781 | -762.0 | -611.5 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 13.87 | 64.12 | 33.95 | 284.44 | 0.5620 | -570.0 | -558.1 | |
| 28.66 | 156.80 | 17.28 | 94.65 | 16.37 | 64.39 | 34.22 | 288.74 | 0.5719 | -1122.0 | -298.4 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 13.62 | 63.63 | 33.46 | 284.13 | 0.5547 | -843.0 | -709.4 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 14.64 | 63.50 | 33.33 | 285.99 | 0.5551 | 705.0 | 490.2 | |
| 0.00 | 4.31 | 0.00 | 2.55 | 14.59 | 62.90 | 32.72 | 286.08 | 0.5465 | -657.0 | -597.9 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 18.79 | 63.57 | 33.39 | 293.20 | 0.5690 | 597.0 | 434.5 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 15.00 | 62.78 | 32.60 | 286.85 | 0.5459 | -695.0 | -567.9 | |
| 0.00 | 1.98 | 0.00 | 1.19 | 19.01 | 63.46 | 33.29 | 293.63 | 0.5685 | 696.0 | 535.4 | |
| 0.00 | 2.07 | 0.00 | 1.21 | 14.51 | 62.29 | 32.11 | 286.11 | 0.5377 | -780.0 | -472.0 | |
| 0.00 | 2.43 | 0.00 | 1.45 | 18.49 | 62.85 | 32.68 | 293.01 | 0.5584 | -680.0 | -579.4 | |
| 19.68 | 65.24 | 11.66 | 38.67 | 17.30 | 62.57 | 32.39 | 291.05 | 0.5501 | -1009.9 | -393.7 | |
| 13.93 | 18.24 | 8.22 | 10.76 | 16.59 | 62.43 | 32.25 | 289.85 | 0.5459 | -880.8 | -744.6 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 14.87 | 61.98 | 31.80 | 286.87 | 0.5343 | -783.0 | -503.1 | |
| 0.00 | 2.79 | 0.00 | 1.65 | 18.48 | 62.51 | 32.33 | 293.15 | 0.5538 | -684.0 | -560.0 | |
| 2.79 | -14.00 | 1.65 | -14.00 | 17.78 | 62.29 | 32.11 | 292.02 | 0.5481 | -853.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 18.34 | 62.33 | 32.15 | 292.99 | 0.5508 | -792.0 | -608.7 | |
| 5.48 | 16.89 | 3.22 | 9.90 | 17.63 | 61.73 | 31.56 | 292.00 | 0.5400 | -948.4 | -648.4 | |
| 0.00 | 1.35 | 0.00 | 0.80 | 19.86 | 61.94 | 31.76 | 295.83 | 0.5521 | -717.0 | -600.3 | |
| 5.03 | -20.00 | 2.94 | -20.00 | 17.47 | 61.29 | 31.11 | 291.92 | 0.5334 | -986.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 17.75 | 61.34 | 31.17 | 292.40 | 0.5352 | -867.0 | -713.5 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 17.90 | 61.37 | 31.20 | 292.66 | 0.5362 | -570.0 | -500.9 | |
| 0.00 | 2.07 | 0.00 | 1.22 | 19.63 | 61.58 | 31.41 | 295.63 | 0.5465 | -851.0 | -677.2 | |
| 0.00 | 3.59 | 0.00 | 2.12 | 19.39 | 61.45 | 31.28 | 295.27 | 0.5437 | -893.0 | -823.7 | |
| 0.00 | 2.97 | 0.00 | 1.73 | 17.95 | 61.05 | 30.87 | 292.91 | 0.5320 | -998.0 | -824.3 | |
| 1.44 | 10.15 | 0.84 | 5.91 | 17.37 | 60.86 | 30.69 | 291.95 | 0.5272 | -884.8 | -682.2 | |
| 0.00 | 1.71 | 0.00 | 1.00 | 19.16 | 61.18 | 31.00 | 295.01 | 0.5390 | -795.0 | -712.4 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 20.24 | 61.30 | 31.13 | 296.85 | 0.5457 | -507.0 | -498.5 | |
| 0.00 | 1.80 | 0.00 | 1.05 | 19.20 | 60.93 | 30.75 | 295.23 | 0.5358 | -966.0 | -833.6 | |
| 0.00 | 1.53 | 0.00 | 0.90 | 20.26 | 61.12 | 30.94 | 296.97 | 0.5433 | -765.0 | -627.4 | |
| 0.00 | 1.62 | 0.00 | 0.95 | 20.08 | 60.96 | 30.79 | 296.75 | 0.5405 | -847.0 | -667.7 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 20.42 | 60.96 | 30.79 | 297.35 | 0.5422 | -666.0 | -577.8 | |
| 0.00 | 1.98 | 0.00 | 1.16 | 20.48 | 60.52 | 30.35 | 297.71 | 0.5368 | -728.0 | -651.7 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 20.57 | 60.09 | 29.92 | 298.14 | 0.5316 | -858.0 | -709.2 | |
| 0.00 | 2.34 | 0.00 | 1.36 | 20.92 | 59.95 | 29.77 | 298.85 | 0.5316 | -930.0 | -759.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 20.43 | 59.80 | 29.63 | 298.07 | 0.5271 | -787.0 | -617.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 21.14 | 59.96 | 29.78 | 299.23 | 0.5330 | -580.0 | -461.4 | |
| 4.49 | 327.80 | 2.58 | 188.14 | 18.25 | 59.19 | 29.01 | 294.46 | 0.5080 | -483.6 | 145.0 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 16.10 | 58.78 | 28.61 | 290.55 | 0.4933 | 637.0 | 532.5 | |
| 1.80 | -40.00 | 1.03 | -40.00 | 18.23 | 59.00 | 28.83 | 294.53 | 0.5054 | 151.1 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 16.08 | 58.60 | 28.43 | 290.60 | 0.4906 | 734.0 | 598.9 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 16.13 | 58.39 | 28.22 | 290.79 | 0.4878 | 718.0 | 562.0 | |
| 2.16 | -40.00 | 1.23 | -40.00 | 18.43 | 58.75 | 28.57 | 295.06 | 0.5028 | 645.0 | 999999 | |
| 1.08 | -40.00 | 0.62 | -40.00 | 18.28 | 58.68 | 28.51 | 294.81 | 0.5012 | 586.2 | 999999 | |
| 30.37 | -40.00 | 17.36 | -40.00 | 18.79 | 58.45 | 28.27 | 295.92 | 0.5006 | 1067.0 | 999999 | |
| 11.41 | -40.00 | 6.50 | -40.00 | 18.02 | 58.27 | 28.10 | 294.56 | 0.4944 | 1096.6 | 999999 | |
| 0.00 | 2.79 | 0.00 | 1.58 | 17.53 | 58.19 | 28.01 | 293.66 | 0.4909 | 910.0 | 694.6 | |
| 2.25 | -40.00 | 1.28 | -40.00 | 19.32 | 58.33 | 28.15 | 297.01 | 0.5017 | 941.4 | 999999 | |
| 1.44 | -40.00 | 0.82 | -40.00 | 18.31 | 58.11 | 27.93 | 295.22 | 0.4935 | 1091.8 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.01 | 15.95 | 57.69 | 27.51 | 290.80 | 0.4770 | 784.0 | 653.3 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 17.76 | 57.98 | 27.80 | 294.23 | 0.4891 | 788.0 | 638.6 | |
| 3.68 | -40.00 | 2.11 | -40.00 | 19.79 | 58.27 | 28.10 | 297.93 | 0.5035 | 917.6 | 999999 | |
| 11.32 | -40.00 | 6.50 | -40.00 | 20.67 | 58.26 | 28.09 | 299.55 | 0.5084 | 956.5 | 999999 | |
| 1.98 | 3.86 | 1.13 | 2.20 | 19.19 | 57.94 | 27.76 | 297.01 | 0.4958 | 945.7 | 764.6 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 20.07 | 57.89 | 27.71 | 298.70 | 0.4999 | 791.0 | 682.4 | |
| 0.00 | 1.89 | 0.00 | 1.08 | 20.22 | 57.88 | 27.70 | 298.99 | 0.5007 | 569.0 | 522.4 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 20.38 | 57.80 | 27.63 | 299.35 | 0.5007 | 559.0 | 430.0 | |
| 0.00 | 6.29 | 0.00 | 3.58 | 20.02 | 57.51 | 27.34 | 298.89 | 0.4948 | 729.0 | 635.1 | |
| 7.28 | 9.88 | 4.03 | 5.47 | 13.88 | 56.18 | 26.00 | 287.19 | 0.4473 | 934.4 | 809.5 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 19.77 | 56.99 | 26.82 | 298.79 | 0.4864 | 930.0 | 797.6 | |
| 0.00 | 1.89 | 0.00 | 1.05 | 14.52 | 56.15 | 25.98 | 288.61 | 0.4493 | 698.0 | 495.5 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 17.17 | 56.20 | 26.03 | 294.18 | 0.4615 | 787.0 | 646.1 | |
| 2.79 | 6.29 | 1.54 | 3.47 | 14.03 | 55.67 | 25.50 | 287.76 | 0.4404 | 1033.0 | 791.5 | |
| 0.00 | 1.80 | 0.00 | 1.02 | 21.23 | 56.55 | 26.37 | 301.89 | 0.4896 | 780.0 | 584.5 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 10.56 | 54.26 | 24.09 | 280.23 | 0.4094 | 640.0 | 463.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 19.92 | 52.58 | 22.41 | 302.94 | 0.4288 | 712.0 | 554.4 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 19.80 | 48.71 | 18.54 | 307.25 | 0.3773 | 891.0 | 657.0 | |
| 0.00 | 2.52 | 0.00 | 1.31 | 17.99 | 45.31 | 15.13 | 308.09 | 0.3168 | 977.0 | 781.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 17.77 | 45.29 | 15.11 | 307.55 | 0.3145 | 908.0 | 722.4 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 17.62 | 45.24 | 15.07 | 307.23 | 0.3125 | 927.0 | 706.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
