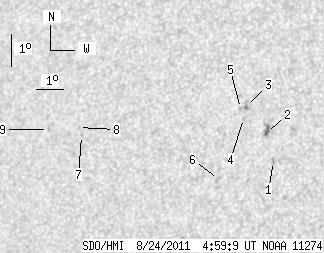

SDO HMI 2011-08-24 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 19.52 | 0.31 | 11.35 | 18.15 | 359.55 | -30.08 | 66.19 | 0.5220 | -296.9 | -435.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-24 04:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.34 | 0.00 | 1.33 | 17.46 | 1.61 | -28.02 | 66.46 | 0.4907 | -751.0 | -565.8 | |
| 0.54 | 5.57 | 0.31 | 3.19 | 18.34 | 1.21 | -28.42 | 65.02 | 0.5004 | -1050.7 | -806.2 | |
| 0.00 | 3.06 | 0.00 | 1.77 | 19.13 | 0.33 | -29.30 | 64.07 | 0.5162 | -855.0 | -744.3 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 18.73 | 0.29 | -29.33 | 64.84 | 0.5146 | -717.0 | -535.3 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 19.03 | 0.12 | -29.50 | 64.38 | 0.5184 | -564.0 | -482.5 | |
| 0.00 | 2.79 | 0.00 | 1.61 | 16.80 | 359.73 | -29.90 | 68.74 | 0.5141 | -447.0 | -363.7 | |
| 0.00 | 1.17 | 0.00 | 0.72 | 17.82 | 354.35 | -35.28 | 69.19 | 0.5904 | 640.0 | 550.2 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 18.06 | 354.18 | -35.45 | 68.86 | 0.5934 | 631.0 | 523.0 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 17.92 | 353.03 | -36.60 | 69.49 | 0.6079 | 675.0 | 535.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
