group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11271	146.42	737.04	86.33	434.49	17.99	60.47	31.38	292.94	0.5398	-45.5	-61.1

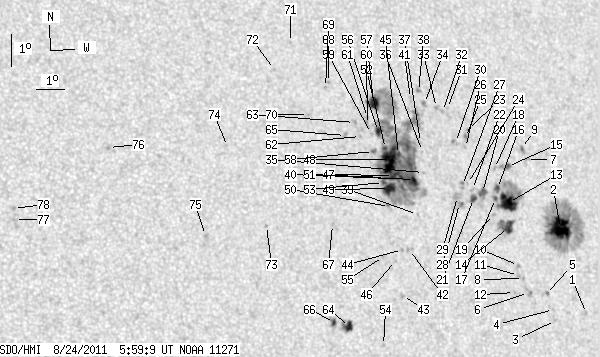

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-08-24 05:59:09 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.35	0.00	0.82	13.74	64.91	35.83	283.80	0.5878	-736.0	-516.5
2	28.31	160.42	17.29	98.12	16.39	64.42	35.34	288.41	0.5870	-1148.8	-262.3
3	0.00	0.81	0.00	0.49	13.61	63.70	34.62	283.83	0.5709	-817.0	-663.0
4	0.00	1.35	0.00	0.81	13.95	63.69	34.61	284.43	0.5713	-697.0	-490.5
5	0.00	2.88	0.00	1.73	14.42	63.46	34.38	285.31	0.5692	288.0	576.2
6	0.00	4.49	0.00	2.68	14.53	62.84	33.76	285.66	0.5608	-478.0	-601.1
7	0.00	2.70	0.00	1.64	18.59	63.59	34.50	292.39	0.5829	717.0	476.0
8	0.00	1.44	0.00	0.86	14.96	62.73	33.65	286.47	0.5603	-807.0	-640.5
9	1.26	3.42	0.77	2.08	18.94	63.47	34.39	293.02	0.5827	572.0	657.2
10	0.00	1.26	0.00	0.75	15.37	62.61	33.53	287.22	0.5598	-764.0	-603.0
11	0.00	1.44	0.00	0.86	15.07	62.56	33.48	286.70	0.5582	-711.0	-520.9
12	0.00	0.81	0.00	0.48	14.56	62.32	33.24	285.87	0.5536	-737.0	-636.9
13	19.59	61.83	11.75	37.10	17.32	62.61	33.53	290.62	0.5656	-991.1	-324.2
14	9.08	19.68	5.42	11.75	16.56	62.46	33.38	289.35	0.5611	-857.5	-796.3
15	3.33	6.29	2.01	3.79	18.43	62.81	33.73	292.43	0.5721	-649.2	-657.2
16	3.15	-13.00	1.88	-13.00	17.78	62.29	33.21	291.54	0.5628	-837.4	999999
17	1.53	-13.00	0.91	-13.00	17.47	62.15	33.07	291.07	0.5599	-1027.7	999999
18	0.00	1.62	0.00	0.97	18.40	62.31	33.23	292.60	0.5653	-822.0	-716.4
19	0.00	1.17	0.00	0.70	16.99	61.98	32.89	290.30	0.5559	-901.0	-698.9
20	4.94	18.15	2.94	10.77	17.69	61.70	32.62	291.64	0.5546	-921.0	-604.5
21	3.95	-20.00	2.34	-20.00	17.53	61.33	32.25	291.51	0.5490	-955.1	999999
22	0.00	1.98	0.00	1.17	17.80	61.35	32.27	292.00	0.5503	-770.0	-670.4
23	0.00	1.08	0.00	0.64	19.66	61.56	32.48	295.12	0.5606	-874.0	-753.3
24	0.00	1.17	0.00	0.69	18.00	61.20	32.12	292.41	0.5490	-619.0	-529.2
25	0.00	3.15	0.00	1.87	19.42	61.43	32.35	294.77	0.5578	-924.0	-779.2
26	0.00	1.17	0.00	0.69	19.11	61.36	32.28	294.27	0.5556	-757.0	-613.8
27	0.00	3.15	0.00	1.86	17.95	61.00	31.92	292.41	0.5462	-677.0	-681.3
28	0.00	4.04	0.00	2.38	17.41	60.78	31.70	291.54	0.5411	-947.0	-831.5
29	0.00	5.75	0.00	3.38	17.62	60.75	31.67	291.95	0.5415	-423.0	-405.7
30	0.00	2.97	0.00	1.76	19.29	61.02	31.94	294.75	0.5519	-709.0	-722.9
31	0.00	1.35	0.00	0.80	20.36	60.95	31.87	296.63	0.5559	-564.0	-511.1
32	0.00	1.71	0.00	1.01	20.28	60.74	31.66	296.60	0.5528	-817.0	-662.8
33	0.00	1.62	0.00	0.96	20.41	60.55	31.47	296.95	0.5509	-902.0	-748.4
34	0.00	3.06	0.00	1.80	20.57	60.13	31.05	297.45	0.5462	-803.0	-720.7
35	0.00	0.81	0.00	0.47	18.44	59.64	30.56	293.96	0.5298	-721.0	-515.7
36	0.00	0.90	0.00	0.53	19.09	59.73	30.65	295.07	0.5340	-565.0	-402.4
37	0.00	1.08	0.00	0.63	19.37	59.72	30.63	295.59	0.5351	-589.0	-392.1
38	0.00	1.89	0.00	1.11	20.95	59.99	30.91	298.20	0.5464	-820.0	-685.7
39	0.00	1.08	0.00	0.62	17.16	59.18	30.10	291.84	0.5182	-313.0	-270.2
40	2.25	351.30	1.30	203.76	18.24	59.27	30.19	293.80	0.5240	-818.2	103.3
41	0.00	2.34	0.00	1.37	20.75	59.64	30.56	298.06	0.5409	-840.0	-660.5
42	0.00	3.15	0.00	1.81	16.11	58.70	29.62	290.07	0.5076	697.0	505.1
43	0.00	2.34	0.00	1.33	14.72	58.23	29.15	287.57	0.4962	711.0	594.5
44	0.00	1.26	0.00	0.72	16.12	58.45	29.37	290.22	0.5041	749.0	574.9
45	2.25	-40.00	1.30	-40.00	19.05	58.83	29.75	295.51	0.5218	614.3	999999
46	0.00	1.08	0.00	0.62	15.80	58.15	29.07	289.74	0.4986	505.0	518.1
47	3.86	-40.00	2.23	-40.00	18.41	58.52	29.44	294.51	0.5147	778.0	999999
48	22.29	-40.00	12.88	-40.00	18.91	58.51	29.43	295.45	0.5168	1077.8	999999
49	9.98	-40.00	5.74	-40.00	18.02	58.30	29.22	293.91	0.5099	1086.1	999999
50	0.00	2.34	0.00	1.34	17.47	58.21	29.13	292.92	0.5061	708.0	621.5
51	1.44	-40.00	0.83	-40.00	18.37	58.22	29.14	294.60	0.5103	1109.4	999999
52	1.71	-40.00	0.99	-40.00	19.26	58.39	29.31	296.16	0.5169	867.8	999999
53	1.80	-40.00	1.03	-40.00	18.22	58.12	29.04	294.38	0.5083	1050.4	999999
54	0.00	0.72	0.00	0.41	13.24	57.35	28.27	284.90	0.4791	606.0	449.1
55	0.00	1.08	0.00	0.61	15.95	57.74	28.66	290.22	0.4933	844.0	683.8
56	5.03	-40.00	2.91	-40.00	19.80	58.24	29.16	297.24	0.5177	953.9	999999
57	12.40	-40.00	7.19	-40.00	20.71	58.24	29.16	298.87	0.5226	902.1	999999
58	0.54	2.52	0.31	1.45	19.19	57.94	28.86	296.31	0.5105	1012.5	885.7
59	0.00	0.90	0.00	0.52	19.75	57.97	28.89	297.32	0.5139	873.0	699.6
60	0.00	2.79	0.00	1.61	20.04	57.88	28.80	297.90	0.5142	788.0	718.9
61	0.00	1.35	0.00	0.78	20.25	57.93	28.85	298.27	0.5160	618.0	541.1
62	0.00	0.72	0.00	0.41	19.68	57.56	28.48	297.46	0.5080	810.0	679.6
63	0.00	2.16	0.00	1.24	20.13	57.42	28.34	298.37	0.5086	736.0	623.3
64	5.66	10.96	3.16	6.12	13.88	56.23	27.15	286.68	0.4644	917.0	828.5
65	0.00	2.52	0.00	1.44	19.74	57.02	27.94	297.94	0.5012	901.0	735.9
66	2.07	4.85	1.15	2.70	14.03	55.73	26.65	287.22	0.4574	992.3	860.2
67	0.00	1.17	0.00	0.66	17.03	56.08	27.00	293.28	0.4745	749.0	624.2
68	0.00	1.08	0.00	0.62	21.42	56.73	27.65	301.23	0.5072	651.0	596.2
69	0.00	1.08	0.00	0.62	21.27	56.59	27.51	301.06	0.5045	852.0	729.5
70	0.00	0.72	0.00	0.41	20.46	55.81	26.73	300.17	0.4894	690.0	539.6
71	0.00	0.99	0.00	0.57	22.74	55.61	26.53	304.50	0.5018	590.0	432.4
72	0.00	1.08	0.00	0.61	21.93	54.86	25.78	303.68	0.4867	832.0	636.6
73	0.00	1.17	0.00	0.64	17.12	53.76	24.68	295.01	0.4422	767.0	592.2
74	0.00	0.36	0.00	0.20	19.62	52.77	23.69	301.07	0.4437	645.0	625.2
75	0.00	1.35	0.00	0.73	16.91	51.62	22.54	296.25	0.4107	793.0	632.9
76	0.00	1.44	0.00	0.77	19.76	48.67	19.59	305.79	0.3906	953.0	796.9
77	0.00	1.26	0.00	0.66	17.65	45.27	16.19	305.47	0.3277	997.0	678.5
78	0.00	1.89	0.00	0.99	17.99	45.27	16.19	306.35	0.3307	908.0	763.1

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
