groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11271 139.17 681.51 85.43 416.77 17.93 60.60 34.81 291.32 0.5851 -129.7 -0.8


previous   or   next   observation for the same group / back to the solar disc

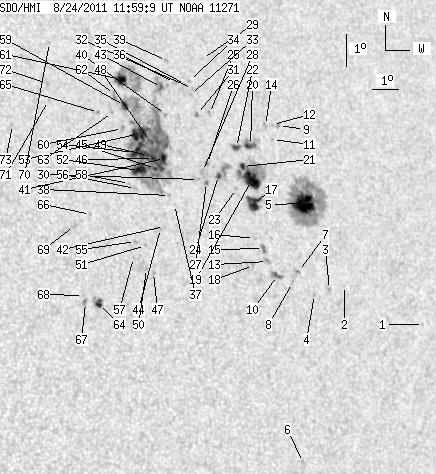

SDO HMI 2011-08-24 11:59:09 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.17 0.00 0.78 12.41 68.50 42.71 280.76 0.6766 -502.0 -392.6
2 0.00 0.81 0.00 0.52 13.84 65.51 39.72 283.28 0.6398 -566.0 -387.0
3 0.00 1.62 0.00 1.03 13.76 64.89 39.10 283.26 0.6316 -739.0 -535.1
4 0.00 1.08 0.00 0.68 13.66 64.27 38.48 283.19 0.6232 -763.0 -595.5
5 27.94 135.47 17.79 86.42 16.45 64.46 38.68 287.58 0.6309 -1097.2 -258.8
6 0.00 1.53 0.00 0.95 8.61 63.06 37.27 275.04 0.6033 -663.0 -485.5
7 0.00 1.44 0.00 0.90 14.40 63.77 37.99 284.47 0.6179 768.0 691.7
8 0.00 1.35 0.00 0.84 14.08 63.47 37.68 284.02 0.6134 613.0 397.7
9 0.00 1.98 0.00 1.26 18.91 64.03 38.24 291.54 0.6318 691.0 567.0
10 3.50 6.11 2.18 3.80 14.34 62.93 37.14 284.54 0.6066 -621.8 -577.6
11 0.00 0.90 0.00 0.57 18.50 63.68 37.89 291.02 0.6261 535.0 446.6
12 0.00 0.81 0.00 0.51 18.96 63.80 38.01 291.70 0.6290 525.0 373.4
13 0.00 3.05 0.00 1.89 14.79 62.63 36.84 285.35 0.6033 -696.0 -618.7
14 0.00 2.43 0.00 1.54 18.95 63.51 37.72 291.78 0.6254 747.0 449.4
15 1.80 2.78 1.11 1.73 15.20 62.55 36.76 286.04 0.6032 -782.4 -762.6
16 0.00 1.62 0.00 1.00 15.53 62.26 36.48 286.65 0.6001 -527.0 -488.8
17 13.83 18.96 8.59 11.78 16.60 62.45 36.67 288.35 0.6052 -926.2 -430.0
18 0.00 1.80 0.00 1.11 14.71 62.06 36.27 285.35 0.5956 -819.0 -742.9
19 17.88 58.66 11.14 36.59 17.30 62.54 36.75 289.48 0.6081 -998.3 -335.4
20 5.12 12.49 3.21 7.83 18.38 62.76 36.97 291.13 0.6141 -650.7 -410.5
21 2.70 -19.00 1.68 -19.00 17.76 62.29 36.50 290.29 0.6062 -847.9 999999
22 3.68 5.03 2.29 3.13 18.35 62.19 36.40 291.29 0.6068 -844.4 -722.4
23 0.00 0.81 0.00 0.50 17.10 61.90 36.11 289.35 0.5992 -842.0 -686.8
24 2.34 12.31 1.43 7.58 17.55 61.29 35.50 290.29 0.5925 -911.7 -746.1
25 0.00 2.07 0.00 1.28 19.47 61.40 35.61 293.39 0.6004 -804.0 -674.1
26 0.00 1.35 0.00 0.82 17.94 60.95 35.16 291.06 0.5893 -932.0 -784.7
27 0.54 1.89 0.33 1.15 17.36 60.78 34.99 290.16 0.5853 -930.0 -855.5
28 0.00 2.43 0.00 1.48 17.71 60.70 34.92 290.77 0.5853 -367.0 -430.6
29 0.00 0.90 0.00 0.56 21.19 61.58 35.79 296.06 0.6092 -595.0 -455.9
30 0.00 1.17 0.00 0.71 17.47 60.50 34.71 290.45 0.5818 -886.0 -761.7
31 1.44 2.07 0.88 1.27 19.47 60.89 35.10 293.61 0.5938 -820.9 -807.3
32 0.00 0.99 0.00 0.61 20.29 60.94 35.15 294.91 0.5976 -688.0 -587.5
33 0.00 1.71 0.00 1.05 20.11 60.81 35.02 294.67 0.5952 -713.0 -564.3
34 0.00 1.35 0.00 0.83 20.54 60.88 35.10 295.34 0.5979 -684.0 -528.1
35 0.00 0.99 0.00 0.61 20.43 60.70 34.91 295.24 0.5951 -780.0 -625.1
36 0.00 2.16 0.00 1.32 20.52 60.29 34.50 295.58 0.5903 -761.0 -616.1
37 0.00 0.99 0.00 0.59 16.77 59.43 33.64 289.64 0.5653 512.0 358.3
38 0.00 1.17 0.00 0.70 17.06 59.29 33.51 290.19 0.5644 439.0 352.9
39 0.00 1.98 0.00 1.21 21.22 60.15 34.37 296.78 0.5916 -585.0 -522.6
40 0.00 1.17 0.00 0.71 19.55 59.69 33.91 294.27 0.5788 -731.0 -585.7
41 2.96 281.55 1.78 168.58 18.20 59.35 33.56 292.14 0.5691 -703.8 240.3
42 0.00 0.99 0.00 0.59 16.12 58.92 33.13 288.69 0.5565 622.0 477.7
43 1.89 13.03 1.15 7.92 20.40 59.75 33.96 295.64 0.5829 -877.9 -608.1
44 0.00 1.17 0.00 0.69 16.07 58.76 32.97 288.66 0.5541 561.0 469.5
45 1.08 -41.00 0.64 -41.00 17.92 58.94 33.15 291.82 0.5626 708.8 999999
46 2.25 -41.00 1.34 -41.00 18.23 58.93 33.14 292.36 0.5637 712.8 999999
47 0.00 1.44 0.00 0.85 14.75 58.26 32.47 286.45 0.5435 729.0 600.1
48 2.34 -41.00 1.40 -41.00 18.76 58.93 33.14 293.27 0.5657 394.1 999999
49 0.90 -41.00 0.54 -41.00 18.33 58.76 32.97 292.62 0.5618 700.7 999999
50 0.00 1.53 0.00 0.90 14.89 58.03 32.24 286.78 0.5405 616.0 549.6
51 0.00 0.90 0.00 0.53 15.59 58.11 32.32 288.03 0.5437 623.0 517.4
52 8.80 -41.00 5.23 -41.00 17.90 58.33 32.54 292.05 0.5544 1030.5 999999
53 16.98 -41.00 10.15 -41.00 19.03 58.57 32.78 293.91 0.5620 885.8 999999
54 5.84 -41.00 3.48 -41.00 18.46 58.29 32.51 293.04 0.5561 1168.7 999999
55 0.00 1.53 0.00 0.90 15.73 57.76 31.98 288.42 0.5393 696.0 568.5
56 0.00 1.98 0.00 1.17 17.35 58.07 32.28 291.21 0.5489 726.0 517.0
57 0.00 1.08 0.00 0.63 15.25 57.61 31.82 287.59 0.5357 359.0 374.2
58 0.00 1.17 0.00 0.69 17.52 57.87 32.09 291.59 0.5469 710.0 538.2
59 4.94 -41.00 2.95 -41.00 19.93 58.20 32.41 295.62 0.5610 893.1 999999
60 0.00 2.78 0.00 1.66 19.23 57.97 32.18 294.53 0.5549 813.0 686.7
61 5.75 46.62 3.45 28.05 20.74 58.28 32.49 296.96 0.5657 937.6 50.6
62 0.00 3.68 0.00 2.20 20.29 57.90 32.12 296.40 0.5588 689.0 658.2
63 0.00 1.17 0.00 0.69 19.74 57.70 31.91 295.56 0.5537 858.0 716.2
64 4.67 8.18 2.69 4.70 13.93 56.12 30.33 285.61 0.5109 892.6 721.1
65 0.00 1.26 0.00 0.74 19.78 57.18 31.39 295.90 0.5470 803.0 672.1
66 0.00 1.53 0.00 0.89 16.66 56.26 30.47 290.74 0.5216 755.0 624.0
67 0.00 2.87 0.00 1.65 13.99 55.65 29.87 285.88 0.5044 945.0 801.0
68 0.00 0.99 0.00 0.57 14.20 55.61 29.82 286.32 0.5044 919.0 770.4
69 0.00 3.41 0.00 1.97 16.36 55.63 29.84 290.47 0.5116 680.0 597.6
70 0.00 0.99 0.00 0.58 22.06 55.85 30.06 300.65 0.5417 616.0 470.6
71 0.00 1.08 0.00 0.63 20.26 55.41 29.62 297.79 0.5261 636.0 456.6
72 0.00 1.35 0.00 0.79 20.79 55.48 29.69 298.68 0.5299 802.0 631.7
73 0.00 0.63 0.00 0.36 19.59 53.95 28.16 297.52 0.5033 692.0 572.1


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
