Sunspot Group 11271

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

11271	132.51	676.13	81.90	416.23	17.89	60.62	35.38	291.05	0.5925	-109.8	15.1

previous or next observation for the same group / back to the solar disc

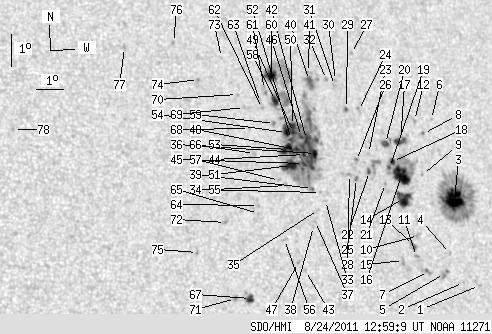

SDO HMI 2011-08-24 12:59:09 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.08	0.00	0.69	13.75	64.90	39.66	283.15	0.6389	-638.0	-513.4
2	0.00	0.81	0.00	0.52	13.89	64.28	39.04	283.47	0.6310	-625.0	-583.3
3	24.61	139.32	15.80	89.56	16.44	64.48	39.24	287.42	0.6382	-1123.0	-261.4
4	0.00	1.08	0.00	0.68	14.81	63.95	38.71	284.98	0.6281	821.0	647.1
5	0.00	5.75	0.00	3.63	14.22	63.58	38.35	284.11	0.6224	692.0	541.8
6	0.00	0.81	0.00	0.52	18.95	64.19	38.95	291.38	0.6408	626.0	518.3
7	0.00	2.16	0.00	1.35	14.33	62.97	37.73	284.40	0.6144	-752.0	-690.5
8	0.00	1.17	0.00	0.75	18.55	63.75	38.51	290.89	0.6341	578.0	445.5
9	0.00	1.08	0.00	0.68	17.29	63.39	38.15	289.05	0.6262	-498.0	-312.2
10	0.00	3.32	0.00	2.08	15.45	62.80	37.56	286.25	0.6143	-693.0	-415.1
11	0.00	1.80	0.00	1.12	14.82	62.59	37.35	285.28	0.6103	-763.0	-670.5
12	0.00	1.80	0.00	1.15	18.97	63.49	38.26	291.63	0.6322	666.0	504.6
13	0.00	3.59	0.00	2.24	15.16	62.54	37.30	285.85	0.6103	-858.0	-705.8
14	14.19	22.55	8.88	14.11	16.62	62.46	37.22	288.23	0.6125	-909.3	-511.4
15	0.00	2.60	0.00	1.61	14.73	62.06	36.82	285.26	0.6031	-773.0	-667.7
16	20.39	57.94	12.79	36.38	17.32	62.55	37.31	289.34	0.6155	-960.5	-258.0
17	6.20	11.86	3.91	7.48	18.37	62.77	37.53	290.93	0.6212	-674.6	-381.5
18	2.25	-16.00	1.41	-16.00	17.78	62.30	37.06	290.14	0.6135	-819.6	999999
19	1.71	-16.00	1.07	-16.00	17.60	62.13	36.90	289.91	0.6109	-956.2	999999
20	3.50	7.46	2.19	4.67	18.35	62.16	36.92	291.10	0.6134	-891.5	-661.2
21	0.00	0.99	0.00	0.61	17.12	61.86	36.63	289.23	0.6060	-710.0	-624.8
22	1.71	11.86	1.05	7.34	17.53	61.33	36.09	290.07	0.6002	-894.4	-746.2
23	0.00	1.17	0.00	0.72	18.09	61.42	36.18	290.94	0.6030	-712.0	-526.8
24	0.00	2.60	0.00	1.62	19.43	61.36	36.12	293.13	0.6067	-532.0	-527.3
25	1.89	1.89	1.16	1.16	17.36	60.77	35.54	289.96	0.5924	-807.2	0.0
26	0.00	2.69	0.00	1.66	17.91	60.90	35.66	290.82	0.5958	-723.0	-733.8
27	0.00	1.53	0.00	0.96	21.21	61.56	36.32	295.86	0.6159	-591.0	-444.5
28	0.00	2.34	0.00	1.43	17.50	60.53	35.30	290.28	0.5897	-870.0	-692.0
29	1.08	1.71	0.67	1.06	19.53	60.90	35.66	293.47	0.6012	-871.2	-773.3
30	0.00	1.17	0.00	0.72	20.42	60.70	35.46	294.99	0.6020	-773.0	-641.9
31	0.00	1.71	0.00	1.06	20.27	60.62	35.38	294.78	0.6004	-843.0	-671.6
32	0.00	1.26	0.00	0.78	20.48	60.35	35.12	295.23	0.5979	-845.0	-764.6
33	0.00	1.08	0.00	0.65	16.76	59.45	34.21	289.42	0.5730	525.0	370.5
34	0.00	1.08	0.00	0.65	17.02	59.31	34.07	289.91	0.5719	510.0	369.2
35	0.00	0.99	0.00	0.59	16.51	59.13	33.89	289.09	0.5679	558.0	427.7
36	2.60	240.64	1.58	144.99	18.23	59.38	34.14	291.94	0.5768	-689.4	282.3
37	0.00	1.53	0.00	0.91	16.15	58.94	33.70	288.54	0.5643	704.0	472.6
38	0.00	0.99	0.00	0.59	16.00	58.84	33.60	288.31	0.5625	638.0	524.8
39	0.36	-36.00	0.22	-36.00	17.16	59.03	33.79	290.26	0.5686	-469.0	999999
40	3.59	10.06	2.20	6.16	20.49	59.69	34.45	295.55	0.5895	-940.1	-565.7
41	0.00	2.25	0.00	1.38	20.74	59.71	34.47	295.95	0.5909	-826.0	-722.9
42	1.89	-36.00	1.14	-36.00	18.68	59.13	33.89	292.80	0.5752	654.8	999999
43	0.00	1.35	0.00	0.80	14.68	58.30	33.06	286.15	0.5515	707.0	562.2
44	1.35	-36.00	0.81	-36.00	18.22	58.95	33.71	292.11	0.5712	588.5	999999
45	1.89	-36.00	1.13	-36.00	17.95	58.85	33.62	291.68	0.5689	604.1	999999
46	2.16	-36.00	1.30	-36.00	18.78	58.96	33.72	293.05	0.5734	553.3	999999
47	0.00	1.35	0.00	0.80	14.94	58.08	32.84	286.68	0.5491	663.0	536.1
48	1.80	-36.00	1.08	-36.00	18.40	58.68	33.45	292.52	0.5683	642.8	999999
49	1.44	-36.00	0.87	-36.00	18.93	58.69	33.45	293.42	0.5703	915.6	999999
50	2.78	-36.00	1.68	-36.00	19.14	58.70	33.46	293.78	0.5713	765.4	999999
51	7.99	-36.00	4.78	-36.00	17.92	58.39	33.15	291.82	0.5626	1048.0	999999
52	1.17	-36.00	0.70	-36.00	18.72	58.56	33.32	293.12	0.5679	942.0	999999
53	7.28	-36.00	4.36	-36.00	18.42	58.34	33.11	292.70	0.5639	1074.7	999999
54	4.04	-36.00	2.43	-36.00	18.94	58.42	33.18	293.57	0.5669	1098.7	999999
55	0.00	2.87	0.00	1.71	17.32	58.07	32.84	290.91	0.5563	658.0	450.3
56	0.00	2.25	0.00	1.33	15.67	57.69	32.45	288.13	0.5457	623.0	579.3
57	0.00	1.44	0.00	0.85	17.49	57.84	32.61	291.30	0.5538	666.0	502.1
58	4.76	26.05	2.86	15.69	19.96	58.23	32.99	295.37	0.5687	865.7	135.1
59	0.00	1.53	0.00	0.91	19.25	58.03	32.79	294.27	0.5630	880.0	781.5
60	4.85	49.58	2.92	30.02	20.71	58.26	33.02	296.62	0.5723	964.1	23.1
61	0.00	3.32	0.00	1.99	20.32	57.90	32.66	296.16	0.5659	609.0	593.8
62	0.00	0.81	0.00	0.48	19.74	57.68	32.45	295.28	0.5606	827.0	689.2
63	0.00	2.60	0.00	1.56	19.93	57.65	32.41	295.62	0.5610	640.0	508.2
64	0.00	1.17	0.00	0.69	16.77	56.92	31.68	290.42	0.5386	752.0	600.7
65	0.00	1.17	0.00	0.68	16.53	56.87	31.63	289.99	0.5371	662.0	506.5
66	0.00	2.25	0.00	1.33	18.37	57.08	31.84	293.21	0.5469	674.0	470.3
67	5.03	7.10	2.91	4.11	13.95	56.15	30.91	285.47	0.5193	866.1	670.0
68	0.00	1.17	0.00	0.69	19.15	57.06	31.82	294.59	0.5499	699.0	543.3
69	0.00	1.26	0.00	0.75	19.81	57.01	31.78	295.76	0.5522	748.0	551.9
70	0.00	1.08	0.00	0.64	20.23	56.84	31.60	296.57	0.5519	614.0	510.8
71	0.00	2.34	0.00	1.34	13.99	55.61	30.37	285.70	0.5117	919.0	789.1
72	0.00	2.07	0.00	1.20	16.32	55.62	30.38	290.16	0.5190	892.0	708.5
73	0.00	0.81	0.00	0.48	21.41	56.51	31.27	298.78	0.5535	648.0	571.0
74	0.00	1.35	0.00	0.79	20.78	55.49	30.26	298.32	0.5372	797.0	660.7
75	0.00	1.08	0.00	0.62	15.47	54.46	29.22	289.03	0.4997	801.0	585.2
76	0.00	1.08	0.00	0.63	21.99	54.82	29.59	300.85	0.5353	850.0	683.6
77	0.00	1.89	0.00	1.09	21.93	52.99	27.75	302.08	0.5118	709.0	432.2
78	0.00	1.44	0.00	0.79	19.58	48.57	23.33	301.35	0.4387	793.0	643.9

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
