SDO HMI 2011-08-24 12:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.61 | 20.41 | 1.54 | 12.56 | 7.22 | 348.69 | -36.55 | 87.33 | 0.5924 | -350.0 | -363.1 | |
|
previous
or next observation for the same group /

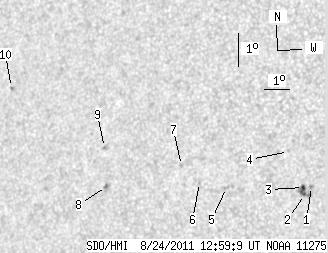

back to the solar disc SDO HMI 2011-08-24 12:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.00 | 7.18 | 352.36 | -32.88 | 87.60 | 0.5411 | -748.0 | -576.7 | |
| 1.17 | 7.28 | 0.69 | 4.29 | 6.92 | 352.13 | -33.11 | 88.06 | 0.5447 | -834.6 | -800.0 | |
| 1.44 | -2.00 | 0.85 | -2.00 | 7.13 | 352.07 | -33.16 | 87.67 | 0.5454 | -709.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 8.18 | 351.43 | -33.81 | 85.73 | 0.5544 | -543.0 | -494.8 | |
| 0.00 | 2.16 | 0.00 | 1.32 | 6.94 | 349.23 | -36.01 | 87.83 | 0.5862 | -597.0 | -487.1 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 7.01 | 348.19 | -37.05 | 87.63 | 0.6007 | -603.0 | -483.5 | |
| 0.00 | 1.17 | 0.00 | 0.73 | 7.48 | 347.45 | -37.78 | 86.82 | 0.6106 | -555.0 | -459.6 | |
| 0.00 | 3.41 | 0.00 | 2.22 | 6.62 | 344.57 | -40.66 | 88.00 | 0.6499 | -641.0 | -371.6 | |
| 0.00 | 1.98 | 0.00 | 1.29 | 7.79 | 344.37 | -40.87 | 86.18 | 0.6521 | 768.0 | 595.1 | |
| 0.00 | 0.81 | 0.00 | 0.56 | 9.28 | 340.25 | -44.99 | 83.86 | 0.7041 | 759.0 | 671.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
