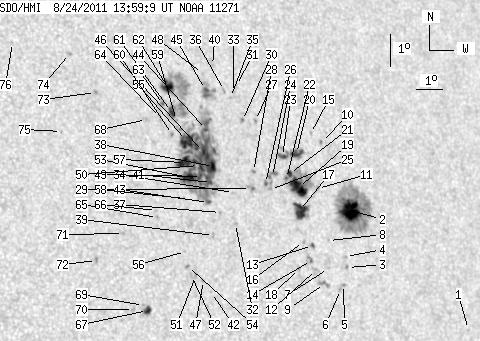

SDO HMI 2011-08-24 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 142.83 | 662.23 | 88.64 | 410.26 | 17.93 | 60.61 | 35.92 | 290.90 | 0.5996 | -75.9 | -15.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-24 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.37 | 12.47 | 68.52 | 43.83 | 280.76 | 0.6906 | -486.0 | -436.8 | |
| 24.07 | 133.28 | 15.57 | 86.31 | 16.46 | 64.47 | 39.78 | 287.33 | 0.6451 | -1130.1 | -269.9 | |
| 0.00 | 1.26 | 0.00 | 0.80 | 14.74 | 63.94 | 39.26 | 284.77 | 0.6352 | 723.0 | 577.5 | |
| 0.00 | 1.44 | 0.00 | 0.92 | 15.08 | 63.94 | 39.25 | 285.30 | 0.6357 | 548.0 | 502.2 | |
| 0.00 | 1.62 | 0.00 | 1.03 | 14.23 | 63.68 | 38.99 | 284.02 | 0.6309 | 688.0 | 596.1 | |
| 0.00 | 1.62 | 0.00 | 1.03 | 14.09 | 63.53 | 38.84 | 283.82 | 0.6287 | 796.0 | 590.8 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 14.76 | 63.18 | 38.50 | 284.95 | 0.6253 | -197.0 | -256.1 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 15.61 | 63.37 | 38.68 | 286.26 | 0.6293 | -251.0 | -245.1 | |
| 0.00 | 5.21 | 0.00 | 3.28 | 14.32 | 62.93 | 38.25 | 284.29 | 0.6212 | -729.0 | -585.9 | |
| 0.00 | 1.53 | 0.00 | 0.98 | 18.62 | 63.83 | 39.15 | 290.82 | 0.6423 | 559.0 | 369.7 | |
| 0.00 | 2.07 | 0.00 | 1.32 | 17.23 | 63.30 | 38.62 | 288.82 | 0.6320 | -372.0 | -307.5 | |
| 0.00 | 2.78 | 0.00 | 1.75 | 14.77 | 62.70 | 38.02 | 285.06 | 0.6190 | -744.0 | -521.8 | |
| 1.44 | 1.80 | 0.91 | 1.13 | 15.51 | 62.70 | 38.02 | 286.25 | 0.6204 | -659.1 | -728.2 | |
| 1.08 | 4.49 | 0.68 | 2.82 | 15.06 | 62.56 | 37.88 | 285.55 | 0.6177 | -755.3 | -708.6 | |
| 0.00 | 1.44 | 0.00 | 0.92 | 18.93 | 63.46 | 38.78 | 291.40 | 0.6386 | 266.0 | 392.4 | |
| 0.00 | 1.44 | 0.00 | 0.90 | 15.66 | 62.37 | 37.69 | 286.56 | 0.6164 | -636.0 | -547.2 | |
| 13.65 | 19.85 | 8.59 | 12.51 | 16.61 | 62.43 | 37.74 | 288.08 | 0.6193 | -932.9 | -532.7 | |
| 0.00 | 1.98 | 0.00 | 1.23 | 14.85 | 62.04 | 37.36 | 285.33 | 0.6104 | -733.0 | -584.1 | |
| 17.60 | 53.98 | 11.12 | 34.13 | 17.32 | 62.56 | 37.87 | 289.16 | 0.6227 | -980.6 | -293.5 | |
| 7.01 | 19.04 | 4.45 | 12.06 | 18.36 | 62.74 | 38.05 | 290.75 | 0.6278 | -680.4 | -508.1 | |
| 2.78 | -19.00 | 1.76 | -19.00 | 17.77 | 62.30 | 37.62 | 289.95 | 0.6206 | -852.3 | 999999 | |
| 1.71 | -19.00 | 1.07 | -19.00 | 17.62 | 62.15 | 37.46 | 289.77 | 0.6182 | -969.3 | 999999 | |
| 3.95 | -20.00 | 2.49 | -20.00 | 18.31 | 62.16 | 37.47 | 290.86 | 0.6203 | -872.6 | 999999 | |
| 0.00 | 6.65 | 0.00 | 4.15 | 17.73 | 61.61 | 36.93 | 290.10 | 0.6116 | -429.0 | -766.9 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 17.33 | 61.44 | 36.75 | 289.53 | 0.6083 | -776.0 | -714.7 | |
| 1.44 | 2.16 | 0.89 | 1.34 | 17.53 | 61.29 | 36.60 | 289.89 | 0.6068 | -914.7 | -825.4 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 19.49 | 61.38 | 36.69 | 293.00 | 0.6141 | -764.0 | -600.3 | |
| 0.00 | 1.71 | 0.00 | 1.06 | 17.93 | 60.91 | 36.22 | 290.67 | 0.6031 | -873.0 | -752.0 | |
| 0.00 | 3.41 | 0.00 | 2.11 | 17.42 | 60.67 | 35.98 | 289.91 | 0.5984 | -709.0 | -721.9 | |
| 0.00 | 1.17 | 0.00 | 0.73 | 19.53 | 60.87 | 36.18 | 293.25 | 0.6078 | -882.0 | -806.2 | |
| 0.00 | 1.17 | 0.00 | 0.73 | 20.62 | 60.92 | 36.23 | 294.97 | 0.6125 | -605.0 | -470.1 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 16.39 | 59.86 | 35.17 | 288.47 | 0.5848 | 250.0 | 248.7 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 20.41 | 60.74 | 36.06 | 294.72 | 0.6095 | -646.0 | -575.5 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 17.34 | 59.98 | 35.30 | 290.02 | 0.5892 | -561.0 | -478.6 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 20.27 | 60.58 | 35.90 | 294.55 | 0.6069 | -801.0 | -614.2 | |
| 0.00 | 1.80 | 0.00 | 1.12 | 20.50 | 60.40 | 35.72 | 295.00 | 0.6056 | -754.0 | -668.3 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 16.76 | 59.36 | 34.67 | 289.27 | 0.5792 | 537.0 | 341.2 | |
| 4.13 | 246.98 | 2.52 | 149.78 | 18.19 | 59.40 | 34.71 | 291.65 | 0.5842 | -698.8 | 260.2 | |
| 0.00 | 1.89 | 0.00 | 1.14 | 16.08 | 58.95 | 34.26 | 288.23 | 0.5717 | 492.0 | 530.1 | |
| 0.00 | 1.62 | 0.00 | 1.00 | 21.30 | 60.15 | 35.46 | 296.39 | 0.6056 | -616.0 | -477.4 | |
| 1.17 | -38.00 | 0.71 | -38.00 | 17.70 | 59.21 | 34.52 | 290.91 | 0.5801 | -363.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 14.35 | 58.55 | 33.87 | 285.33 | 0.5620 | 621.0 | 382.3 | |
| 1.35 | -38.00 | 0.81 | -38.00 | 17.10 | 58.96 | 34.28 | 289.97 | 0.5749 | -374.1 | 999999 | |
| 1.35 | -38.00 | 0.82 | -38.00 | 19.34 | 59.40 | 34.71 | 293.56 | 0.5883 | 513.3 | 999999 | |
| 2.25 | 15.90 | 1.38 | 9.80 | 20.58 | 59.67 | 34.98 | 295.45 | 0.5967 | -957.5 | -678.2 | |
| 2.07 | -38.00 | 1.26 | -38.00 | 18.67 | 59.12 | 34.43 | 292.57 | 0.5823 | 725.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 14.73 | 58.32 | 33.63 | 286.08 | 0.5596 | 695.0 | 544.5 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 21.08 | 59.69 | 35.00 | 296.25 | 0.5989 | -718.0 | -574.3 | |
| 0.72 | -38.00 | 0.43 | -38.00 | 17.91 | 58.87 | 34.18 | 291.39 | 0.5763 | 775.9 | 999999 | |
| 4.49 | -38.00 | 2.72 | -38.00 | 18.26 | 58.83 | 34.14 | 291.99 | 0.5770 | 638.3 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.39 | 14.88 | 58.04 | 33.36 | 286.41 | 0.5561 | 582.0 | 513.0 | |
| 0.00 | 1.71 | 0.00 | 1.01 | 14.92 | 57.90 | 33.21 | 286.52 | 0.5542 | 730.0 | 611.1 | |
| 6.29 | -38.00 | 3.78 | -38.00 | 17.91 | 58.37 | 33.68 | 291.59 | 0.5697 | 1072.9 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.80 | 15.20 | 57.80 | 33.11 | 287.06 | 0.5536 | 845.0 | 718.9 | |
| 13.56 | -38.00 | 8.21 | -38.00 | 19.06 | 58.55 | 33.86 | 293.45 | 0.5763 | 901.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 15.66 | 57.81 | 33.12 | 287.88 | 0.5549 | 684.0 | 543.5 | |
| 10.87 | -38.00 | 6.54 | -38.00 | 18.38 | 58.32 | 33.63 | 292.42 | 0.5707 | 995.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 17.28 | 58.08 | 33.40 | 290.62 | 0.5637 | 757.0 | 588.6 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 19.70 | 58.31 | 33.63 | 294.63 | 0.5757 | 666.0 | 528.8 | |
| 0.00 | 1.35 | 0.00 | 0.81 | 19.28 | 58.06 | 33.37 | 294.04 | 0.5707 | 848.0 | 741.7 | |
| 5.39 | 21.91 | 3.26 | 13.28 | 19.99 | 58.19 | 33.50 | 295.17 | 0.5754 | 837.4 | 83.4 | |
| 9.16 | 48.95 | 5.56 | 29.80 | 20.77 | 58.23 | 33.54 | 296.45 | 0.5792 | 865.8 | -33.5 | |
| 0.99 | 3.14 | 0.60 | 1.90 | 20.22 | 57.94 | 33.25 | 295.69 | 0.5731 | 707.8 | 438.5 | |
| 0.00 | 2.69 | 0.00 | 1.62 | 19.83 | 57.73 | 33.04 | 295.13 | 0.5687 | 700.0 | 665.8 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 16.77 | 56.96 | 32.28 | 290.16 | 0.5468 | 766.0 | 641.9 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 16.98 | 56.97 | 32.28 | 290.54 | 0.5476 | 578.0 | 503.0 | |
| 4.31 | 6.65 | 2.51 | 3.87 | 13.95 | 56.11 | 31.42 | 285.31 | 0.5266 | 840.1 | 507.4 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 19.80 | 57.18 | 32.50 | 295.36 | 0.5615 | 777.0 | 643.8 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 14.12 | 55.99 | 31.30 | 285.65 | 0.5253 | 830.0 | 739.4 | |
| 0.00 | 1.80 | 0.00 | 1.04 | 14.02 | 55.61 | 30.92 | 285.58 | 0.5196 | 952.0 | 781.2 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 16.35 | 55.62 | 30.94 | 289.97 | 0.5269 | 835.0 | 692.5 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 15.59 | 54.50 | 29.82 | 289.00 | 0.5086 | 720.0 | 675.1 | |
| 0.00 | 1.89 | 0.00 | 1.11 | 20.75 | 55.46 | 30.78 | 297.95 | 0.5437 | 758.0 | 614.3 | |
| 0.00 | 2.34 | 0.00 | 1.37 | 22.02 | 54.77 | 30.09 | 300.57 | 0.5418 | 581.0 | 474.2 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 19.62 | 53.95 | 29.26 | 296.86 | 0.5182 | 688.0 | 508.8 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 22.48 | 52.74 | 28.05 | 302.82 | 0.5191 | 740.0 | 549.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
