SDO HMI 2011-08-24 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.48 | 0.00 | 12.75 | 18.62 | 357.69 | -26.99 | 63.06 | 0.4815 | -420.8 | -304.5 | |
|
previous
or next observation for the same group /

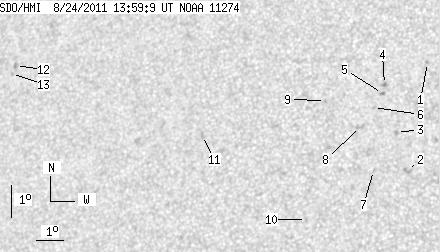

back to the solar disc SDO HMI 2011-08-24 13:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.64 | 20.64 | 1.88 | -22.81 | 55.99 | 0.4394 | -847.0 | -627.2 | |
| 0.00 | 3.77 | 0.00 | 2.06 | 17.27 | 1.67 | -23.01 | 63.31 | 0.4195 | -590.0 | -613.0 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 18.42 | 1.13 | -23.55 | 61.28 | 0.4341 | -969.0 | -775.6 | |
| 0.00 | 2.07 | 0.00 | 1.15 | 19.89 | 0.49 | -24.20 | 58.83 | 0.4524 | -839.0 | -636.2 | |
| 0.00 | 1.80 | 0.00 | 1.00 | 19.60 | 0.46 | -24.23 | 59.42 | 0.4508 | -909.0 | -722.5 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 19.16 | 0.21 | -24.47 | 60.54 | 0.4512 | -808.0 | -591.4 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 17.22 | 0.50 | -24.18 | 64.38 | 0.4358 | -760.0 | -602.4 | |
| 0.00 | 2.69 | 0.00 | 1.50 | 18.55 | 359.85 | -24.83 | 62.09 | 0.4525 | -495.0 | -554.8 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 19.29 | 358.49 | -26.20 | 61.67 | 0.4754 | -626.0 | -594.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 15.60 | 358.39 | -26.30 | 69.24 | 0.4582 | -639.0 | -469.2 | |
| 0.00 | 2.34 | 0.00 | 1.36 | 17.96 | 354.25 | -30.43 | 66.83 | 0.5262 | 730.0 | 663.7 | |
| 0.00 | 2.25 | 0.00 | 1.43 | 19.64 | 346.60 | -38.09 | 67.27 | 0.6321 | 661.0 | 526.9 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 19.38 | 346.51 | -38.18 | 67.70 | 0.6325 | 621.0 | 521.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
