groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11271 153.86 637.61 95.87 397.69 18.00 60.62 36.48 290.84 0.6070 -23.7 -9.4


previous   or   next   observation for the same group / back to the solar disc

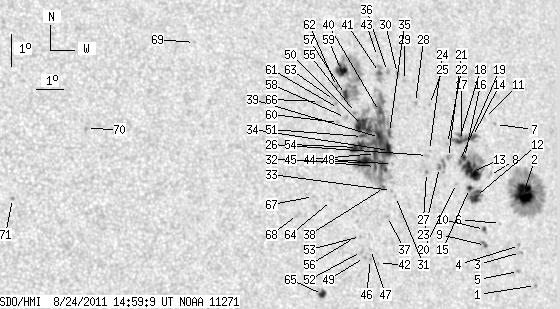

SDO HMI 2011-08-24 14:59:09 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.26 0.00 0.81 13.65 64.30 40.17 282.92 0.6454 -714.0 -628.4
2 24.07 134.69 15.69 87.94 16.48 64.45 40.32 287.24 0.6519 -1126.8 -253.5
3 0.00 2.24 0.00 1.45 14.70 63.91 39.78 284.61 0.6418 647.0 515.3
4 0.00 1.26 0.00 0.81 14.91 63.92 39.78 284.94 0.6422 762.0 641.8
5 0.00 1.80 0.00 1.15 14.13 63.71 39.57 283.76 0.6383 725.0 590.5
6 0.00 1.08 0.00 0.69 15.64 63.31 39.17 286.19 0.6357 -559.0 -334.1
7 0.00 1.17 0.00 0.76 18.67 63.87 39.74 290.72 0.6498 601.0 469.0
8 0.00 2.42 0.00 1.56 17.13 63.22 39.08 288.54 0.6377 -134.0 -212.1
9 0.45 3.05 0.28 1.93 15.02 62.56 38.43 285.37 0.6248 -735.8 -705.5
10 0.99 2.87 0.63 1.82 15.50 62.63 38.49 286.13 0.6266 -721.1 -537.8
11 0.00 1.98 0.00 1.28 18.92 63.49 39.35 291.21 0.6457 570.0 365.8
12 8.71 19.13 5.53 12.14 16.54 62.50 38.37 287.79 0.6272 -879.4 -580.9
13 19.31 51.54 12.28 32.83 17.31 62.56 38.43 288.98 0.6298 -921.8 -290.7
14 4.13 19.75 2.65 12.60 18.38 62.84 38.71 290.57 0.6361 -609.1 -560.2
15 2.07 -12.00 1.31 -12.00 16.80 62.32 38.19 288.25 0.6254 -872.9 999999
16 2.33 -13.00 1.48 -13.00 17.76 62.35 38.22 289.75 0.6283 -873.1 999999
17 3.59 -14.00 2.29 -14.00 18.29 62.37 38.23 290.57 0.6299 -931.5 999999
18 1.35 -14.00 0.86 -14.00 18.44 62.37 38.23 290.82 0.6303 -644.8 999999
19 1.17 -13.00 0.74 -13.00 17.65 62.12 37.99 289.65 0.6251 -959.7 999999
20 0.00 1.17 0.00 0.74 16.99 61.84 37.71 288.68 0.6197 -715.0 -592.6
21 0.00 2.96 0.00 1.87 17.80 61.72 37.58 290.02 0.6203 -914.0 -720.2
22 0.00 0.99 0.00 0.62 18.23 61.79 37.65 290.68 0.6224 -799.0 -673.5
23 1.26 6.73 0.79 4.22 17.52 61.29 37.15 289.70 0.6140 -936.7 -774.5
24 0.00 1.08 0.00 0.67 18.07 61.02 36.89 290.67 0.6121 -621.0 -524.7
25 0.00 0.63 0.00 0.40 19.48 61.39 37.25 292.78 0.6212 -682.0 -512.9
26 0.00 2.07 0.00 1.29 17.92 60.91 36.77 290.47 0.6102 -834.0 -723.7
27 0.00 1.26 0.00 0.78 17.41 60.74 36.61 289.69 0.6066 -957.0 -861.9
28 0.00 1.26 0.00 0.79 19.58 60.85 36.71 293.14 0.6147 -878.0 -789.5
29 0.00 1.26 0.00 0.79 20.29 60.60 36.46 294.35 0.6141 -851.0 -623.3
30 0.36 1.44 0.22 0.90 20.53 60.38 36.25 294.81 0.6123 -740.0 -623.8
31 0.00 1.17 0.00 0.71 16.76 59.38 35.25 289.06 0.5868 539.0 362.1
32 0.00 0.99 0.00 0.61 17.77 59.49 35.35 290.71 0.5913 -495.0 -348.5
33 0.00 1.08 0.00 0.66 16.95 59.27 35.13 289.42 0.5859 359.0 345.2
34 5.12 240.65 3.14 146.84 18.18 59.46 35.33 291.39 0.5923 -664.1 265.8
35 1.80 -34.00 1.11 -34.00 18.73 59.60 35.46 292.25 0.5958 -471.7 999999
36 0.00 2.07 0.00 1.29 20.61 60.00 35.87 295.11 0.6079 -863.0 -736.1
37 0.00 2.24 0.00 1.36 16.17 58.95 34.82 288.20 0.5794 747.0 455.4
38 1.17 -34.00 0.71 -34.00 17.06 59.02 34.89 289.69 0.5829 -488.9 999999
39 7.45 -34.00 4.56 -34.00 18.60 59.17 35.04 292.21 0.5899 564.5 999999
40 3.59 -34.00 2.21 -34.00 19.40 59.37 35.23 293.44 0.5953 391.0 999999
41 1.71 9.97 1.06 6.18 20.60 59.68 35.55 295.24 0.6038 -956.3 -613.1
42 0.00 1.17 0.00 0.70 14.76 58.34 34.20 285.96 0.5675 698.0 512.5
43 0.00 1.08 0.00 0.67 21.10 59.74 35.60 296.01 0.6065 -752.0 -576.0
44 4.04 -34.00 2.46 -34.00 18.12 58.91 34.77 291.51 0.5848 720.9 999999
45 1.44 -34.00 0.87 -34.00 17.72 58.82 34.68 290.88 0.5823 570.0 999999
46 0.00 1.35 0.00 0.81 14.90 58.06 33.92 286.28 0.5640 646.0 468.4
47 0.00 0.99 0.00 0.59 15.20 58.11 33.98 286.80 0.5655 621.0 508.5
48 10.15 -34.00 6.15 -34.00 17.90 58.47 34.33 291.31 0.5783 959.4 999999
49 0.00 1.35 0.00 0.80 14.98 57.84 33.71 286.48 0.5613 788.0 682.1
50 16.43 -34.00 10.01 -34.00 19.02 58.61 34.47 293.12 0.5840 850.6 999999
51 1.89 -34.00 1.15 -34.00 18.68 58.53 34.39 292.59 0.5818 853.3 999999
52 0.00 2.24 0.00 1.34 15.17 57.77 33.63 286.84 0.5606 875.0 641.1
53 0.00 1.17 0.00 0.70 15.63 57.81 33.68 287.63 0.5625 632.0 506.8
54 10.69 -34.00 6.47 -34.00 18.35 58.26 34.13 292.16 0.5771 984.1 999999
55 0.00 1.44 0.00 0.87 19.43 58.43 34.30 293.89 0.5834 725.0 629.6
56 0.00 1.35 0.00 0.80 15.61 57.58 33.45 287.68 0.5593 527.0 441.8
57 4.31 74.71 2.62 45.69 20.01 58.19 34.05 294.96 0.5825 878.2 -11.5
58 0.00 2.24 0.00 1.36 19.30 58.01 33.88 293.86 0.5775 865.0 679.3
59 9.97 -57.00 6.08 -57.00 20.77 58.22 34.09 296.18 0.5861 878.8 999999
60 0.00 1.89 0.00 1.14 19.17 57.71 33.58 293.77 0.5730 171.0 159.2
61 0.00 1.35 0.00 0.81 19.60 57.81 33.68 294.44 0.5760 689.0 585.2
62 0.00 2.07 0.00 1.25 20.28 57.90 33.77 295.54 0.5800 769.0 652.1
63 0.00 3.50 0.00 2.12 19.86 57.72 33.59 294.92 0.5759 650.0 626.2
64 0.00 1.17 0.00 0.69 16.79 56.94 32.81 290.00 0.5541 727.0 530.7
65 4.31 5.12 2.52 3.00 13.95 56.11 31.97 285.14 0.5344 829.1 565.6
66 0.00 2.16 0.00 1.30 19.86 57.14 33.01 295.21 0.5684 712.0 639.2
67 0.00 0.99 0.00 0.58 16.96 56.29 32.16 290.55 0.5459 612.0 498.5
68 0.00 2.96 0.00 1.73 16.45 55.60 31.47 289.91 0.5346 652.0 617.2
69 0.00 0.99 0.00 0.57 21.97 52.89 28.76 301.40 0.5248 558.0 557.9
70 0.00 1.89 0.00 1.05 19.50 48.50 24.37 300.25 0.4521 820.0 648.7
71 0.00 1.17 0.00 0.63 17.46 45.64 21.51 298.48 0.3996 861.0 662.3


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
