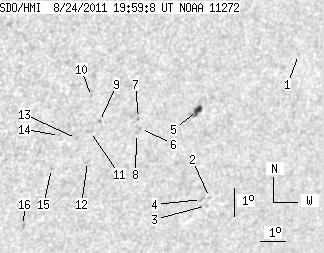

SDO HMI 2011-08-24 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.74 | 26.23 | 3.89 | 17.60 | -21.72 | 53.03 | 31.66 | 226.36 | 0.6755 | -99.2 | -172.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-24 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.63 | -19.19 | 58.35 | 36.99 | 233.64 | 0.7079 | 603.0 | 492.0 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -23.91 | 56.12 | 34.75 | 226.53 | 0.7204 | 405.0 | 358.6 | |
| 0.00 | 1.26 | 0.00 | 0.90 | -24.19 | 56.09 | 34.72 | 226.20 | 0.7221 | 496.0 | 405.3 | |
| 0.00 | 1.88 | 0.00 | 1.34 | -23.96 | 55.81 | 34.45 | 226.24 | 0.7180 | 645.0 | 595.6 | |
| 5.74 | 8.08 | 3.89 | 5.47 | -20.81 | 54.78 | 33.41 | 228.97 | 0.6846 | 791.2 | 579.7 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -21.28 | 52.69 | 31.33 | 226.65 | 0.6686 | -534.0 | -482.0 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -20.93 | 52.54 | 31.17 | 226.92 | 0.6642 | -611.0 | -538.0 | |
| 0.00 | 0.72 | 0.00 | 0.48 | -21.44 | 52.58 | 31.22 | 226.36 | 0.6689 | -611.0 | -490.0 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -20.93 | 51.07 | 29.70 | 225.57 | 0.6503 | -707.0 | -638.3 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -20.05 | 50.58 | 29.22 | 226.16 | 0.6380 | -679.0 | -560.4 | |
| 0.00 | 2.42 | 0.00 | 1.58 | -21.26 | 50.80 | 29.44 | 224.94 | 0.6506 | -563.0 | -508.6 | |
| 0.00 | 1.88 | 0.00 | 1.24 | -22.30 | 50.93 | 29.56 | 223.87 | 0.6609 | -464.0 | -424.8 | |
| 0.00 | 1.26 | 0.00 | 0.82 | -21.47 | 50.32 | 28.96 | 224.25 | 0.6481 | -698.0 | -552.2 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -21.32 | 49.66 | 28.30 | 223.77 | 0.6407 | -753.0 | -624.0 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -22.46 | 49.61 | 28.25 | 222.43 | 0.6506 | -671.0 | -595.5 | |
| 0.00 | 1.71 | 0.00 | 1.13 | -24.41 | 49.02 | 27.65 | 219.72 | 0.6636 | -809.0 | -638.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
