SDO HMI 2011-08-24 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 15.80 | 0.31 | 13.37 | 16.28 | 326.76 | -54.61 | 74.95 | 0.8118 | 74.7 | 348.0 | |
|
previous
or next observation for the same group /

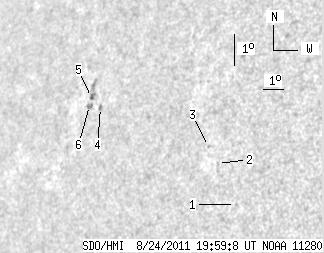

back to the solar disc SDO HMI 2011-08-24 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.20 | 13.99 | 333.96 | -47.41 | 77.40 | 0.7343 | -607.0 | -551.3 | |
| 0.00 | 1.08 | 0.00 | 0.80 | 15.15 | 332.78 | -48.59 | 75.93 | 0.7486 | -536.0 | -398.4 | |
| 0.00 | 0.99 | 0.00 | 0.74 | 15.62 | 332.19 | -49.17 | 75.35 | 0.7555 | -384.0 | -352.3 | |
| 0.00 | 2.42 | 0.00 | 2.07 | 16.29 | 326.38 | -54.99 | 74.97 | 0.8162 | 678.0 | 532.9 | |
| 0.36 | 7.90 | 0.31 | 6.84 | 16.54 | 325.77 | -55.60 | 74.69 | 0.8222 | 608.0 | 433.5 | |
| 0.00 | 3.14 | 0.00 | 2.72 | 16.29 | 325.76 | -55.61 | 75.00 | 0.8221 | 524.0 | 478.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
