groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11271 132.28 605.91 86.31 394.32 17.93 60.49 39.68 289.70 0.6472 -131.4 6.7


previous   or   next   observation for the same group / back to the solar disc

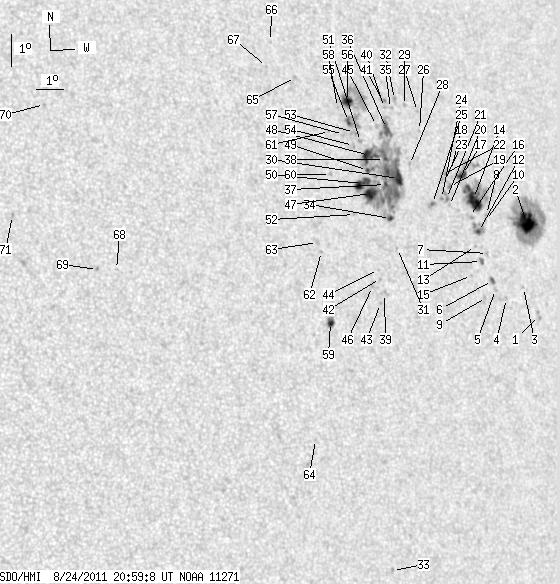

SDO HMI 2011-08-24 20:59:08 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 3.32 0.00 2.26 13.64 64.34 43.53 282.47 0.6878 -483.0 -508.9
2 25.85 119.02 17.73 81.77 16.50 64.56 43.74 286.57 0.6940 -1028.9 -244.5
3 0.00 0.81 0.00 0.55 14.54 63.91 43.10 283.84 0.6834 733.0 609.8
4 0.00 1.80 0.00 1.20 14.27 63.12 42.30 283.54 0.6732 -428.0 -381.6
5 0.00 1.08 0.00 0.72 14.58 62.72 41.91 284.05 0.6687 -648.0 -410.5
6 1.44 2.96 0.95 1.97 14.86 62.66 41.85 284.48 0.6683 -769.3 -598.1
7 0.00 1.97 0.00 1.31 15.69 62.66 41.84 285.73 0.6695 -612.0 -431.8
8 0.00 1.08 0.00 0.72 16.88 62.93 42.12 287.43 0.6749 -455.0 -356.2
9 0.00 0.45 0.00 0.30 14.36 62.30 41.48 283.80 0.6630 -550.0 -591.0
10 0.00 1.17 0.00 0.78 16.70 62.84 42.02 287.19 0.6735 -451.0 -404.0
11 2.42 2.87 1.60 1.90 15.47 62.35 41.54 285.45 0.6653 -713.5 -594.6
12 2.33 12.21 1.55 8.11 16.39 62.46 41.64 286.80 0.6682 -865.2 -660.4
13 0.00 0.81 0.00 0.53 15.95 62.21 41.40 286.18 0.6644 -758.0 -616.9
14 24.14 52.33 16.08 34.93 17.41 62.52 41.71 288.30 0.6710 -869.8 -184.1
15 0.00 0.90 0.00 0.59 15.08 61.84 41.02 284.95 0.6582 -651.0 -547.6
16 0.00 3.32 0.00 2.20 16.88 62.20 41.39 287.58 0.6660 -847.0 -727.5
17 6.10 16.78 4.06 11.20 18.18 62.27 41.46 289.49 0.6696 -841.6 -452.7
18 0.00 0.63 0.00 0.42 18.31 61.80 40.98 289.81 0.6641 -666.0 -523.1
19 0.00 1.97 0.00 1.30 17.85 61.63 40.81 289.17 0.6609 -771.0 -657.8
20 0.00 0.81 0.00 0.53 17.28 61.47 40.65 288.34 0.6577 -644.0 -513.3
21 1.08 5.39 0.71 3.53 17.50 61.40 40.59 288.69 0.6574 -696.9 -743.1
22 0.00 2.51 0.00 1.65 18.27 61.53 40.72 289.81 0.6607 -856.0 -715.8
23 0.00 1.97 0.00 1.30 18.05 61.47 40.66 289.51 0.6595 -693.0 -608.2
24 0.00 1.26 0.00 0.82 17.51 61.20 40.38 288.77 0.6548 -951.0 -876.4
25 1.53 4.31 0.99 2.80 17.39 60.79 39.98 288.68 0.6495 -859.9 -765.4
26 0.00 0.72 0.00 0.47 19.66 60.89 40.07 292.08 0.6565 -821.0 -623.6
27 0.00 1.17 0.00 0.77 20.25 60.98 40.17 292.93 0.6594 -546.0 -490.8
28 0.00 0.90 0.00 0.58 18.65 60.18 39.36 290.77 0.6450 -546.0 -466.1
29 0.00 1.62 0.00 1.06 20.48 60.50 39.69 293.42 0.6543 -739.0 -591.8
30 6.19 246.38 3.97 156.80 18.26 59.61 38.80 290.33 0.6369 -508.2 277.3
31 0.00 0.45 0.00 0.28 16.13 59.05 38.23 287.15 0.6244 461.0 377.4
32 0.00 2.87 0.00 1.87 20.69 60.15 39.34 293.86 0.6507 -801.0 -596.5
33 0.00 1.71 0.00 1.05 6.40 57.36 36.55 271.27 0.5941 -693.0 -554.4
34 2.24 -30.00 1.42 -30.00 17.06 58.98 38.17 288.64 0.6258 -474.7 999999
35 0.00 1.80 0.00 1.16 20.43 59.90 39.09 293.55 0.6468 -589.0 -622.5
36 6.19 -30.00 3.99 -30.00 19.83 59.56 38.74 292.76 0.6407 -534.2 999999
37 2.24 -30.00 1.43 -30.00 18.11 59.04 38.23 290.28 0.6293 666.2 999999
38 0.99 -30.00 0.63 -30.00 18.88 59.21 38.39 291.42 0.6335 627.8 999999
39 0.00 3.59 0.00 2.24 14.80 58.24 37.43 285.20 0.6111 390.0 479.4
40 0.00 1.26 0.00 0.81 20.48 59.67 38.85 293.71 0.6441 -154.0 -268.3
41 0.00 2.33 0.00 1.51 20.70 59.65 38.84 294.05 0.6447 -807.0 -728.4
42 0.00 0.72 0.00 0.45 15.26 58.18 37.37 285.97 0.6112 597.0 542.5
43 0.00 1.08 0.00 0.67 14.50 58.02 37.21 284.77 0.6077 687.0 594.8
44 0.00 0.81 0.00 0.50 15.54 58.16 37.34 286.43 0.6115 500.0 396.6
45 0.00 2.06 0.00 1.32 19.95 59.18 38.36 293.08 0.6364 -139.0 -167.0
46 0.00 1.26 0.00 0.78 15.04 57.82 37.00 285.70 0.6060 792.0 658.2
47 10.68 -30.00 6.73 -30.00 17.88 58.38 37.57 290.12 0.6202 950.0 999999
48 13.01 -30.00 8.26 -30.00 19.05 58.64 37.83 291.87 0.6269 799.8 999999
49 1.80 -30.00 1.13 -30.00 18.59 58.44 37.63 291.23 0.6230 813.7 999999
50 11.58 -30.00 7.28 -30.00 18.21 58.14 37.33 290.72 0.6180 870.4 999999
51 0.00 2.42 0.00 1.53 19.50 58.40 37.58 292.66 0.6253 784.0 543.4
52 0.00 1.44 0.00 0.89 17.28 57.59 36.78 289.41 0.6084 684.0 543.6
53 0.00 4.31 0.00 2.73 19.80 58.23 37.42 293.18 0.6242 616.0 520.1
54 0.00 1.97 0.00 1.25 19.40 58.09 37.27 292.62 0.6210 597.0 473.8
55 2.78 58.16 1.76 37.02 20.15 58.09 37.28 293.79 0.6236 809.4 52.6
56 5.65 -55.00 3.59 -55.00 20.77 58.23 37.41 294.70 0.6275 874.7 999999
57 0.00 1.71 0.00 1.07 19.77 57.78 36.97 293.30 0.6184 770.0 670.5
58 0.00 1.44 0.00 0.91 20.61 57.77 36.96 294.64 0.6214 491.0 446.9
59 4.04 6.46 2.45 3.92 14.06 56.00 35.19 284.47 0.5795 841.6 622.4
60 0.00 1.26 0.00 0.78 18.57 56.95 36.14 291.71 0.6039 653.0 541.5
61 0.00 0.99 0.00 0.62 19.90 57.25 36.44 293.72 0.6123 710.0 583.0
62 0.00 1.44 0.00 0.88 16.24 56.07 35.26 288.17 0.5855 665.0 518.3
63 0.00 2.33 0.00 1.42 16.53 55.98 35.16 288.68 0.5850 325.0 409.8
64 0.00 0.72 0.00 0.43 10.56 54.90 34.09 278.50 0.5593 676.0 543.5
65 0.00 1.97 0.00 1.23 21.66 56.37 35.56 296.88 0.6082 781.0 557.0
66 0.00 0.90 0.00 0.56 22.84 55.71 34.90 299.06 0.6054 639.0 557.9
67 0.00 0.99 0.00 0.61 22.08 55.33 34.52 298.04 0.5972 730.0 618.5
68 0.00 1.08 0.00 0.61 16.16 48.46 27.64 291.14 0.4797 -536.0 -454.3
69 0.00 0.81 0.00 0.45 16.20 47.79 26.97 291.58 0.4703 800.0 665.9
70 0.00 0.90 0.00 0.51 21.38 46.77 25.96 302.49 0.4851 765.0 620.0
71 0.00 2.15 0.00 1.19 18.00 45.06 24.25 297.21 0.4410 751.0 475.7


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
