SDO HMI 2011-08-24 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.61 | 583.52 | 81.93 | 382.62 | 17.89 | 60.49 | 40.23 | 289.50 | 0.6537 | -118.2 | -6.0 | |
|
previous
or next observation for the same group /

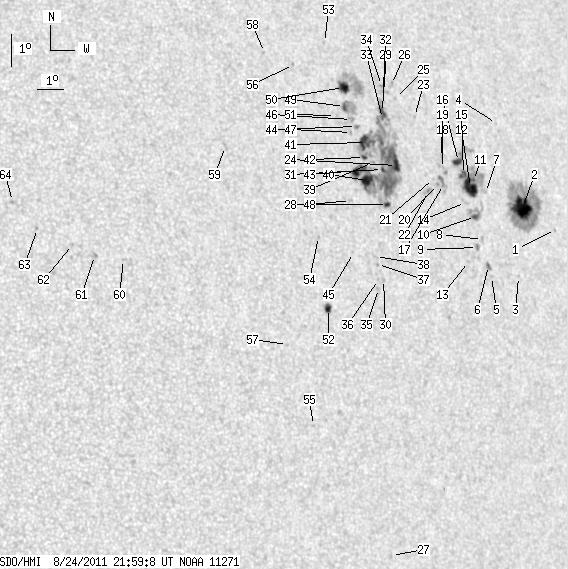

back to the solar disc SDO HMI 2011-08-24 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.38 | 15.73 | 65.83 | 45.57 | 285.20 | 0.7145 | -468.0 | -361.2 | |
| 27.65 | 124.05 | 19.14 | 85.96 | 16.52 | 64.58 | 44.32 | 286.50 | 0.7009 | -995.9 | -236.6 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 14.44 | 63.85 | 43.59 | 283.62 | 0.6893 | 617.0 | 558.3 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 19.17 | 64.25 | 43.99 | 290.31 | 0.7019 | 615.0 | 452.5 | |
| 0.00 | 1.17 | 0.00 | 0.78 | 14.54 | 62.71 | 42.45 | 283.91 | 0.6754 | -597.0 | -488.3 | |
| 1.97 | 2.87 | 1.32 | 1.92 | 14.88 | 62.67 | 42.40 | 284.43 | 0.6753 | -615.0 | -592.8 | |
| 0.00 | 1.08 | 0.00 | 0.73 | 17.11 | 63.13 | 42.86 | 287.60 | 0.6844 | 75.0 | 71.8 | |
| 0.00 | 2.51 | 0.00 | 1.68 | 15.69 | 62.61 | 42.35 | 285.63 | 0.6758 | -595.0 | -437.1 | |
| 0.00 | 3.14 | 0.00 | 2.10 | 15.46 | 62.34 | 42.08 | 285.34 | 0.6721 | -848.0 | -670.8 | |
| 3.32 | 15.71 | 2.23 | 10.54 | 16.41 | 62.50 | 42.24 | 286.71 | 0.6756 | -787.5 | -541.5 | |
| 0.72 | 45.24 | 0.48 | 30.46 | 17.51 | 62.72 | 42.46 | 288.28 | 0.6803 | -464.4 | -191.6 | |
| 15.17 | -11.00 | 10.19 | -11.00 | 17.31 | 62.54 | 42.27 | 288.02 | 0.6776 | -894.9 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.71 | 15.07 | 61.86 | 41.60 | 284.83 | 0.6655 | -763.0 | -615.8 | |
| 0.00 | 2.42 | 0.00 | 1.62 | 16.87 | 62.20 | 41.94 | 287.45 | 0.6727 | -847.0 | -702.3 | |
| 4.58 | -11.00 | 3.07 | -11.00 | 17.73 | 62.35 | 42.09 | 288.67 | 0.6763 | -834.2 | 999999 | |
| 4.94 | 14.63 | 3.31 | 9.84 | 18.14 | 62.26 | 42.00 | 289.30 | 0.6760 | -826.5 | -457.1 | |
| 0.00 | 7.00 | 0.00 | 4.63 | 17.49 | 61.43 | 41.17 | 288.53 | 0.6645 | -824.0 | -677.3 | |
| 0.00 | 4.76 | 0.00 | 3.15 | 17.98 | 61.53 | 41.27 | 289.24 | 0.6668 | -493.0 | -598.8 | |
| 0.00 | 1.35 | 0.00 | 0.89 | 18.32 | 61.58 | 41.32 | 289.73 | 0.6682 | -771.0 | -702.9 | |
| 0.00 | 0.99 | 0.00 | 0.65 | 17.51 | 61.19 | 40.92 | 288.62 | 0.6615 | -868.0 | -854.6 | |
| 0.00 | 0.90 | 0.00 | 0.59 | 17.70 | 61.07 | 40.81 | 288.94 | 0.6605 | -661.0 | -504.0 | |
| 0.00 | 4.85 | 0.00 | 3.17 | 17.32 | 60.76 | 40.50 | 288.45 | 0.6558 | -939.0 | -769.4 | |
| 0.00 | 0.99 | 0.00 | 0.65 | 19.66 | 60.84 | 40.58 | 291.92 | 0.6626 | -758.0 | -630.9 | |
| 5.21 | 238.95 | 3.37 | 153.20 | 18.22 | 59.67 | 39.40 | 290.09 | 0.6443 | -552.1 | 271.8 | |
| 0.00 | 1.44 | 0.00 | 0.94 | 20.27 | 60.22 | 39.96 | 293.02 | 0.6569 | -771.0 | -620.8 | |
| 0.00 | 3.05 | 0.00 | 2.00 | 20.72 | 60.19 | 39.93 | 293.69 | 0.6579 | -627.0 | -599.5 | |
| 0.00 | 1.62 | 0.00 | 1.00 | 6.42 | 57.42 | 37.16 | 271.35 | 0.6026 | -731.0 | -568.8 | |
| 2.33 | -24.00 | 1.49 | -24.00 | 17.05 | 58.99 | 38.73 | 288.48 | 0.6330 | -510.2 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.58 | 20.52 | 59.84 | 39.57 | 293.52 | 0.6530 | -577.0 | -504.0 | |
| 0.00 | 1.80 | 0.00 | 1.13 | 14.78 | 58.32 | 38.06 | 285.04 | 0.6194 | 517.0 | 450.8 | |
| 1.71 | -24.00 | 1.09 | -24.00 | 18.14 | 59.07 | 38.81 | 290.14 | 0.6366 | 549.3 | 999999 | |
| 5.39 | -24.00 | 3.49 | -24.00 | 19.88 | 59.56 | 39.30 | 292.66 | 0.6476 | -561.5 | 999999 | |
| 0.99 | -24.00 | 0.64 | -24.00 | 19.70 | 59.50 | 39.24 | 292.39 | 0.6464 | 327.5 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.88 | 20.72 | 59.77 | 39.51 | 293.83 | 0.6528 | -869.0 | -757.7 | |
| 0.00 | 2.06 | 0.00 | 1.29 | 14.53 | 58.07 | 37.81 | 284.68 | 0.6156 | 735.0 | 476.6 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 14.80 | 58.12 | 37.86 | 285.11 | 0.6169 | 704.0 | 600.6 | |
| 0.00 | 1.26 | 0.00 | 0.79 | 15.26 | 58.18 | 37.92 | 285.83 | 0.6185 | 612.0 | 510.2 | |
| 0.00 | 1.80 | 0.00 | 1.13 | 15.51 | 58.15 | 37.89 | 286.24 | 0.6186 | 488.0 | 379.4 | |
| 0.00 | 1.89 | 0.00 | 1.20 | 18.38 | 58.72 | 38.46 | 290.62 | 0.6329 | 420.0 | 372.0 | |
| 10.41 | -24.00 | 6.61 | -24.00 | 17.84 | 58.38 | 38.12 | 289.89 | 0.6271 | 904.3 | 999999 | |
| 12.84 | -24.00 | 8.20 | -24.00 | 19.01 | 58.61 | 38.34 | 291.64 | 0.6333 | 801.2 | 999999 | |
| 1.80 | -24.00 | 1.14 | -24.00 | 18.56 | 58.44 | 38.18 | 290.98 | 0.6299 | 721.3 | 999999 | |
| 9.78 | -24.00 | 6.19 | -24.00 | 18.17 | 58.14 | 37.88 | 290.48 | 0.6250 | 869.6 | 999999 | |
| 0.00 | 2.51 | 0.00 | 1.60 | 19.53 | 58.38 | 38.12 | 292.52 | 0.6320 | 759.0 | 560.3 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 15.69 | 57.32 | 37.06 | 286.74 | 0.6080 | 596.0 | 508.0 | |
| 0.00 | 2.87 | 0.00 | 1.83 | 19.76 | 58.24 | 37.98 | 292.92 | 0.6310 | 556.0 | 597.0 | |
| 0.00 | 1.62 | 0.00 | 1.03 | 19.36 | 58.13 | 37.87 | 292.34 | 0.6284 | 736.0 | 572.3 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 17.28 | 57.56 | 37.30 | 289.25 | 0.6151 | 577.0 | 459.6 | |
| 2.87 | 15.26 | 1.83 | 9.74 | 20.18 | 58.07 | 37.81 | 293.63 | 0.6303 | 789.2 | 182.6 | |
| 8.35 | 41.56 | 5.34 | 26.68 | 20.77 | 58.20 | 37.94 | 294.48 | 0.6340 | 810.6 | -60.7 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 19.93 | 57.63 | 37.37 | 293.40 | 0.6241 | 226.0 | 366.8 | |
| 4.58 | 5.74 | 2.80 | 3.51 | 14.06 | 56.02 | 35.76 | 284.33 | 0.5873 | 773.3 | 601.2 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 22.22 | 57.86 | 37.60 | 296.82 | 0.6352 | 571.0 | 450.9 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 16.27 | 56.07 | 35.81 | 288.04 | 0.5928 | 604.0 | 542.8 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 10.55 | 54.91 | 34.65 | 278.44 | 0.5672 | 655.0 | 525.7 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 21.62 | 56.41 | 36.15 | 296.54 | 0.6153 | 642.0 | 531.8 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 13.07 | 54.29 | 34.03 | 282.99 | 0.5616 | 624.0 | 512.3 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 22.07 | 55.37 | 35.11 | 297.74 | 0.6045 | 685.0 | 655.6 | |
| 0.00 | 3.14 | 0.00 | 1.88 | 19.26 | 53.13 | 32.87 | 294.23 | 0.5640 | 595.0 | 334.3 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 16.03 | 48.74 | 28.48 | 290.43 | 0.4910 | -819.0 | -656.0 | |
| 0.00 | 2.24 | 0.00 | 1.26 | 16.20 | 47.73 | 27.47 | 291.31 | 0.4774 | 602.0 | 571.6 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 16.58 | 47.01 | 26.74 | 292.50 | 0.4687 | -686.0 | -541.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 17.14 | 45.85 | 25.59 | 294.38 | 0.4551 | -746.0 | -557.8 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 18.01 | 45.10 | 24.84 | 296.75 | 0.4493 | 743.0 | 530.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
