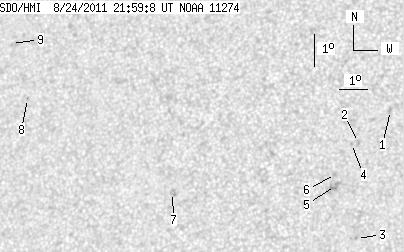

SDO HMI 2011-08-24 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.49 | 0.00 | 10.66 | 18.95 | 357.97 | -22.29 | 58.61 | 0.4204 | -295.8 | -290.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-24 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.24 | 0.00 | 1.21 | 20.76 | 1.44 | -18.82 | 51.07 | 0.3894 | -795.0 | -636.1 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 19.73 | 0.48 | -19.78 | 54.56 | 0.3927 | -862.0 | -701.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 16.77 | 0.76 | -19.50 | 61.17 | 0.3664 | -795.0 | -750.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 19.69 | 0.24 | -20.02 | 54.94 | 0.3954 | -762.0 | -576.1 | |
| 0.00 | 5.57 | 0.00 | 2.99 | 18.37 | 359.86 | -20.40 | 58.34 | 0.3903 | -655.0 | -723.7 | |
| 0.00 | 2.60 | 0.00 | 1.40 | 18.71 | 359.82 | -20.44 | 57.61 | 0.3934 | -844.0 | -564.2 | |
| 0.00 | 3.77 | 0.00 | 2.11 | 17.89 | 354.27 | -25.99 | 64.34 | 0.4645 | 669.0 | 652.8 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 20.49 | 348.45 | -31.81 | 63.14 | 0.5557 | 800.0 | 671.4 | |
| 0.00 | 0.63 | 0.00 | 0.38 | 22.16 | 347.42 | -32.85 | 60.93 | 0.5769 | 582.0 | 546.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
