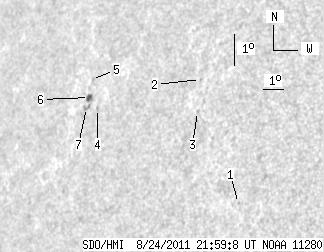

SDO HMI 2011-08-24 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.50 | 12.94 | 2.95 | 10.57 | 16.39 | 327.14 | -53.12 | 74.71 | 0.7970 | 171.0 | 226.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-24 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.57 | 13.98 | 334.04 | -46.22 | 77.32 | 0.7204 | -638.0 | -532.3 | |
| 0.00 | 1.08 | 0.00 | 0.81 | 17.57 | 331.14 | -49.12 | 72.79 | 0.7569 | -445.0 | -307.5 | |
| 0.00 | 1.08 | 0.00 | 0.81 | 16.59 | 331.34 | -48.92 | 74.06 | 0.7536 | -547.0 | -378.5 | |
| 0.00 | 1.35 | 0.00 | 1.12 | 16.22 | 326.39 | -53.87 | 74.99 | 0.8052 | 606.0 | 547.8 | |
| 0.00 | 0.90 | 0.00 | 0.76 | 17.06 | 325.71 | -54.55 | 74.00 | 0.8124 | 333.0 | 370.0 | |
| 3.50 | 4.49 | 2.95 | 3.78 | 16.51 | 325.83 | -54.43 | 74.67 | 0.8108 | 592.6 | 528.5 | |
| 0.00 | 3.23 | 0.00 | 2.72 | 16.19 | 325.80 | -54.46 | 75.06 | 0.8110 | 473.0 | 461.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
