groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11271 117.50 558.56 77.75 369.80 17.89 60.62 40.91 289.30 0.6622 -108.3 -14.0


previous   or   next   observation for the same group / back to the solar disc

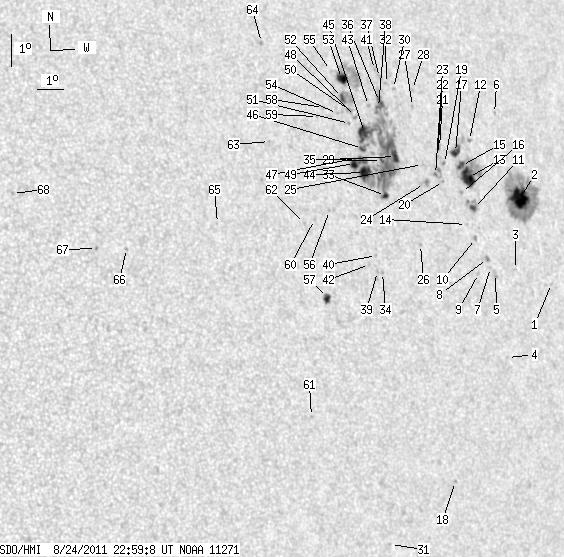

SDO HMI 2011-08-24 22:59:08 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.17 0.00 0.82 13.82 65.26 45.55 282.52 0.7124 -545.0 -482.5
2 21.46 122.90 14.99 85.97 16.51 64.56 44.85 286.39 0.7072 -999.0 -259.2
3 0.00 1.17 0.00 0.80 14.37 63.80 44.09 283.46 0.6954 567.0 516.0
4 0.00 0.90 0.00 0.61 11.75 62.88 43.17 279.72 0.6818 -601.0 -438.4
5 0.00 3.68 0.00 2.49 14.32 62.92 43.21 283.49 0.6846 -493.0 -373.5
6 0.00 0.63 0.00 0.44 19.19 64.29 44.59 290.20 0.7087 326.0 430.3
7 0.00 0.63 0.00 0.42 14.52 62.76 43.05 283.80 0.6827 -577.0 -454.7
8 0.00 2.15 0.00 1.46 14.81 62.70 42.99 284.23 0.6824 -720.0 -605.2
9 0.00 1.53 0.00 1.02 14.38 62.21 42.50 283.67 0.6758 -700.0 -557.4
10 0.00 1.80 0.00 1.21 15.45 62.34 42.64 285.23 0.6789 -812.0 -718.2
11 3.05 10.05 2.06 6.79 16.37 62.50 42.79 286.54 0.6822 -793.5 -613.7
12 0.00 0.99 0.00 0.68 18.45 62.94 43.23 289.46 0.6914 -609.0 -501.1
13 18.58 50.36 12.59 34.18 17.33 62.55 42.84 287.93 0.6846 -825.0 -201.4
14 0.00 1.26 0.00 0.84 15.91 62.08 42.37 285.94 0.6763 -544.0 -516.9
15 4.04 -13.00 2.73 -13.00 17.72 62.36 42.66 288.53 0.6830 -805.7 999999
16 0.00 1.53 0.00 1.03 16.90 62.13 42.42 287.38 0.6786 -810.0 -668.2
17 5.21 12.03 3.52 8.15 18.13 62.23 42.52 289.16 0.6823 -786.4 -476.4
18 0.00 1.17 0.00 0.76 8.18 60.16 40.45 274.37 0.6463 -599.0 -524.5
19 0.00 1.26 0.00 0.84 17.84 61.66 41.96 288.86 0.6748 -734.0 -633.6
20 0.00 0.81 0.00 0.54 17.29 61.47 41.76 288.10 0.6713 -664.0 -613.9
21 0.00 2.60 0.00 1.74 18.34 61.60 41.89 289.61 0.6751 -760.0 -602.8
22 0.00 1.26 0.00 0.84 18.07 61.43 41.72 289.26 0.6725 -790.0 -615.9
23 1.44 7.90 0.95 5.26 17.53 61.19 41.48 288.52 0.6684 -781.0 -669.5
24 0.00 5.03 0.00 3.31 17.29 60.66 40.95 288.29 0.6614 -699.0 -742.9
25 0.00 0.90 0.00 0.59 17.88 60.74 41.03 289.14 0.6636 -644.0 -636.4
26 0.00 1.26 0.00 0.82 15.45 60.03 40.32 285.63 0.6499 601.0 451.4
27 0.00 1.53 0.00 1.01 19.68 60.85 41.14 291.78 0.6694 -892.0 -648.7
28 0.00 1.53 0.00 1.02 20.20 61.02 41.31 292.50 0.6728 -664.0 -480.2
29 5.92 221.46 3.86 143.10 18.21 59.70 39.99 289.91 0.6515 -528.4 276.7
30 0.00 1.17 0.00 0.77 20.30 60.23 40.52 292.87 0.6637 -741.0 -654.5
31 0.00 1.35 0.00 0.84 6.47 57.41 37.70 271.48 0.6101 -733.0 -545.2
32 0.00 1.71 0.00 1.12 20.47 59.99 40.28 293.21 0.6613 -746.0 -606.7
33 2.06 -29.00 1.33 -29.00 17.05 58.98 39.27 288.33 0.6397 -465.2 999999
34 0.00 1.35 0.00 0.85 14.72 58.32 38.61 284.82 0.6265 537.0 483.9
35 0.90 -29.00 0.58 -29.00 18.13 59.09 39.38 289.96 0.6438 730.1 999999
36 4.94 -29.00 3.23 -29.00 19.94 59.53 39.82 292.57 0.6542 -576.0 999999
37 0.00 2.69 0.00 1.77 20.68 59.76 40.05 293.59 0.6592 -528.0 -647.6
38 1.97 -29.00 1.29 -29.00 19.76 59.43 39.72 292.33 0.6525 312.7 999999
39 0.00 1.44 0.00 0.91 14.76 58.12 38.42 284.93 0.6241 710.0 575.4
40 0.00 0.90 0.00 0.57 15.25 58.19 38.48 285.69 0.6258 674.0 543.2
41 0.00 0.99 0.00 0.65 20.94 59.63 39.92 294.02 0.6585 -732.0 -587.7
42 0.00 0.63 0.00 0.40 15.00 57.85 38.14 285.36 0.6210 714.0 620.6
43 0.00 1.44 0.00 0.93 19.85 59.04 39.33 292.59 0.6480 -385.0 -323.0
44 10.14 -29.00 6.48 -29.00 17.81 58.31 38.60 289.69 0.6331 898.6 999999
45 13.82 -29.00 8.90 -29.00 19.04 58.64 38.93 291.48 0.6406 759.4 999999
46 3.32 -29.00 2.13 -29.00 18.55 58.42 38.71 290.80 0.6366 748.6 999999
47 0.36 -29.00 0.23 -29.00 18.29 58.23 38.52 290.45 0.6334 678.2 999999
48 0.00 2.78 0.00 1.79 19.55 58.41 38.70 292.35 0.6394 625.0 467.6
49 4.76 -29.00 3.03 -29.00 18.12 57.98 38.27 290.26 0.6298 1015.7 999999
50 0.00 3.14 0.00 2.02 19.76 58.22 38.51 292.72 0.6376 682.0 585.0
51 0.00 0.99 0.00 0.63 19.36 58.11 38.40 292.15 0.6350 716.0 609.9
52 2.96 14.54 1.90 9.34 20.18 58.06 38.35 293.42 0.6369 740.8 202.5
53 7.63 41.29 4.91 26.68 20.76 58.19 38.48 294.27 0.6405 777.0 -4.4
54 0.00 1.08 0.00 0.69 19.70 57.71 38.01 292.81 0.6311 703.0 633.1
55 0.00 1.08 0.00 0.69 21.04 57.82 38.11 294.83 0.6370 409.0 381.0
56 0.00 0.99 0.00 0.62 16.75 56.65 36.94 288.49 0.6090 653.0 504.6
57 4.94 6.28 3.04 3.86 14.11 56.02 36.31 284.30 0.5949 768.2 555.8
58 0.00 1.17 0.00 0.74 19.92 57.21 37.50 293.34 0.6255 545.0 494.7
59 0.00 1.26 0.00 0.79 19.66 56.89 37.18 293.05 0.6207 619.0 434.0
60 0.00 1.08 0.00 0.67 16.52 56.00 36.29 288.30 0.5999 654.0 540.1
61 0.00 0.90 0.00 0.54 10.55 54.85 35.14 278.39 0.5741 573.0 505.8
62 0.00 1.26 0.00 0.77 16.43 55.59 35.88 288.27 0.5942 605.0 487.5
63 0.00 0.90 0.00 0.55 19.03 54.81 35.10 292.84 0.5921 652.0 480.3
64 0.00 1.62 0.00 1.01 22.11 55.32 35.61 297.55 0.6106 770.0 628.2
65 0.00 0.72 0.00 0.43 16.64 52.30 32.59 289.78 0.5505 651.0 473.0
66 0.00 1.44 0.00 0.82 16.08 48.85 29.14 290.22 0.5006 -883.0 -681.7
67 0.00 1.44 0.00 0.81 16.14 47.78 28.07 290.87 0.4856 831.0 658.8
68 0.00 1.44 0.00 0.80 17.99 45.08 25.37 296.30 0.4564 700.0 499.4


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
