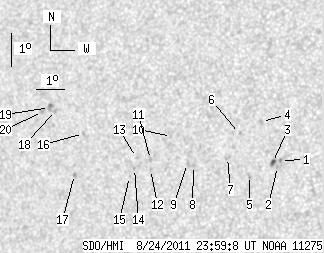

SDO HMI 2011-08-24 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.24 | 30.22 | 1.25 | 17.42 | 7.27 | 348.16 | -30.99 | 87.62 | 0.5126 | -505.1 | -285.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-24 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.75 | 7.12 | 352.33 | -26.82 | 88.13 | 0.4499 | -935.0 | -794.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 6.93 | 352.24 | -26.92 | 88.54 | 0.4514 | -1004.0 | -867.8 | |
| 2.24 | 2.96 | 1.25 | 1.65 | 7.04 | 352.06 | -27.09 | 88.28 | 0.4541 | -803.0 | -761.2 | |
| 0.00 | 1.80 | 0.00 | 1.00 | 8.26 | 351.60 | -27.56 | 85.59 | 0.4611 | -780.0 | -613.2 | |
| 0.00 | 1.98 | 0.00 | 1.10 | 6.61 | 351.30 | -27.86 | 89.17 | 0.4661 | -641.0 | -562.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 7.86 | 350.87 | -28.29 | 86.47 | 0.4723 | -689.0 | -580.7 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 7.11 | 350.50 | -28.65 | 88.04 | 0.4781 | -638.0 | -591.9 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 6.80 | 349.33 | -29.82 | 88.61 | 0.4960 | -691.0 | -510.9 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 6.84 | 349.12 | -30.04 | 88.49 | 0.4992 | -711.0 | -511.9 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 7.62 | 348.49 | -30.67 | 86.90 | 0.5083 | -613.0 | -474.5 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 6.88 | 347.80 | -31.36 | 88.32 | 0.5189 | -894.0 | -686.7 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 6.58 | 347.82 | -31.34 | 88.90 | 0.5188 | -619.0 | -490.4 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 6.91 | 347.30 | -31.86 | 88.22 | 0.5264 | -545.0 | -442.8 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 6.57 | 347.25 | -31.91 | 88.86 | 0.5273 | -723.0 | -597.3 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 6.32 | 347.09 | -32.07 | 89.33 | 0.5299 | -576.0 | -448.4 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 7.51 | 345.32 | -33.84 | 87.00 | 0.5550 | -690.0 | -504.1 | |
| 0.00 | 1.80 | 0.00 | 1.07 | 6.25 | 345.09 | -34.07 | 89.25 | 0.5591 | -837.0 | -689.5 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 8.13 | 344.22 | -34.94 | 85.85 | 0.5706 | 854.0 | 680.6 | |
| 0.00 | 3.41 | 0.00 | 2.06 | 8.21 | 343.98 | -35.17 | 85.72 | 0.5739 | 795.0 | 714.9 | |
| 0.00 | 1.62 | 0.00 | 0.98 | 8.07 | 343.74 | -35.42 | 85.95 | 0.5775 | 713.0 | 618.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
