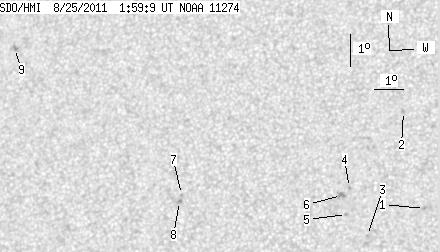

SDO HMI 2011-08-25 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.53 | 0.00 | 9.51 | 19.02 | 356.89 | -21.17 | 57.10 | 0.4045 | -287.8 | -188.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-08-25 01:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.75 | 17.85 | 2.57 | -15.49 | 52.95 | 0.3199 | -895.0 | -698.9 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 20.83 | 1.57 | -16.49 | 47.49 | 0.3615 | -877.0 | -628.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 16.96 | 0.76 | -17.29 | 58.01 | 0.3367 | -775.0 | -636.7 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 18.41 | 0.02 | -18.04 | 55.36 | 0.3587 | -852.0 | -611.1 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 17.58 | 0.00 | -18.06 | 57.43 | 0.3521 | -855.0 | -693.3 | |
| 0.00 | 4.94 | 0.00 | 2.62 | 18.16 | 359.77 | -18.28 | 56.31 | 0.3598 | -954.0 | -717.3 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 17.96 | 354.33 | -23.73 | 62.49 | 0.4334 | 723.0 | 604.2 | |
| 0.00 | 2.07 | 0.00 | 1.13 | 17.74 | 354.29 | -23.77 | 62.99 | 0.4326 | 1061.0 | 851.0 | |
| 0.00 | 3.23 | 0.00 | 1.91 | 22.16 | 347.47 | -30.59 | 59.59 | 0.5486 | 834.0 | 597.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
